SV2B Mouse Monoclonal Antibody [A4C1]
cat.: EM1902-40
Product Type: Mouse monoclonal IgG1, primary antibodies
Species reactivity: Human, Rat
Applications: WB, IF-Cell, IHC-P, FC
Clonality: Monoclonal
Clone number: A4C1
Form: Liquid
Storage condition: Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.
Storage buffer: 1*TBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.
Concentration: 2ug/ul
Purification: Protein G affinity purified.
Molecular weight: Predicted band size: 77 kDa.
Isotype: IgG1
Immunogen: Recombinant protein within human SV2B aa 400-600.
Positive control: Rat brain tissue lysates, PANC-1, F9, rat brain tissue, rat cerebellum tissue, A549.
Subcellular location: Cell junction, Cytoplasmic vesicle, Membrane, Synapse.
Recommended Dilutions:
  WB
  IF-Cell
  IHC-P
  FC
1:500-1:1,000
1:50-1:100
1:50-1:200
1:50-1:100
Uniprot #: SwissProt: Q7L1I2 Human
Alternative names: Synaptic vesicle protein 2B SV2B
Images

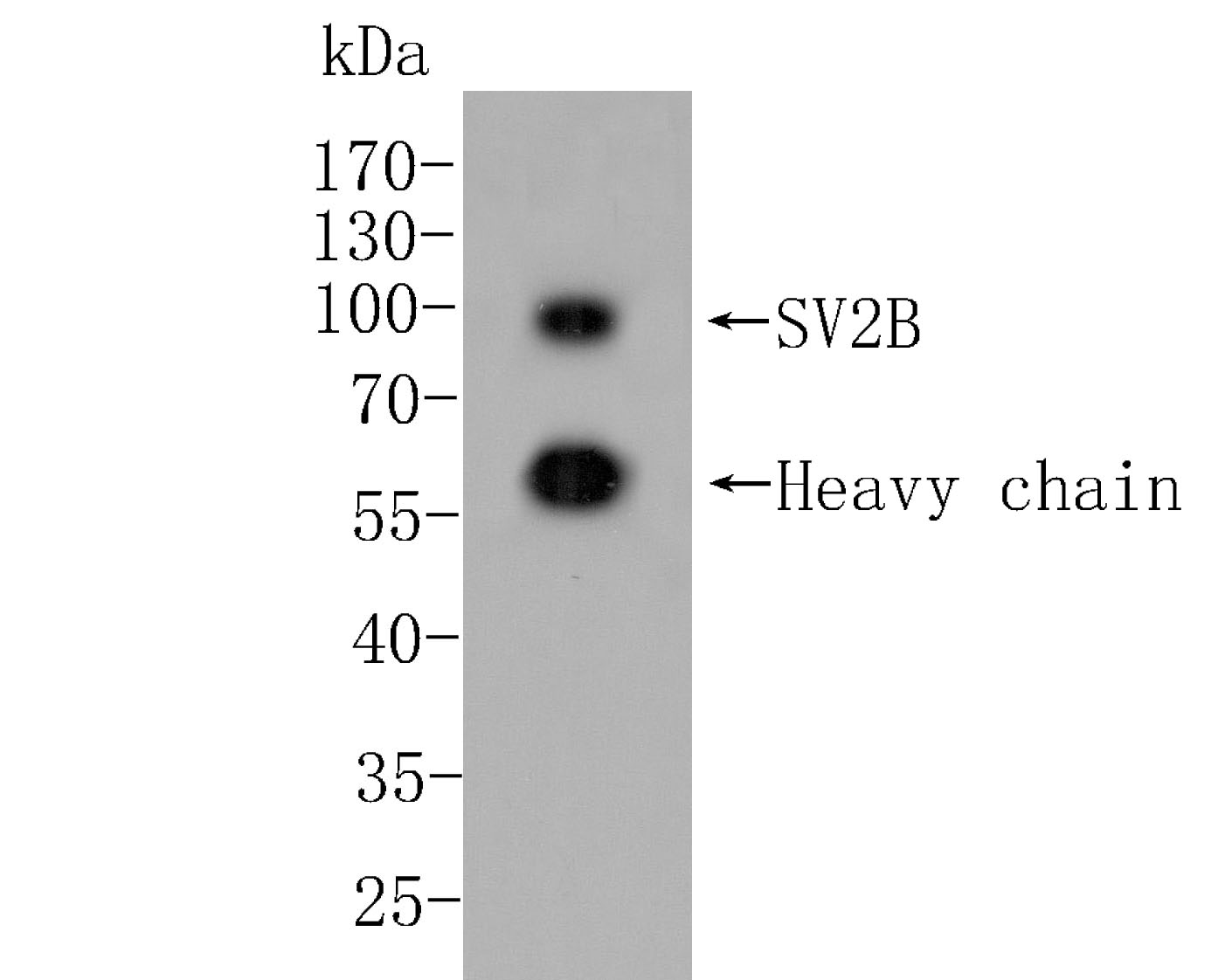

EM1902-40_1.jpg Fig1: Western blot analysis of SV2B on rat brain tissue lysate. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (EM1902-40, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1:5,000 dilution was used for 1 hour at room temperature.
EM1902-40_2.jpg Fig2: ICC staining of SV2B in PANC-1 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (EM1902-40, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Mouse IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).
EM1902-40_3.jpg Fig3: ICC staining of SV2B in F9 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (EM1902-40, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Mouse IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).
EM1902-40_4.jpg Fig4: Immunohistochemical analysis of paraffin-embedded rat brain tissue using anti-SV2B antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (EM1902-40, 1/100) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
EM1902-40_5.jpg Fig5: Immunohistochemical analysis of paraffin-embedded rat cerebellum tissue using anti-SV2B antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (EM1902-40, 1/100) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
EM1902-40_6.jpg Fig6: Flow cytometric analysis of SV2B was done on A549 cells. The cells were fixed, permeabilized and stained with the primary antibody (EM1902-40, 1/50) (red). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated Goat anti-Mouse IgG Secondary antibody at 1/1000 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
