TMEM248 Rabbit Polyclonal Antibody
cat.: ER1803-48
| Product Type: | Rabbit polyclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human, Rat, Mouse |
| Applications: | WB, IF-Cell, FC |
| Clonality: | Polyclonal |
| Form: | Liquid |
| Storage condition: | Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term. |
| Storage buffer: | 1*PBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide. |
| Concentration: | 1ug/ul |
| Purification: | Immunogen affinity purified. |
| Molecular weight: | Predicted band size: 35 kDa |
| Isotype: | IgG |
| Immunogen: | Synthetic peptide within Human TMEM248 aa 265-314 / 314. |
| Positive control: | K-562 cell lysate, SK-Br-3 cell lysate, A-172 cell lysate, HeLa cell lysate, PC-12 cell lysate, HUVEC, SH-SY-5Y, SiHa. |
| Subcellular location: | Membrane. |
| Recommended Dilutions:
WB IF-Cell FC |
1:1,000-1:5,000 1:50-1:200 1:50-1:100 |
| Uniprot #: | SwissProt: Q9NWD8 Human | Q3TBN1 Mouse | Q6AY76 Rat |
| Alternative names: | Transmembrane protein 248 TMEM248 C7orf42 |
Images
|
Fig1:
Western blot analysis of TMEM248 on different lysates with Rabbit anti-TMEM248 antibody (ER1803-48) at 1/1,000 dilution. Lane 1: K-562 cell lysate Lane 2: SK-Br-3 cell lysate Lane 3: A-172 cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 35 kDa Observed band size: 30 kDa Exposure time: 1 minute 16 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER1803-48) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|
Fig2:
Western blot analysis of TMEM248 on different lysates with Rabbit anti-TMEM248 antibody (ER1803-48) at 1/5,000 dilution. Lane 1: K-562 cell lysate (no heat) Lane 2: HeLa cell lysate (hot lysis) Lane 3: PC-12 cell lysate Notice: no heat means the lysate is not boiled. Lysates/proteins at 20 µg/Lane. Predicted band size: 35 kDa Observed band size: 30 kDa Exposure time: 1 minute 16 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER1803-48) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|
Fig3: ICC staining Tmem248 in HUVEC cells (green). The nuclear counter stain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS. |
|
Fig4: ICC staining Tmem248 in SH-SY-5Y cells (green). The nuclear counter stain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS. |
|
Fig5: ICC staining Tmem248 in SiHa cells (green). The nuclear counter stain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS. |
|

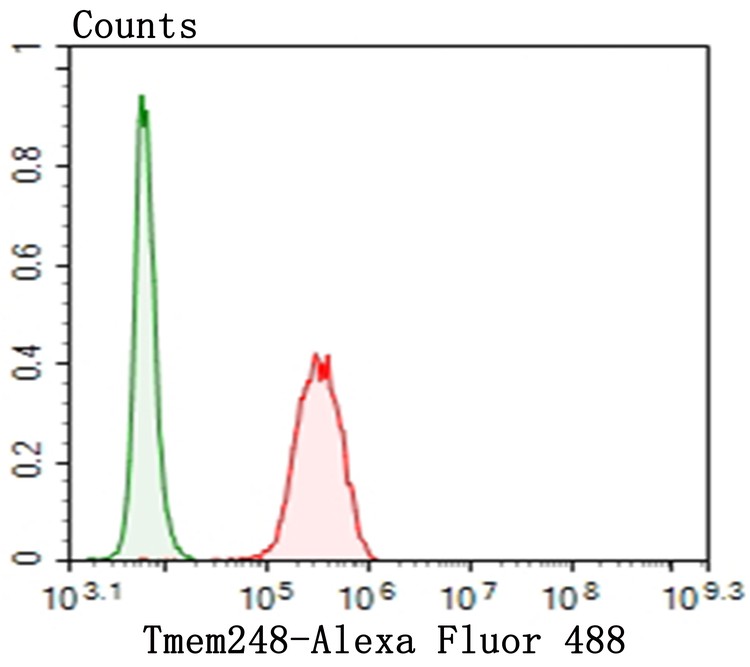

Fig6: Flow cytometric analysis of SH-SY-5Y cells with Tmem248 antibody at 1/100 dilution (red) compared with an unlabelled control (cells without incubation with primary antibody; green). Alexa Fluor 488-conjugated goat anti-rabbit IgG was used as the secondary antibody. |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
