KPTN Rabbit Polyclonal Antibody
cat.: ER2001-17
| Product Type: | Rabbit polyclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human, Mouse, Rat |
| Applications: | WB, IHC-P, IF-Cell, FC |
| Clonality: | Polyclonal |
| Form: | Liquid |
| Storage condition: | Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term. |
| Storage buffer: | 1*TBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide. |
| Concentration: | 1ug/ul |
| Purification: | Immunogen affinity purified. |
| Molecular weight: | Predicted band size: 48 kDa |
| Isotype: | IgG |
| Immunogen: | Synthetic peptide within N-terminal human KPTN. |
| Positive control: | HepG2 cell lysate, SH-SY5Y cell lysate, rat brain tissue lysate, human placenta tissue, mouse testis tissue, SH-SY5Y. |
| Subcellular location: | Lysosome membrane, lamellipodium, stereocilium. |
| Recommended Dilutions:
WB IHC-P IF-Cell FC |
1:500-1:2,000 1:50-1:200 1:250 1:1,000 |
| Uniprot #: | SwissProt: Q9Y664 Human | Q8VCX6 Mouse Entrez Gene: 308107 Rat |
| Alternative names: | 2E4 actin associated protein 2E4 actin binding protein Actin-associated protein 2E4 Kaptin Kptn KPTN protein KPTN_HUMAN |
Images
|
Fig1:
Western blot analysis of KPTN on different lysates with Rabbit anti-KPTN antibody (ER2001-17) at 1/1,000 dilution. Lane 1: SH-SY5Y (Human neuroblastoma cell) cell lysate Lane 2: Neuro-2a (Mouse brain neuroblastoma cell) cell lysate Lane 3: C6 (Rat glioma cell) cell lysate Lysates/proteins at 15 µg/Lane. Exposure time: 13 seconds; ECL: K1801 Blocking: 5% NFDM/TBST, 1 hour at room temperature Primary antibody: ER2001-17, 1/1,000 in primary antibody dilution buffer (K1803), overnight at 4 ℃ Secondary antibody: Goat anti-Rabbit IgG-HRP (HA1001), 1/50,000 in 5% NFDM/TBST, 1 hour at room temperature Predicted band size: 48 kDa Observed band size: 48 kDa |
|
Fig2: Immunohistochemical analysis of paraffin-embedded human placenta tissue using anti-KPTN antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER2001-17, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig3: Immunohistochemical analysis of paraffin-embedded mouse testis tissue using anti-KPTN antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER2001-17, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig4:
Immunocytochemistry analysis of SH-SY5Y cells labeling KPTN with Rabbit anti-KPTN antibody (ER2001-17) at 1/250 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-KPTN antibody (ER2001-17) at 1/250 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution. |
|

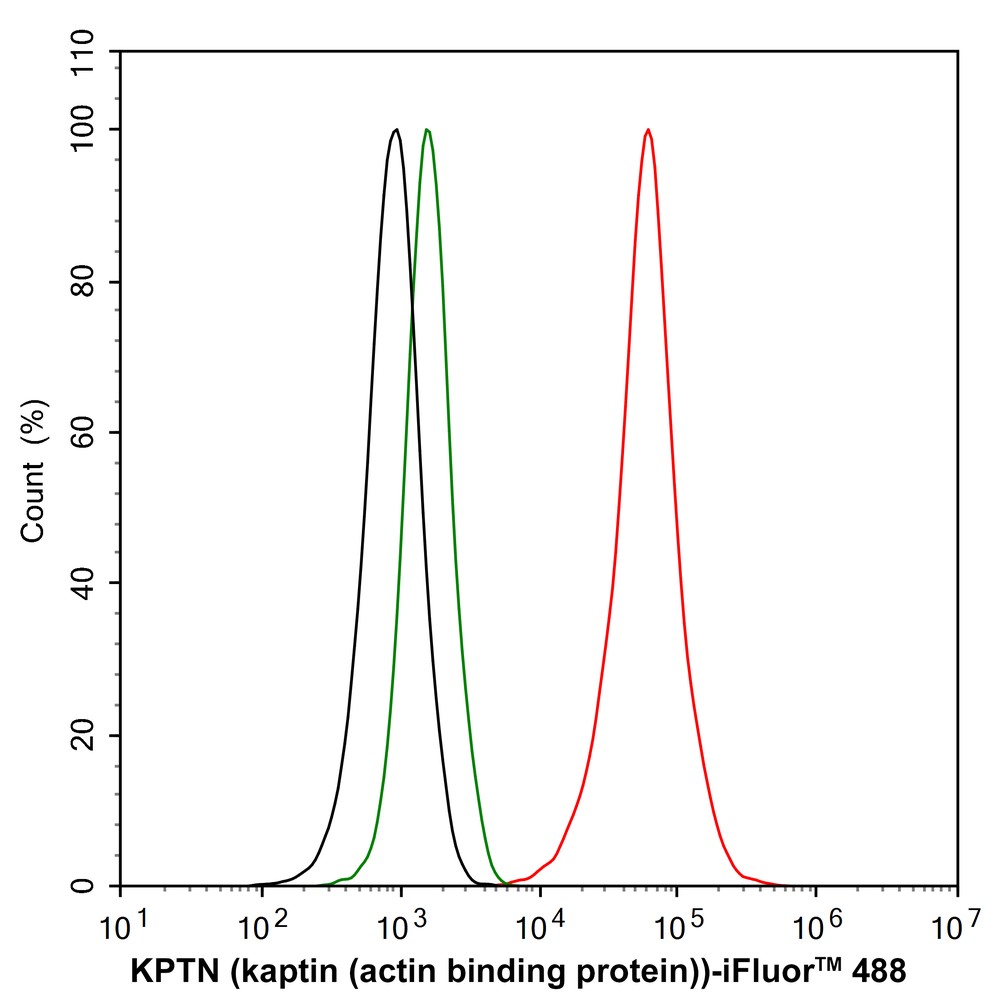

Fig5:
Flow cytometric analysis of SH-SY5Y cells labeling KPTN. Cells were fixed and permeabilized. Then stained with the primary antibody (ER2001-17, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black). |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
