ET7107-86

KDEL Recombinant Rabbit Monoclonal Antibody [JB42-04]

cat.: ET7107-86

Product Type:	Recombinant Rabbit monoclonal IgG, primary antibodies
Species reactivity:	Human, Mouse, Rat
Applications:	WB, IF-Cell, IF-Tissue, IHC-P, FC
Clonality:	Monoclonal
Clone number:	JB42-04

Form:	Liquid
Storage condition:	Store at +4℃ after thawing. Aliquot store at -20℃ or -80℃. Avoid repeated freeze / thaw cycles.
Storage buffer:	1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Concentration:	1ug/ul
Purification:	Protein A affinity purified.
Molecular weight:	Predicted band size: 25 kDa
Isotype:	IgG
Immunogen:	Synthetic peptide CSEKDEL.
Positive control:	Rat testis tissue lysate, human placenta tissue lysate, mouse testis tissue lysate, 293 cell lysate, A549, HepG2, 293T, human placenta tissue, human stomach carcinoma tissue, mouse small intestine tissue, rat epididymis tissue, human small intestine tissue.
Subcellular location:	Endoplasmic reticulum Membrane.
Recommended Dilutions: WB IF-Cell IF-Tissue IHC-P FC	1:500-1:2000 1:400-1:800 1:400-1:800 1:100-1:400 1:50-1:100
Alternative names:	ER lumen protein retaining receptor 1 ERD2.1 ERD21_HUMAN KDEL endoplasmic reticulum protein retention receptor 1 KDEL receptor 1 Kdelr1 Putative MAPK-activating protein PM23

Images

	Fig1: Western blot analysis of KDEL on different lysates with Rabbit anti-KDEL antibody (ET7107-86) at 1/1,000 dilution. Lane 1: A549 cell lysate Lane 2: HepG2 cell lysate Lane 3: AGS cell lysate Lane 4: NIH/3T3 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 25 kDa Observed band size: 48~94 kDa Exposure time: 1 minute; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET7107-86) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:50,000 dilution was used for 1 hour at room temperature.
	Fig2: Western blot analysis of KDEL on different lysates with Rabbit anti-KDEL antibody (ET7107-86) at 1/1,000 dilution. Lane 1: RAW264.7 cell lysate Lane 2: C6 cell lysate Lane 3: mouse E16.5 placenta tissue lysate Lane 4: rat placenta tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 185 kDa Observed band size: 200 kDa Exposure time: 24 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET7107-86) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:50,000 dilution was used for 1 hour at room temperature.
	Fig3: Immunohistochemical analysis of paraffin-embedded human placenta tissue using anti-KDEL antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (ET7107-86, 1/100) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
	Fig4: Immunohistochemical analysis of paraffin-embedded human small intestine tissue using anti-KDEL antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (ET7107-86, 1/400) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

	Fig5: Immunohistochemical analysis of paraffin-embedded rat epididymis tissue using anti-KDEL antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (ET7107-86, 1/400) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
	Fig6: Immunohistochemical analysis of paraffin-embedded human stomach carcinoma tissue using anti-KDEL antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (ET7107-86, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
	Fig7: Immunohistochemical analysis of paraffin-embedded mouse small intestine tissue using anti-KDEL antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (ET7107-86, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

	Fig9: Immunocytochemistry analysis of HeLa cells labeling KDEL with Rabbit anti-KDEL antibody (ET7107-86) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-KDEL antibody (ET7107-86) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.
	Fig10: Immunocytochemistry analysis of C6 cells labeling KDEL with Rabbit anti-KDEL antibody (ET7107-86) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-KDEL antibody (ET7107-86) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.
	Fig11: Flow cytometric analysis of A549 cells labeling KDEL. Cells were fixed and permeabilized. Then stained with the primary antibody (ET7107-86, 1μg/mL) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Fig12: Flow cytometric analysis of NIH3T3 cells labeling KDEL.

Cells were fixed and permeabilized. Then stained with the primary antibody (ET7107-86, 1μg/mL) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

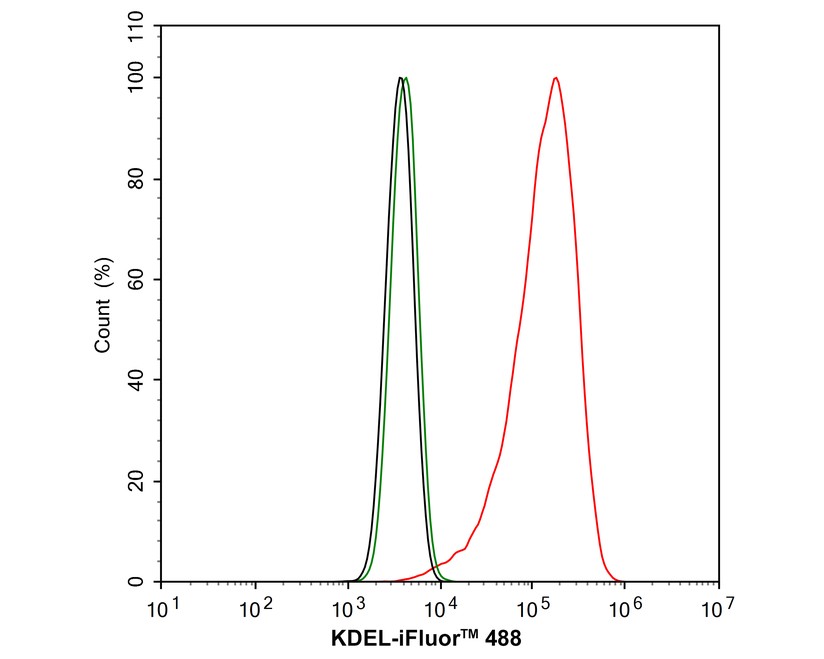

Fig13: Flow cytometric analysis of C6 cells labeling KDEL.

Cells were fixed and permeabilized. Then stained with the primary antibody (ET7107-86, 1μg/mL) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
