NDUFAF1 Recombinant Rabbit Monoclonal Antibody [JE47-18]
cat.: ET7109-54
Product Type: Recombinant Rabbit monoclonal IgG, primary antibodies
Species reactivity: Human
Applications: WB, IF-Cell, IHC-P, FC
Clonality: Monoclonal
Clone number: JE47-18
Form: Liquid
Storage condition: Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.
Storage buffer: 1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Concentration: 1ug/ul
Purification: Protein A affinity purified.
Molecular weight: Predicted band size: 38 kDa
Isotype: IgG
Immunogen: Recombinant protein within Human NDUFAF1 aa 1-190 / 327.
Positive control: K562 cell lysates, 293T, SKOV-3, human liver cancer tissue, human prostate cancer tissue, human kidney tissue, THP-1.
Subcellular location: Mitochondrion.
Recommended Dilutions:
  WB
  IF-Cell
  IHC-P
  FC
1:1,000
1:50-1:200
1:50-1:200
1:50-1:100
Uniprot #: SwissProt: Q9Y375 Human
Alternative names: CGI 65 CGI65 CIA30 CIA30_HUMAN Complex I intermediate associated protein 30 Complex I intermediate associated protein 30 mitochondrial Complex I intermediate-associated protein 30, mitochondrial NADH dehydrogenase (ubiquinone) 1 alpha subcomplex assembly factor 1 NADH dehydrogenase [ubiquinone] 1 alpha subcomplex assembly factor 1 NADH:ubiquinone oxidoreductase complex assembly factor 1 NDUFAF 1 Ndufaf1 antibod
Images

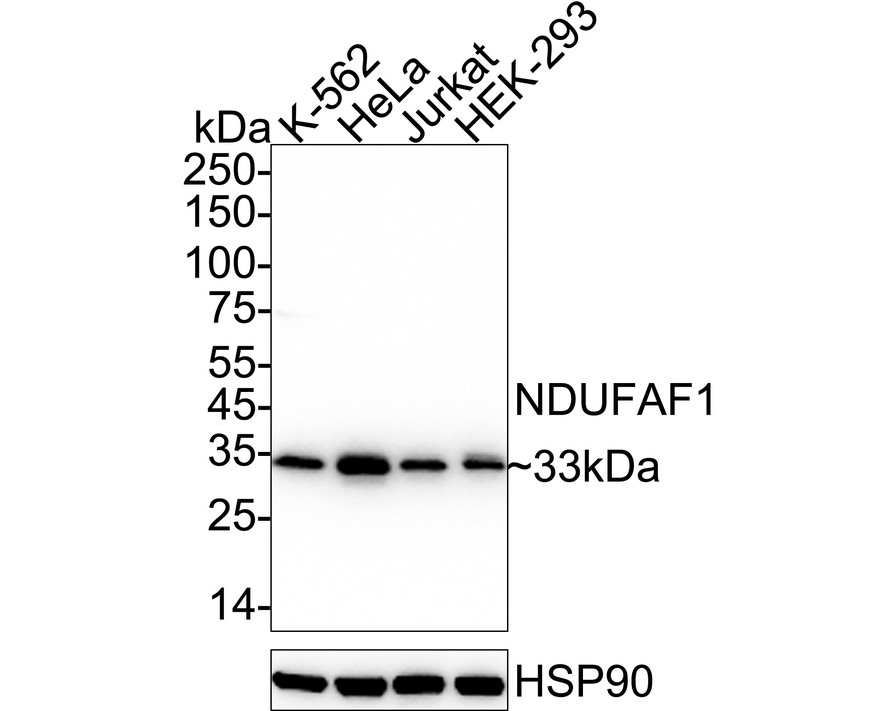

ET7109-54_1.jpg Fig1: Western blot analysis of NDUFAF1 on K562 cell lysate. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ET7109-54, 1/1,000) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.
ET7109-54_2.jpg Fig2: ICC staining NDUFAF1 in 293T cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with NDUFAF1 antibody at a dilution of 1:200 for 1 hour at room temperature, washed with PBS. Alexa Fluorc™ 488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).
ET7109-54_3.jpg Fig3: ICC staining NDUFAF1 in SKOV-3 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with NDUFAF1 antibody at a dilution of 1:200 for 1 hour at room temperature, washed with PBS. Alexa Fluorc™ 488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).
ET7109-54_4.jpg Fig4: Immunohistochemical analysis of paraffin-embedded human liver cancer tissue using anti-NDUFAF1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes. The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the antibody (ET7109-54) at 1/200 dilution, for 30 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chrogen. Counter stained with hematoxylin and mounted with DPX.
ET7109-54_5.jpg Fig5: Immunohistochemical analysis of paraffin-embedded human prostate cancer tissue using anti-NDUFAF1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes. The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the antibody (ET7109-54) at 1/200 dilution, for 30 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chrogen. Counter stained with hematoxylin and mounted with DPX.
ET7109-54_6.jpg Fig6: Immunohistochemical analysis of paraffin-embedded human kidney tissue using anti-NDUFAF1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes. The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the antibody (ET7109-54) at 1/200 dilution, for 30 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chrogen. Counter stained with hematoxylin and mounted with DPX.
ET7109-54_7.jpg Fig7: Flow cytometric analysis of NDUFAF1 was done on THP-1 cells. The cells were fixed, permeabilized and stained with NDUFAF1 antibody at 1/100 dilution (red) compared with an unlabelled control (cells without incubation with primary antibody; black). After incubation of the primary antibody on room temperature for an hour, the cells was stained with a Alexa Fluor™ 488-conjugated goat anti-rabbit IgG Secondary antibody at 1/500 dilution for 30 minutes.
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
