HA500308

TCP1 delta Rabbit Polyclonal Antibody

cat.: HA500308

Product Type:	Rabbit polyclonal IgG, primary antibodies
Species reactivity:	Human, Mouse, Rat
Applications:	WB, IF-Cell, IHC-P, FC
Clonality:	Polyclonal

Form:	Liquid
Storage condition:	Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.
Storage buffer:	1*TBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.
Concentration:	1ug/ul
Purification:	Immunogen affinity purified.
Molecular weight:	Predicted band size: 58 kDa
Isotype:	IgG
Immunogen:	Recombinant protein within human TCP1 delta aa 200-500 / 539.
Positive control:	Hela cell lysate, NIH/3T3 cell lysate, HepG2 cell lysate, rat testis tissue lysate, SW620, rat bladder tissue, human breast carcinoma tissue, SiHa, Hela.
Subcellular location:	Cell projection, Cytoplasm, Cytoskeleton.
Recommended Dilutions: WB IF-Cell IHC-P FC	1:1,000 1:50-1:200 1:400 1:500-1:1,000
Uniprot #:	SwissProt: P50991 Human \| P80315 Mouse \| Q7TPB1 Rat
Alternative names:	CCT delta CCT4 CCTD chaperonin containing t-complex polypeptide 1, delta subunit chaperonin containing TCP1, subunit 4 (delta) SRB Stimulator of TAR RNA binding T complex protein 1 subunit delta TCP-1-delta

Images

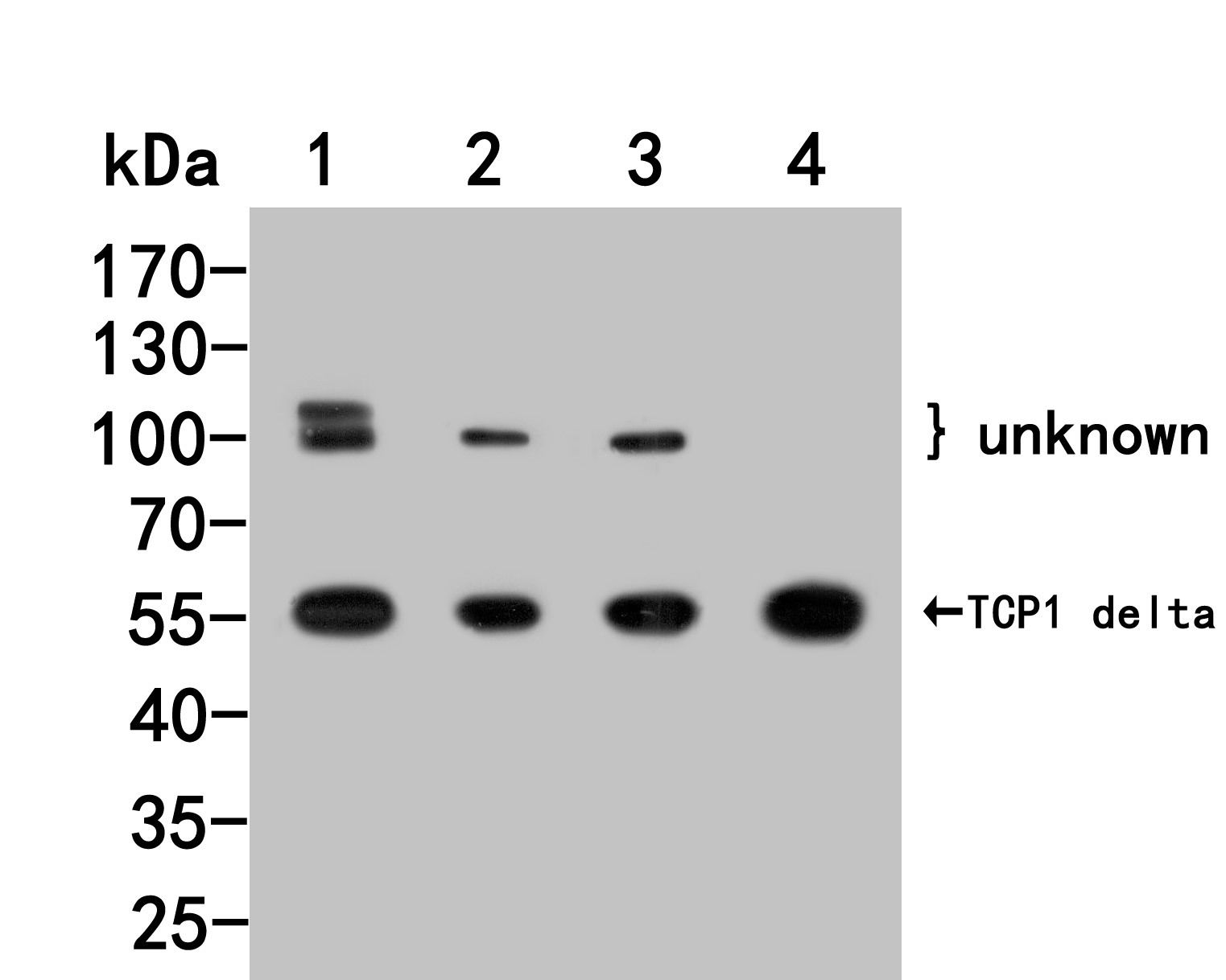

	Fig1: Western blot analysis of TCP1 delta on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA500308, 1/1,000) was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:200,000 dilution was used for 1 hour at room temperature. Positive control: Lane 1: Hela cell lysate Lane 2: NIH/3T3 cell lysate Lane 3: HepG2 cell lysate Lane 4: Rat testis tissue lysate Predicted band size: 58 kDa Observed band size: 55/100/110 kDa
	Fig2: ICC staining of TCP1 delta in SW620 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (HA500308, 1/200) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).
	Fig3: Immunohistochemical analysis of paraffin-embedded rat bladder tissue using anti-TCP1 delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA500308, 1/400) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
	Fig4: Immunohistochemical analysis of paraffin-embedded human breast carcinoma tissue using anti-TCP1 delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA500308, 1/400) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Fig5: ICC staining of TCP1 delta in SiHa cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 10% negative goat serum for 15 minutes at room temperature. Cells were probed with the primary antibody (HA500308, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).

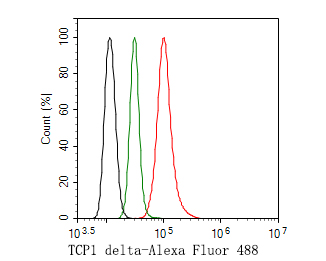

Fig6: Flow cytometric analysis of TCP1 delta was done on Hela cells. The cells were fixed, permeabilized and stained with the primary antibody (HA500308, 1ug/ml) (red) compared with Rabbit IgG, monoclonal - Isotype Control (green). After incubation of the primary antibody at +4℃ for 1 hour, the cells were stained with a Alexa Fluor®488 conjugate-Goat anti-Rabbit IgG Secondary antibody at 1/1,000 dilution for 30 minutes at +4℃ (dark incubation).Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
