HA500487

DRP1 Rabbit Polyclonal Antibody

cat.: HA500487

Product Type:	Rabbit polyclonal IgG, primary antibodies
Species reactivity:	Human, Mouse, Rat
Applications:	WB, IF-Cell, FC, IHC-P
Clonality:	Polyclonal

Form:	Liquid
Storage condition:	Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.
Storage buffer:	PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Concentration:	2ug/ul
Purification:	Immunogen affinity purified.
Molecular weight:	Predicted band size: 82 kDa
Isotype:	IgG
Immunogen:	Recombinant protein within human DRP1 aa 1-736 / 736.
Positive control:	A549 cell lysate, 293 cell lysate, HCT116 cell lysate, Hela cell lysate, NIH/3T3 cell lysate, PC-12 cell lysate, HeLa, NIH/3T3, human cerebellum tissue, mouse cerebellum tissue, rat cerebellum tissue.
Subcellular location:	Cytoplasm, cytosol, Golgi apparatus, Endomembrane system, Mitochondrion outer membrane, Peroxisome, Membrane, clathrin-coated pit, Cytoplasmic vesicle, secretory vesicle, synaptic vesicle membrane.
Recommended Dilutions: WB IF-Cell FC IHC-P	1:1,000 1:2,000 1:2,000 1:2,000
Uniprot #:	SwissProt: O00429 Human \| Q8K1M6 Mouse \| O35303 Rat
Alternative names:	DLP1 dnm1l DNM1L_HUMAN Dnm1p/Vps1p-like protein dnml1 DRP1 DVLP Dymple Dynamin 1 like Dynamin family member proline-rich carboxyl-terminal domain less Dynamin like protein Dynamin related protein 1 Dynamin-1-like protein Dynamin-like protein 4 Dynamin-like protein Dynamin-like protein IV Dynamin-related protein 1 DYNIV 11 EMPF EMPF1 FLJ41912 HdynIV VPS1

Images

Fig1: Western blot analysis of DRP1 on different lysates with Rabbit anti-DRP1 antibody (HA500487) at 1/1,000 dilution.

Lane 1: A549 cell lysate
Lane 2: 293 cell lysate
Lane 3: HCT116 cell lysate
Lane 4: Hela cell lysate
Lane 5: NIH/3T3 cell lysate
Lane 6: PC-12 cell lysate

Lysates/proteins at 10 µg/Lane.

Predicted band size: 82 kDa
Observed band size: 82 kDa

Exposure time: 17 seconds;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA500487) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature.

Fig2: Immunocytochemistry analysis of HeLa cells labeling DRP1 with Rabbit anti-DRP1 antibody (HA500487) at 1/2,000 dilution.

Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-DRP1 antibody (HA500487) at 1/2,000 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

	Fig3: Immunocytochemistry analysis of NIH/3T3 cells labeling DRP1 with Rabbit anti-DRP1 antibody (HA500487) at 1/2,000 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-DRP1 antibody (HA500487) at 1/2,000 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.
	Fig4: Immunohistochemical analysis of paraffin-embedded human cerebellum tissue with Rabbit anti-DRP1 antibody (HA500487) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA500487) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
	Fig5: Immunohistochemical analysis of paraffin-embedded mouse cerebellum tissue with Rabbit anti-DRP1 antibody (HA500487) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA500487) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

	Fig6: Immunohistochemical analysis of paraffin-embedded rat cerebellum tissue with Rabbit anti-DRP1 antibody (HA500487) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA500487) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

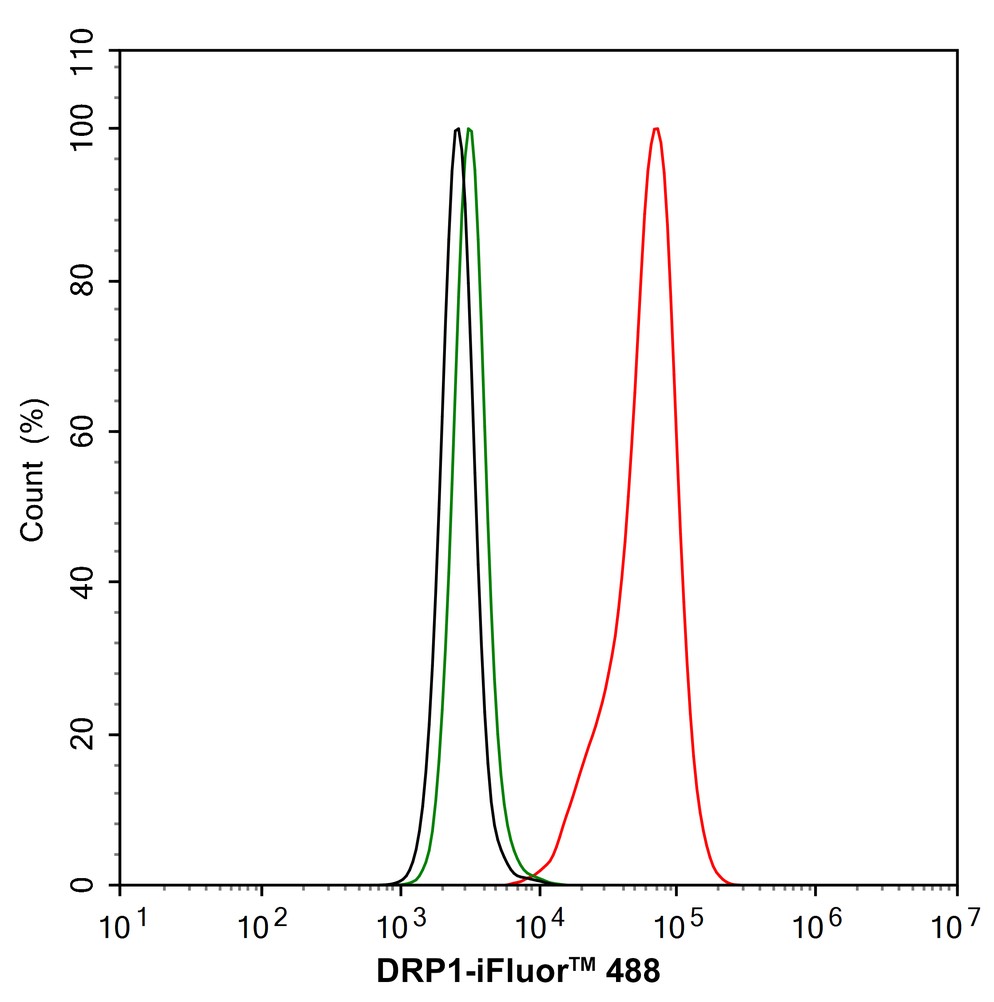

	Fig7: Flow cytometric analysis of HeLa cells labeling DRP1. Cells were fixed and permeabilized. Then stained with the primary antibody (HA500487, 1μg/mL) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

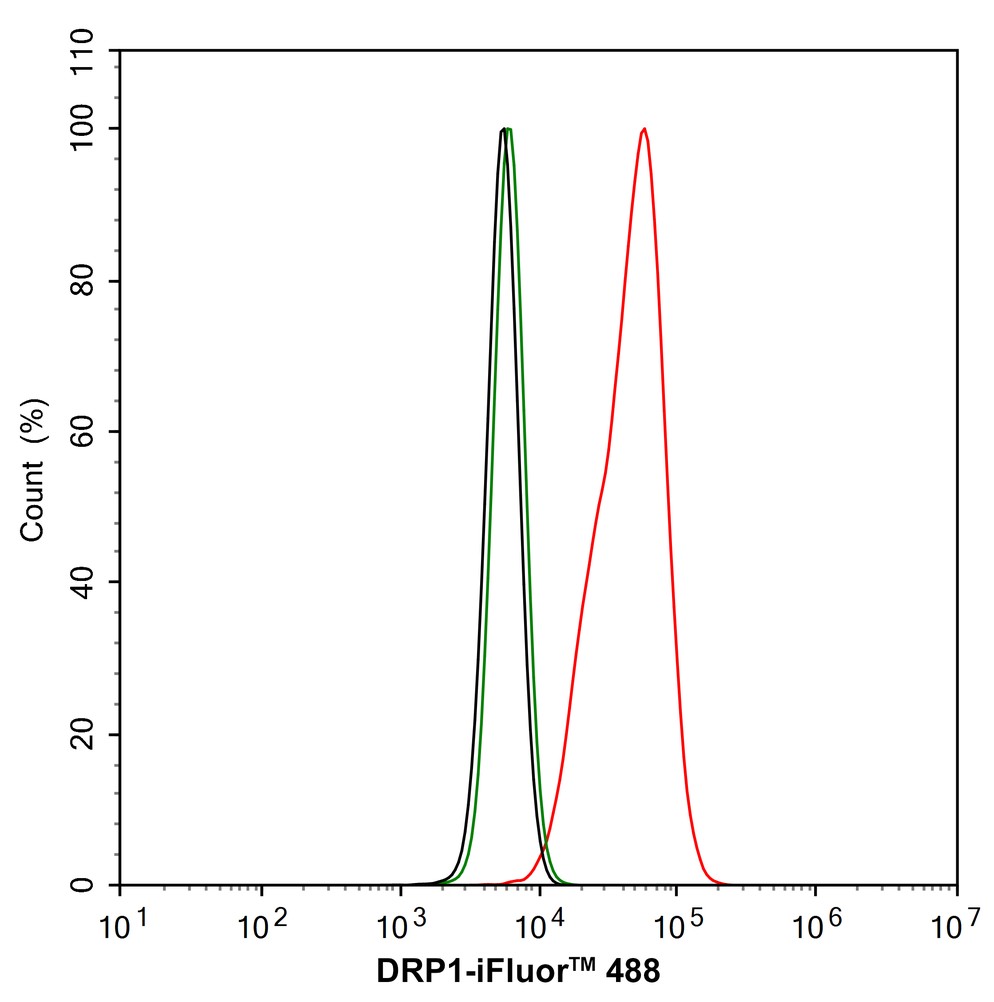

	Fig8: Flow cytometric analysis of NIH/3T3 cells labeling DRP1. Cells were fixed and permeabilized. Then stained with the primary antibody (HA500487, 1μg/mL) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
