MAP2 Recombinant Antibody [PSH08-73] - Rat IgG1 (Chimeric)
cat.: HA601459
| Product Type: | Recombinant Chimeric Antibody, primary antibodies |
|---|---|
| Species reactivity: | Human, Mouse, Rat |
| Applications: | IHC-Fr, IHC-P, WB, IF-Cell |
| Clone number: | PSH08-73 |
| Form: | Liquid |
| Storage condition: | Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term. |
| Storage buffer: | PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide. |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 200 kDa |
| Immunogen: | Recombinant protein within human MAP2 aa 1-600. |
| Positive control: | Mouse brain tissue, rat brain tissue, Mouse brain tissue lysate, Rat brain tissue lysate, mouse primary neuronal cells. |
| Subcellular location: | Cytoplasm, cytoskeleton, Cell projection, dendrite. |
| Recommended Dilutions:
IHC-Fr IHC-P WB IF-Cell |
1:500 1:5,000 1:10,000 1:200 |
| Uniprot #: | SwissProt: P11137 Human | P20357 Mouse | P15146 Rat |
| Alternative names: | DKFZp686I2148 MAP 2 MAP dendrite specific MAP-2 MAP2 MAP2A MAP2B MAP2C Microtubule associated protein 2 Microtubule-associated protein 2 MTAP2_HUMAN |
Images
|
Fig1:
Application: IHC-Fr Species: Mouse Site: brain Sample: Frozen section Antibody concentration: 1/500 Antigen retrieval: Not required |
|
Fig2:
Application: IHC-Fr Species: Rat Site: brain Sample: Frozen section Antibody concentration: 1/500 Antigen retrieval: Not required |
|
Fig3:
Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rat anti-MAP2 antibody (HA601459) at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601459) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig4:
Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rat anti-MAP2 antibody (HA601459) at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA601459) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|

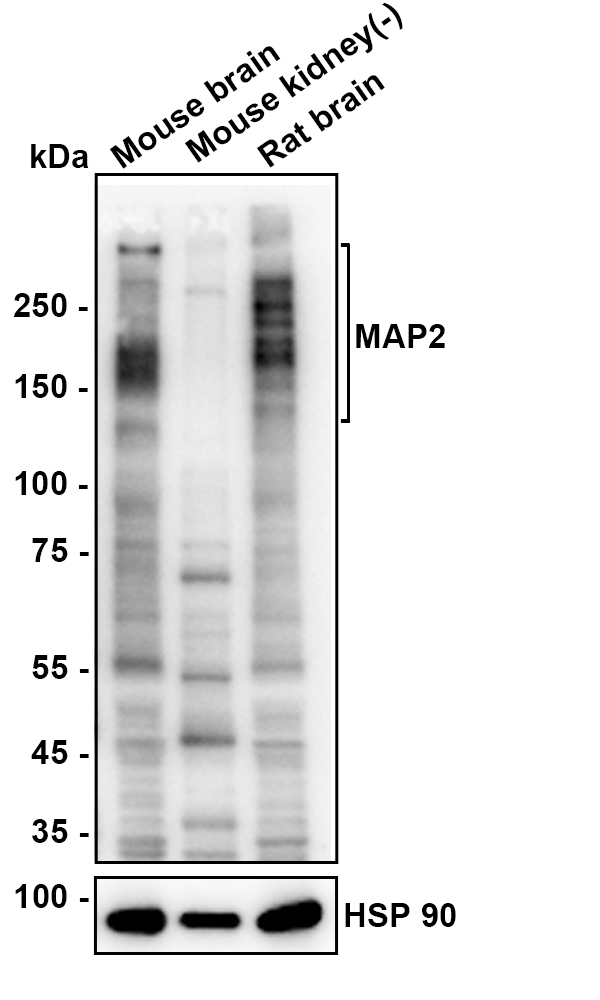

Fig5:
Western blot analysis of MAP2 on different lysates with Rat anti-MAP2 antibody (HA601459) at 1/10,000 dilution. Lane 1: Mouse brain tissue lysate Lane 2: Mouse kidney tissue lysate (negative) Lane 3: Rat brain tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 200 kDa Observed band size: 150-300 kDa Exposure time: 42 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA601459) at 1/10,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rat IgG H&L - HRP Secondary Antibody (HA1023) at 1/50,000 dilution was used for 1 hour at room temperature. |
|
Fig6:
Immunocytochemistry analysis of mouse primary neuronal cells labeling MAP2 with Rat anti-MAP2 antibody (HA601459) at 1/200 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rat anti-MAP2 antibody (HA601459) at 1/200 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rat IgG H&L (iFluor™ 488, HA1133) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution. |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
