TIM 3 Recombinant Antibody [PSH13-95] - Mouse IgG1 (Chimeric) - BSA and Azide free
cat.: HA610277
| Product Type: | Recombinant Chimeric Antibody, primary antibodies |
|---|---|
| Species reactivity: | Human |
| Applications: | WB, IF-Cell, FC |
| Clone number: | PSH13-95 |
| Form: | Liquid |
| Storage condition: | Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles. |
| Storage buffer: | 1*PBS (pH7.4). |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 33 kDa |
| Immunogen: | Recombinant protein within human TIM 3 aa 1-223. |
| Positive control: | RPMI 8226 cell lysate, RPMI 8226. |
| Subcellular location: | Membrane, Cell junction, Cell membrane. |
| Recommended Dilutions:
WB IF-Cell FC |
1:2,000 1:100 1:1,000 |
| Uniprot #: | SwissProt: Q8TDQ0 Human |
| Alternative names: | CD366 FLJ14428 HAVcr-2 Havcr2 HAVR2_HUMAN Hepatitis A virus cellular receptor 2 Kidney injury molecule 3 KIM 3 KIM3 T cell immunoglobulin and mucin domain containing 3 T cell immunoglobulin mucin 3 T-cell immunoglobulin and mucin domain-containing protein 3 T-cell immunoglobulin mucin family member 3 T-cell immunoglobulin mucin receptor 3 T-cell membrane protein 3 Tim 3 TIM-3 TIM3 TIMD-3 TIMD3 |
Images
|
Fig1:

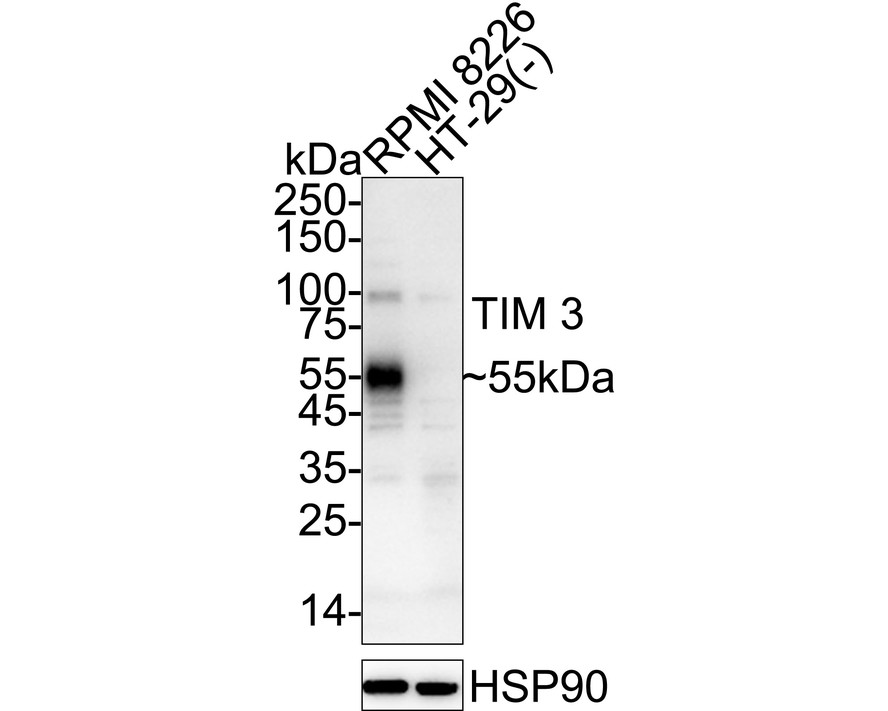

Western blot analysis of TIM 3 on different lysates with Mouse anti-TIM 3 antibody (HA610277) at 1/2,000 dilution. Lane 1: RPMI 8226 cell lysate (20 µg/Lane) Lane 2: HT-29 cell lysate (negative) (20 µg/Lane) Predicted band size: 33 kDa Observed band size: 55 kDa Exposure time: 59 seconds; ECL: K1802; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA610277) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1/50,000 dilution was used for 1 hour at room temperature. |
|
Fig2:
Immunocytochemistry analysis of RPMI 8226 (positive) and HT-29 (negative) labeling TIM 3 with Mouse anti-TIM 3 antibody (HA610277) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Mouse anti-TIM 3 antibody (HA610277) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Mouse IgG H&L (iFluor™ 488, HA1125) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. beta Tubulin (ET1602-4, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Rabbit IgG H&L (iFluor™ 594, HA1122) were used as the secondary antibody at 1/1,000 dilution. |
|
Fig3:

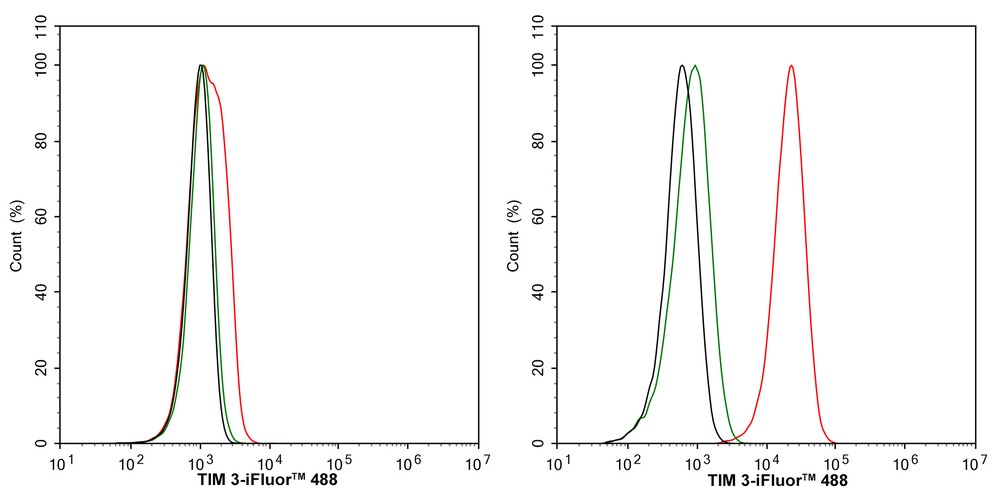

Flow cytometric analysis of HT-29 (left, negative) and RPMI 8226 (right, positive) cells labeling TIM 3. Cells were washed twice with cold PBS and resuspend. Then stained with the primary antibody (HA610277, 1/1,000) (red) compared with Mouse IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Mouse IgG Secondary antibody (HA1125) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black). |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
