NUDT5 Recombinant Rabbit Monoclonal Antibody [JE56-41]
cat.: HA720015
Product Type: Recombinant Rabbit monoclonal IgG, primary antibodies
Species reactivity: Human, Mouse, Rat
Applications: WB, IHC-P, IF-Cell, FC
Clonality: Monoclonal
Clone number: JE56-41
Form: Liquid
Storage condition: Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.
Storage buffer: 1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Concentration: 1ug/ul
Purification: Protein A affinity purified.
Molecular weight: Predicted band size: 24 kDa
Isotype: IgG
Immunogen: Recombinant protein within human NUDT5 aa 1-150.
Positive control: Neuro-2a cell lysate, C6 cell lysate, Rat testis tissue lysate, Hela cell lysate, 293 cell lysate, HeLa, Neuro-2a, C6, human liver tissue, human liver carcinoma tissue.
Subcellular location: Nucleus.
Recommended Dilutions:
  WB
  IHC-P
  IF-Cell
  FC
1:1,000
1:100-1:500
1:100
1:1,000
Uniprot #: SwissProt: Q9UKK9 Human | Q9JKX6 Mouse | Q6AY63 Rat
Alternative names: ADP sugar pyrophosphatase ADP-sugar pyrophosphatase hYSAH 1 hYSAH1 Nucleoside diphosphate linked moiety X motif 5 Nucleoside diphosphate linked moiety X type motif 5 Nucleoside diphosphate-linked moiety X motif 5 Nudix (nucleoside diphosphate linked moiety X) type motif 5 Nudix motif 5 Nudix type motif 5 NUDT 5 Nudt5 NUDT5_HUMAN YSA1 YSA1H
Images
HA720015_1.jpg Fig1: Western blot analysis of NUDT5 on different lysates with Rabbit anti-NUDT5 antibody (HA720015) at 1/1,000 dilution.

Lane 1: Neuro-2a cell lysate (20 µg/Lane)
Lane 2: C6 cell lysate (20 µg/Lane)
Lane 3: Rat testis tissue lysate (40 µg/Lane)

Predicted band size: 24 kDa
Observed band size: 35 kDa

Exposure time: 3 minutes; ECL: K1801;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA720015) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
HA720015_2.jpg Fig2: Western blot analysis of NUDT5 on different lysates with Rabbit anti-NUDT5 antibody (HA720015) at 1/1,000 dilution.

Lane 1: HAP1-parental cell lysate
Lane 2: HAP1-NUDT5 KD cell lysate

Lysates/proteins at 10 µg/Lane.

Predicted band size: 24 kDa
Observed band size: 30 kDa

Exposure time: 10 seconds; ECL: K1801;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA720015) at 1/1,000 dilution was used in K1803 at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
HA720015_3.jpg Fig3: Western blot analysis of NUDT5 on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (HA720015, 1/1,000) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
Positive control:
Lane 1: Hela cell lysate
Lane 2: 293 cell lysate
HA720015_4.jpg Fig4: Immunocytochemistry analysis of HeLa cells labeling NUDT5 with Rabbit anti-NUDT5 antibody (HA720015) at 1/100 dilution.

Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-NUDT5 antibody (HA720015) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.
HA720015_5.jpg Fig5: Immunocytochemistry analysis of Neuro-2a cells labeling NUDT5 with Rabbit anti-NUDT5 antibody (HA720015) at 1/100 dilution.

Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-NUDT5 antibody (HA720015) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.
HA720015_6.jpg Fig6: Immunocytochemistry analysis of C6 cells labeling NUDT5 with Rabbit anti-NUDT5 antibody (HA720015) at 1/100 dilution.

Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-NUDT5 antibody (HA720015) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

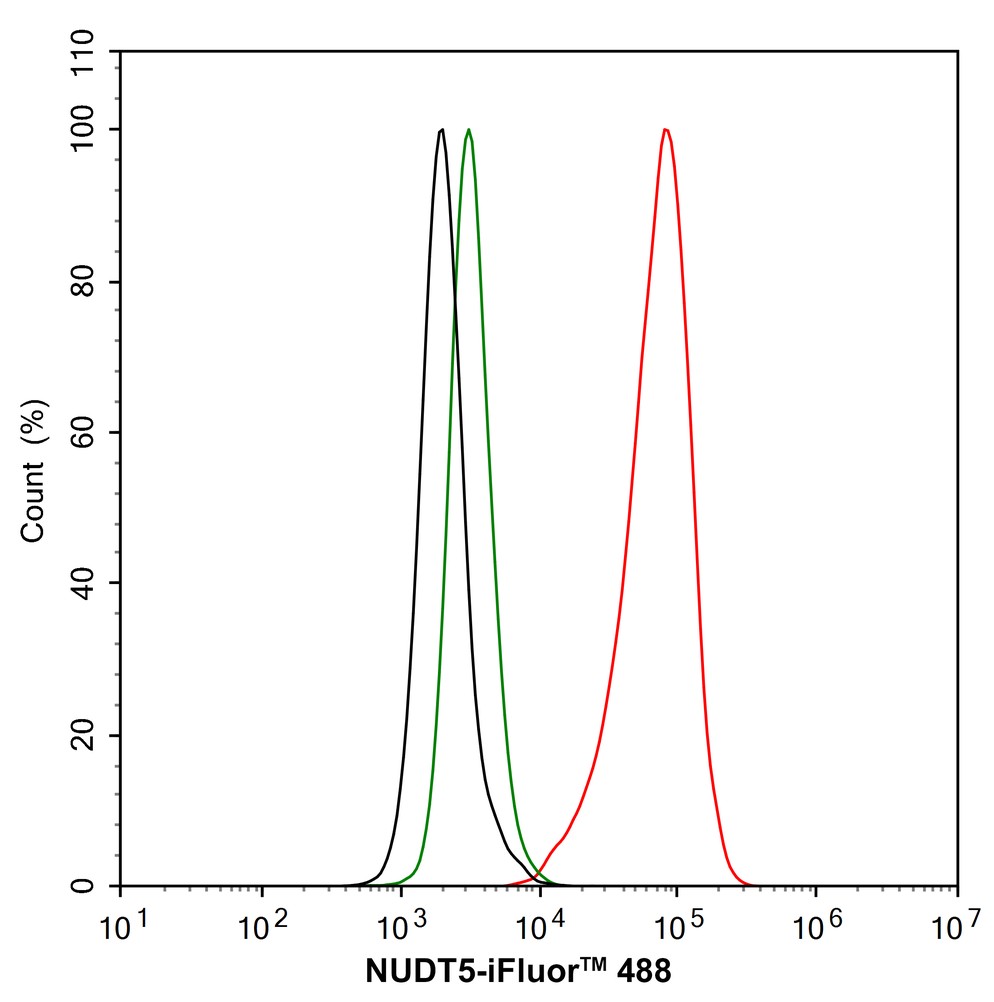

HA720015_7.jpg Fig7: Flow cytometric analysis of HeLa cells labeling NUDT5.

Cells were fixed and permeabilized. Then stained with the primary antibody (HA720015, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

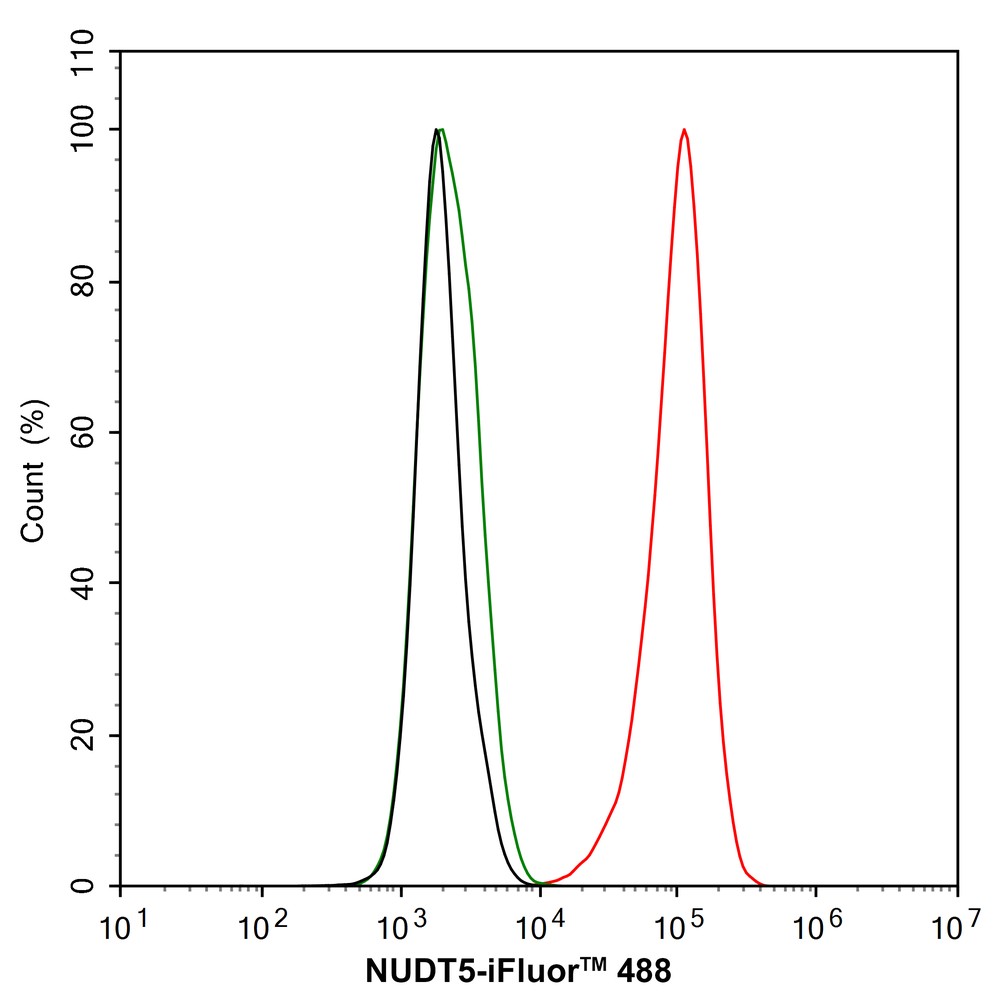

HA720015_8.jpg Fig8: Flow cytometric analysis of Neuro-2a cells labeling NUDT5.

Cells were fixed and permeabilized. Then stained with the primary antibody (HA720015, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

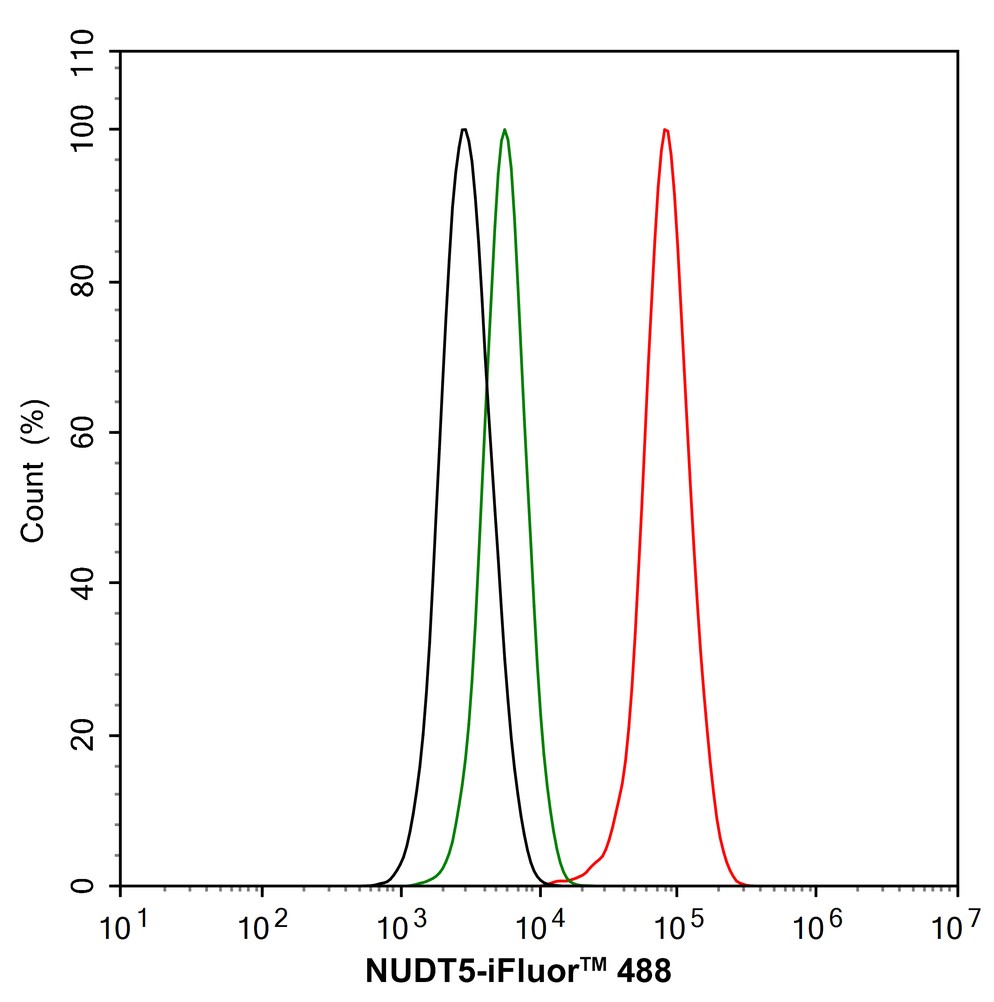

HA720015_9.jpg Fig9: Flow cytometric analysis of C6 cells labeling NUDT5.

Cells were fixed and permeabilized. Then stained with the primary antibody (HA720015, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
HA720015_10.jpg Fig10: Immunohistochemical analysis of paraffin-embedded human liver tissue using anti-NUDT5 antibody. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for 20 minutes. The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA720015, 1/500) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
HA720015_11.jpg Fig11: Immunohistochemical analysis of paraffin-embedded human liver carcinoma tissue using anti-NUDT5 antibody. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for 20 minutes. The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA720015, 1/500) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
