TMEM43 Recombinant Rabbit Monoclonal Antibody [JE65-15]
cat.: HA721083
| Product Type: | Recombinant Rabbit monoclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human, Mouse, Rat |
| Applications: | WB, IHC-P |
| Clonality: | Monoclonal |
| Clone number: | JE65-15 |
| Form: | Liquid |
| Storage condition: | Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles. |
| Storage buffer: | 1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide. |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 45 kDa |
| Isotype: | IgG |
| Immunogen: | Synthetic peptide within human TMEM43 aa 91-140/400. |
| Positive control: | SiHa cell lysate, PC-3 cell lysate, THP-1 cell lysate, rat lung tissue, human ovary tissue, human kidney tissue, mouse esophagus tissue. |
| Subcellular location: | Endoplasmic reticulum, Nucleus inner membrane. |
| Recommended Dilutions:
WB IHC-P |
1:500 1:100-1:400 |
| Uniprot #: | SwissProt: Q9BTV4 Human | Q9DBS1 Mouse | Q5XIP9 Rat |
| Alternative names: | ARVC5 ARVD5 EDMD7 LUMA Protein LUMA Tmem43 TMM43_HUMAN Transmembrane protein 43 |
Images
|
Fig1:

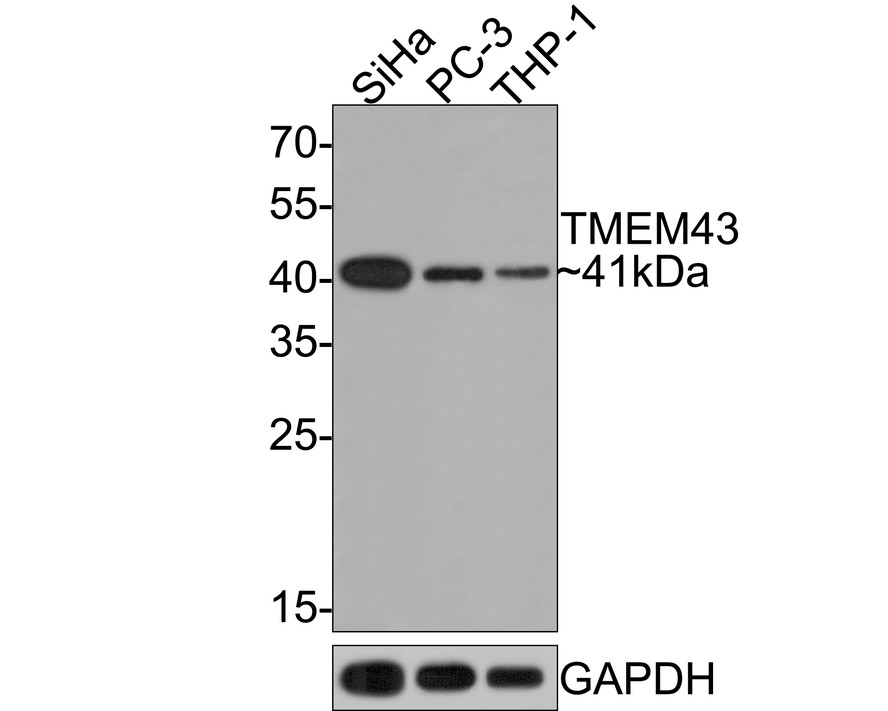

Western blot analysis of TMEM43 on different lysates with Rabbit anti-TMEM43 antibody (HA721083) at 1/500 dilution. Lane 1: SiHa cell lysate Lane 2: PC-3 cell lysate Lane 3: THP-1 cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 45 kDa Observed band size: 41 kDa Exposure time: 2 minutes; 12% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721083) at 1/500 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature. |
|
Fig2:
Immunohistochemical analysis of paraffin-embedded rat lung tissue with Rabbit anti-TMEM43 antibody (HA721083) at 1/100 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721083) at 1/100 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig3:
Immunohistochemical analysis of paraffin-embedded human ovary tissue with Rabbit anti-TMEM43 antibody (HA721083) at 1/400 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721083) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig4:
Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-TMEM43 antibody (HA721083) at 1/400 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721083) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig5:
Immunohistochemical analysis of paraffin-embedded mouse esophagus tissue with Rabbit anti-TMEM43 antibody (HA721083) at 1/100 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721083) at 1/100 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
