TMEM192 Recombinant Rabbit Monoclonal Antibody [JE64-89]
cat.: HA721106
| Product Type: | Recombinant Rabbit monoclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human, Mouse, Rat |
| Applications: | WB, IHC-P |
| Clonality: | Monoclonal |
| Clone number: | JE64-89 |
| Form: | Liquid |
| Storage condition: | Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles. |
| Storage buffer: | 1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide. |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 31 kDa |
| Isotype: | IgG |
| Immunogen: | Recombinant protein within human TMEM192 aa 1-271/271. |
| Positive control: | HepG2 cell lysate, U-87 MG cell lysate, MCF7 cell lysate, Mouse testis tissue lysate, Rat testis tissue lysate, human prostate cancer tissue, human kidney tissue, mouse kidney tissue, rat kidney tissue. |
| Subcellular location: | Late endosome, Lysosome membrane. |
| Recommended Dilutions:
WB IHC-P |
1:1,000 1:1,000 |
| Uniprot #: | SwissProt: Q8IY95 Human | Q9CXT7 Mouse | Q5U1Y0 Rat |
| Alternative names: | FLJ38482 TM192_HUMAN TMEM192 Transmembrane protein 192 |
Images
|

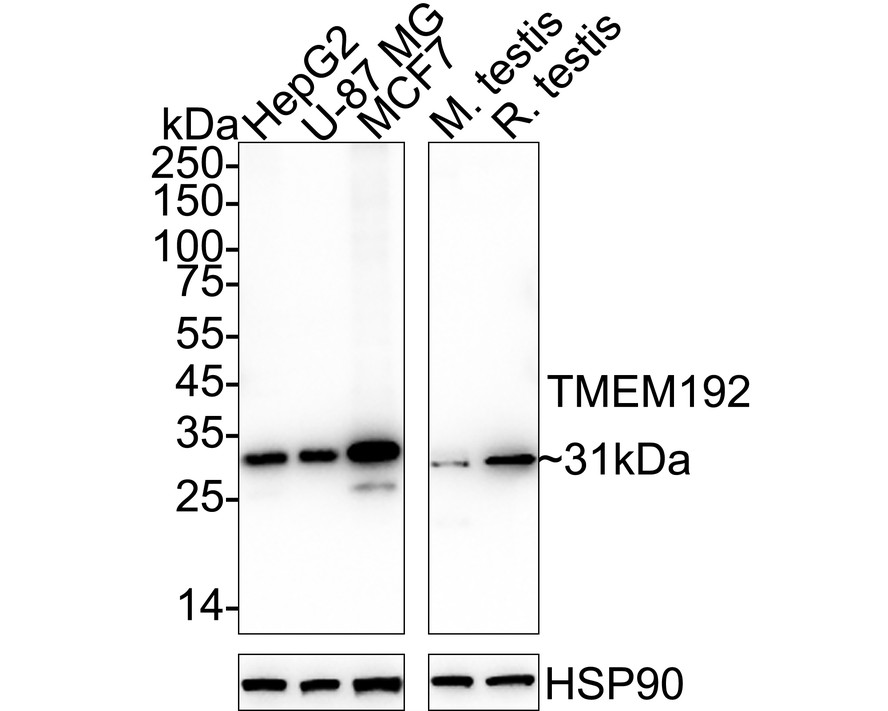

Fig1:
Western blot analysis of TMEM192 on different lysates with Rabbit anti-TMEM192 antibody (HA721106) at 1/1,000 dilution. Lane 1: HepG2 cell lysate (10 µg/Lane) Lane 2: U-87 MG cell lysate (10 µg/Lane) Lane 3: MCF7 cell lysate (10 µg/Lane) Lane 4: Mouse testis tissue lysate (20 µg/Lane) Lane 5: Rat testis tissue lysate (20 µg/Lane) Predicted band size: 31 kDa Observed band size: 31 kDa Exposure time: 25 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721106) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|
Fig2:
Immunohistochemical analysis of paraffin-embedded human prostate cancer tissue with Rabbit anti-TMEM192 antibody (HA721106) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721106) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig3:
Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-TMEM192 antibody (HA721106) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721106) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig4:
Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-TMEM192 antibody (HA721106) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721106) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig5:
Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-TMEM192 antibody (HA721106) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721106) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
