NDUFB4 Recombinant Rabbit Monoclonal Antibody [JE65-30]
cat.: HA721112
| Product Type: | Recombinant Rabbit monoclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human, Mouse, Rat |
| Applications: | WB, IHC-P |
| Clonality: | Monoclonal |
| Clone number: | JE65-30 |
| Form: | Liquid |
| Storage condition: | Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles. |
| Storage buffer: | 1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide. |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 15 kDa |
| Isotype: | IgG |
| Immunogen: | Recombinant protein within human NDUFB4 aa 1-129/129. |
| Positive control: | Mouse heart tissue lysates, rat heart tissue lysate, rat kidney tissue lysate, rat brain tissue lysate, human kidney tissue. |
| Subcellular location: | Mitochondrion inner membrane. |
| Recommended Dilutions:
WB IHC-P |
1:500 1:400 |
| Uniprot #: | SwissProt: O95168 Human | Q9CQC7 Mouse Entrez Gene: 288088 Rat |
| Alternative names: | B15 CI-B15 Complex I B15 subunit Complex I-B15 NADH dehydrogenase (ubiquinone) 1 beta subcomplex 4 15kDa NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 4 NADH ubiquinone oxidoreductase B15 subunit NADH-ubiquinone oxidoreductase B15 subunit NDUB4_HUMAN NDUFB4 |
Images
|
Fig1:
Western blot analysis of NDUFB4 on mouse heart tissue lysates with Rabbit anti-NDUFB4 antibody (HA721112) at 1/500 dilution. Lysates/proteins at 20 µg/Lane. Predicted band size: 15 kDa Observed band size: 15 kDa Exposure time: 2 minutes; 15% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721112) at 1/500 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature. |
|

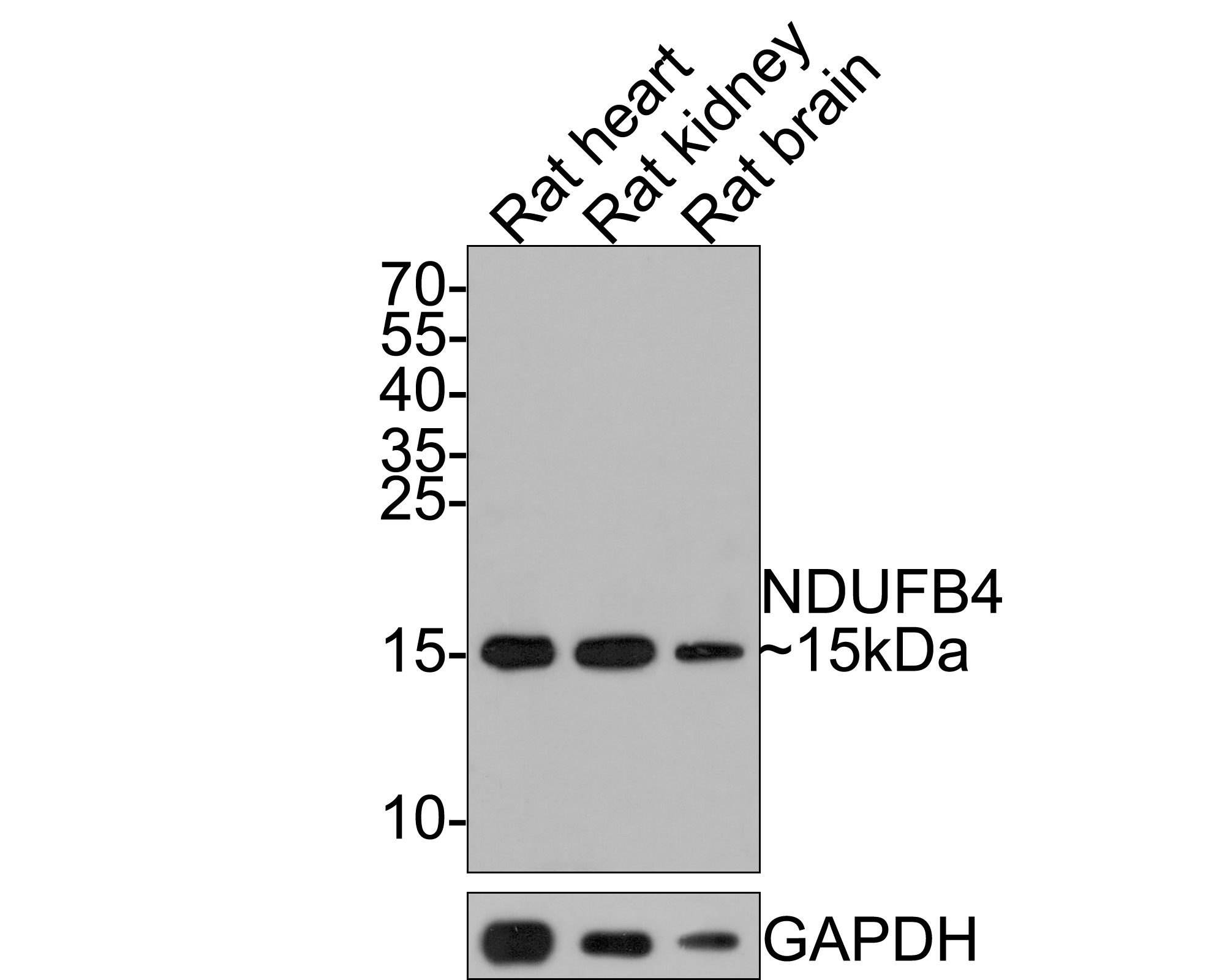

Fig2:
Western blot analysis of NDUFB4 on different lysates with Rabbit anti-NDUFB4 antibody (HA721112) at 1/500 dilution. Lane 1: Rat heart tissue lysate Lane 2: Rat kidney tissue lysate Lane 3: Rat brain tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 15 kDa Observed band size: 15 kDa Exposure time: 2 minutes; 15% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721112) at 1/500 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature. |
|
Fig3:
Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-NDUFB4 antibody (HA721112) at 1/400 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721112) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
