Thrombospondin 1 Recombinant Rabbit Monoclonal Antibody [PSH02-97]
cat.: HA721916
| Product Type: | Recombinant Rabbit monoclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human, Mouse, Rat |
| Applications: | WB, IHC-P, IF-Cell, IF-Tissue, FC |
| Clonality: | Monoclonal |
| Clone number: | PSH02-97 |
| Form: | Liquid |
| Storage condition: | Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles. |
| Storage buffer: | PBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide. |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 129 kDa |
| Isotype: | IgG |
| Immunogen: | Synthetic peptide within human Thrombospondin 1 aa 500-1,170 / 1,170. |
| Positive control: | HUVEC cell lysate, mouse spleen tissue lysate, rat spleen tissue lysate, NIH/3T3, HUVEC, human bone marrow tissue, human spleen tissue, mouse spleen tissue, rat spleen tissue. |
| Subcellular location: | Endoplasmic reticulum. Sarcoplasmic reticulum. |
| Recommended Dilutions:
WB IHC-P IF-Cell IF-Tissue FC |
1:2,000 1:2,000-1:8,000 1:100 1:500 1:1,000 |
| Uniprot #: | SwissProt: P07996 Human | Q8CGB2 Mouse Entrez Gene: 445442 Rat |
| Alternative names: | Thbs1 Thrombospondin-1 TSP Tsp1 TSP1_HUMAN |
Images
|
Fig1:
Western blot analysis of Thrombospondin 1 on different lysates with Rabbit anti-Thrombospondin 1 antibody (HA721916) at 1/2,000 dilution. Lane 1: HUVEC cell lysate Lane 2: Mouse spleen tissue lysate Lane 3: Rat spleen tissue lysate Lysates/proteins at 40 µg/Lane. Predicted band size: 129 kDa Observed band size: 140kDa,170kDa,180 kDa Exposure time: 1 minutes 2 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721916) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|
Fig2:
Immunocytochemistry analysis of NIH/3T3 cells labeling Thrombospondin 1 with Rabbit anti-Thrombospondin 1 antibody (HA721916) at 1/100 dilution. Cells were fixed in 100% precooled methanol for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Thrombospondin 1 antibody (HA721916) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution. |
|
Fig3:
Immunocytochemistry analysis of HUVEC cells labeling Thrombospondin 1 with Rabbit anti-Thrombospondin 1 antibody (HA721916) at 1/100 dilution. Cells were fixed in 100% precooled methanol for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Thrombospondin 1 antibody (HA721916) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. |
|
Fig4:
Immunohistochemical analysis of paraffin-embedded human bone marrow tissue with Rabbit anti-Thrombospondin 1 antibody (HA721916) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721916) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig5:
Immunohistochemical analysis of paraffin-embedded human spleen tissue with Rabbit anti-Thrombospondin 1 antibody (HA721916) at 1/2,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721916) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig6:
Immunohistochemical analysis of paraffin-embedded mouse spleen tissue with Rabbit anti-Thrombospondin 1 antibody (HA721916) at 1/8,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721916) at 1/8,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig7:
Immunohistochemical analysis of paraffin-embedded rat spleen tissue with Rabbit anti-Thrombospondin 1 antibody (HA721916) at 1/8,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721916) at 1/8,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig8:
Immunofluorescence analysis of paraffin-embedded mouse spleen tissue labeling Thrombospondin 1 with Rabbit anti-Thrombospondin 1 antibody (HA721916) at 1/500 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (HA721916, green) at 1/500 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue). |
|
Fig9:

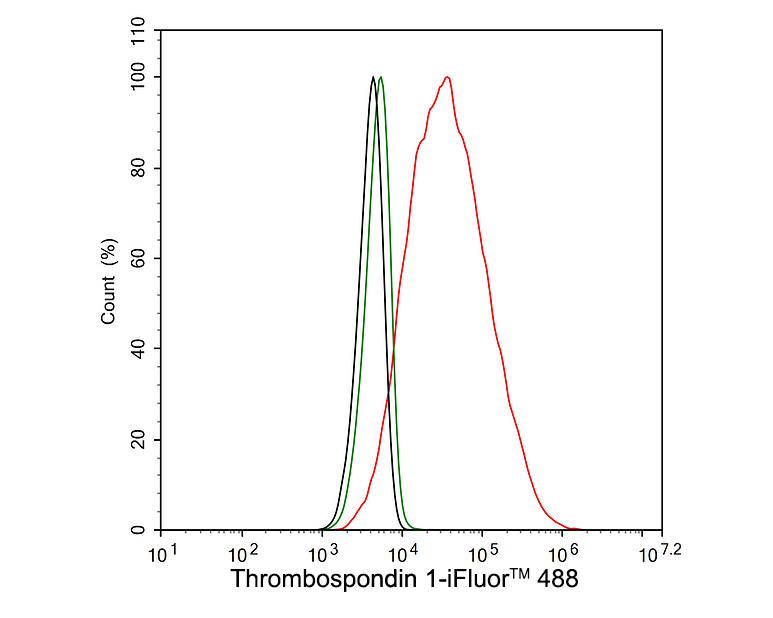

Flow cytometric analysis of NIH/3T3 cells labeling Thrombospondin 1. Cells were fixed and permeabilized. Then stained with the primary antibody (HA721916, 1μg/mL) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black). |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
