Phospho-MAP2 (S136) Recombinant Rabbit Monoclonal Antibody [JE44-25]
cat.: HA722351
| Product Type: | Recombinant Rabbit monoclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Mouse, Rat |
| Applications: | WB, IHC-P, IHC-Fr, IF-Tissue |
| Clonality: | Monoclonal |
| Clone number: | JE44-25 |
| Form: | Liquid |
| Storage condition: | Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term. |
| Storage buffer: | 1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide. |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 200 kDa |
| Isotype: | IgG |
| Immunogen: | Synthetic phosphopeptide corresponding to residues surrounding Ser136 of human MAP2. |
| Positive control: | Mouse brain tissue lysate, rat brain tissue lysate, human brain tissue, mouse brain tissue, rat brain tissue. |
| Subcellular location: | Cytoplasm, cytoskeleton, Cell projection, dendrite. |
| Recommended Dilutions:
WB IHC-P IHC-Fr IF-Tissue |
1:1,000 1:1,000 1:100 1:200 |
| Uniprot #: | SwissProt: P20357 Mouse | P15146 Rat |
| Alternative names: | DKFZp686I2148 MAP 2 MAP dendrite specific MAP-2 MAP2 MAP2A MAP2B MAP2C Microtubule associated protein 2 Microtubule-associated protein 2 MTAP2_HUMAN |
Images
|
Fig1:

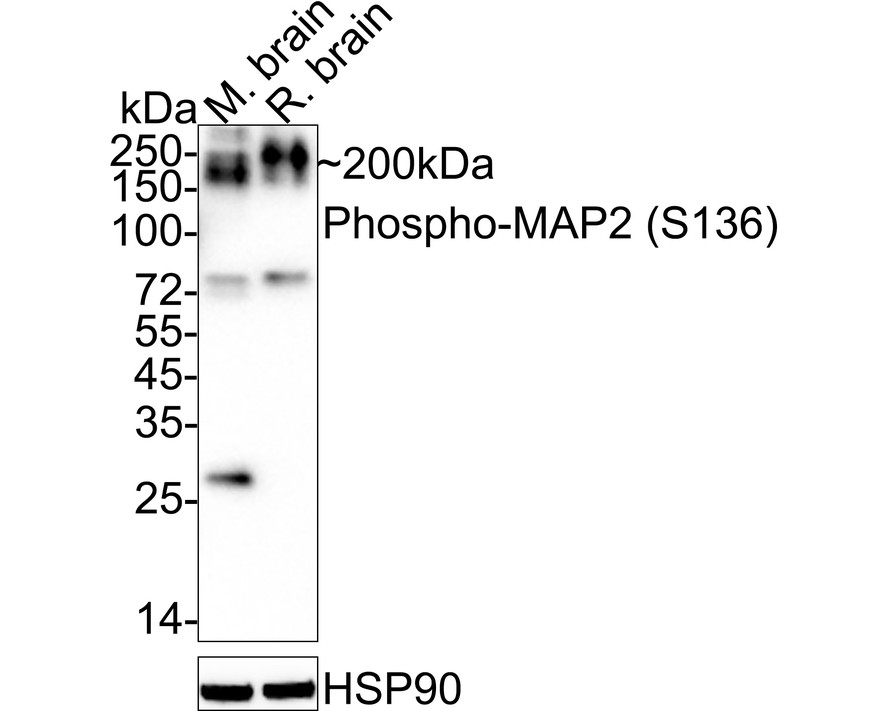

Western blot analysis of Phospho-MAP2 (S136) on different lysates with Rabbit anti-Phospho-MAP2 (S136) antibody (HA722351) at 1/1,000 dilution. Lane 1: Mouse brain tissue lysate Lane 2: Rat brain tissue lysate Lysates/proteins at 30 µg/Lane. Predicted band size: 200 kDa Observed band size: 200 kDa Exposure time: 3 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722351) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|
Fig2:
Immunohistochemical analysis of paraffin-embedded human brain tissue untreated / treated with λpp with Rabbit anti-Phospho-MAP2 (S136) antibody (HA722351) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722351) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig3:
Immunohistochemical analysis of paraffin-embedded mouse brain tissue untreated / treated with λpp with Rabbit anti-Phospho-MAP2 (S136) antibody (HA722351) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722351) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig4:
Immunohistochemical analysis of paraffin-embedded rat brain tissue untreated / treated with λpp with Rabbit anti-Phospho-MAP2 (S136) antibody (HA722351) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722351) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig5:
Immunofluorescence analysis of frozen mouse brain tissue with Rabbit anti-Phospho-MAP2 (S136) antibody (HA722351) at 1/100 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for about 2 minutes in microwave oven. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (HA722351, green) at 1/100 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue). |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
