Meckelin Recombinant Rabbit Monoclonal Antibody [JE65-62]
cat.: HA722366
| Product Type: | Recombinant Rabbit monoclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human, Mouse, Rat |
| Applications: | WB, IHC-P |
| Clonality: | Monoclonal |
| Clone number: | JE65-62 |
| Form: | Liquid |
| Storage condition: | Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term. |
| Storage buffer: | 1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide. |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 112 kDa |
| Isotype: | IgG |
| Immunogen: | Recombinant protein within Human Meckelin aa 801-900 / 995. |
| Positive control: | MCF7 cell lysate, 293T cell lysate, RAW264.7 cell lysate, PC-12 cell lysate, mouse spleen tissue lysate, mouse brain tissue lysate, rat spleen tissue lysate, rat brain tissue lysate, mouse liver tissue, mouse kidney tissue, rat kidney tissue. |
| Subcellular location: | Cell membrane, Endoplasmic reticulum membrane, Cell projection, cilium, Cytoplasm, cytoskeleton, cilium basal body. |
| Recommended Dilutions:
WB IHC-P |
1:1,000 1:1,000 |
| Uniprot #: | SwissProt: Q5HYA8 Human | Q8BR76 Mouse | POC152 Rat |
| Alternative names: | JBTS6 Meckel syndrome type 3 protein MKS3 NPHP11 TMEM67 TNEM67 Transmembrane protein 67 |
Images
|

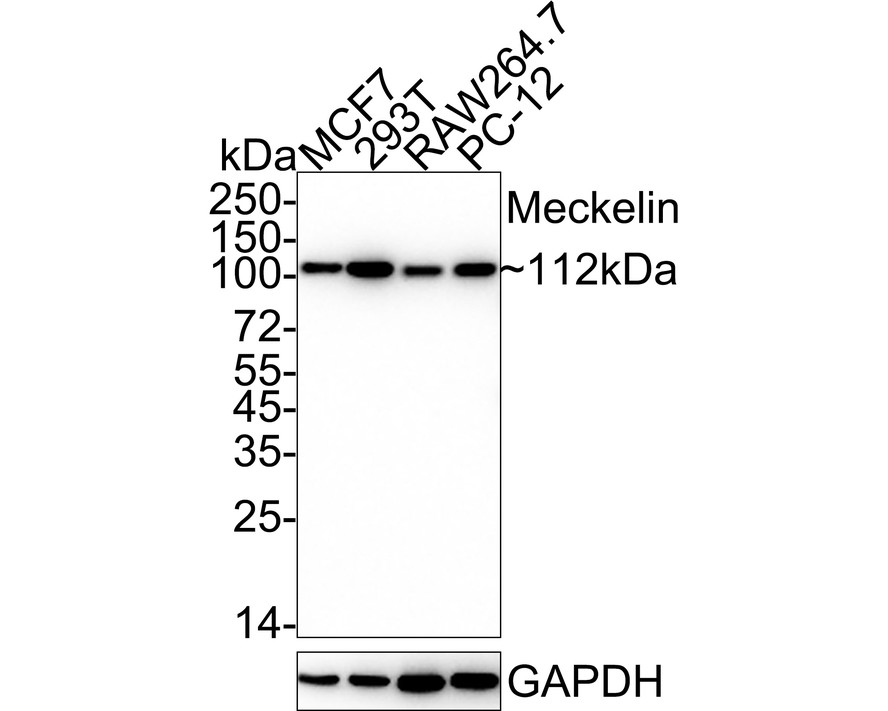

Fig1:
Western blot analysis of Meckelin on different lysates with Rabbit anti-Meckelin antibody (HA722366) at 1/1,000 dilution. Lane 1: MCF7 cell lysate Lane 2: 293T cell lysate Lane 3: RAW264.7 cell lysate Lane 4: PC-12 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 112 kDa Observed band size: 112 kDa Exposure time: 59 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722366) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|

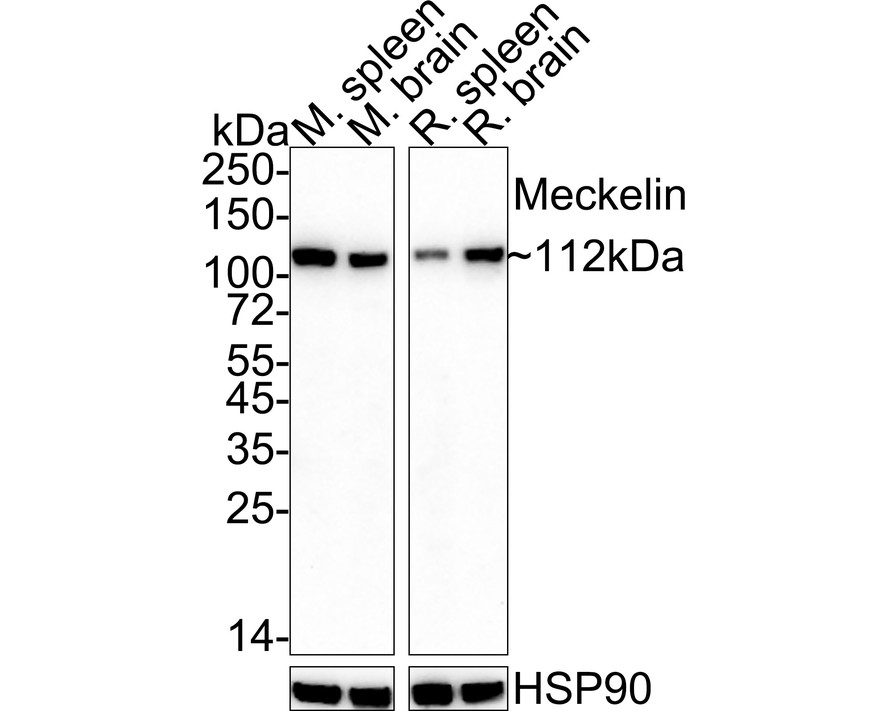

Fig2:
Western blot analysis of Meckelin on different lysates with Rabbit anti-Meckelin antibody (HA722366) at 1/1,000 dilution. Lane 1: Mouse spleen tissue lysate Lane 2: Mouse brain tissue lysate Lane 3: Rat spleen tissue lysate Lane 4: Rat brain tissue lysate Lysates/proteins at 40 µg/Lane. Predicted band size: 112 kDa Observed band size: 112 kDa Exposure time: 3 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722366) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|

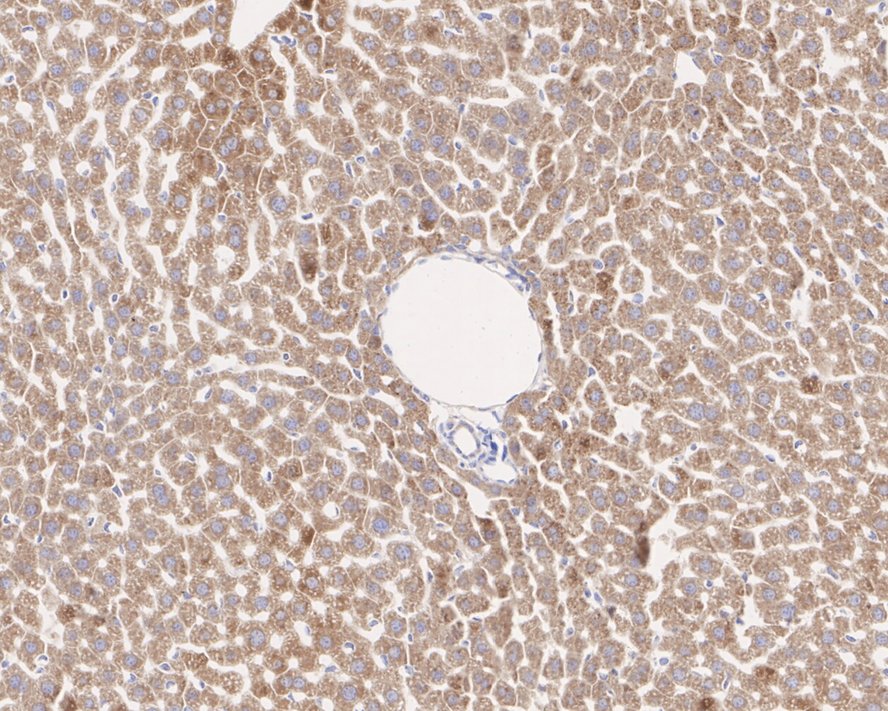

Fig3:
Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-Meckelin antibody (HA722366) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722366) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|

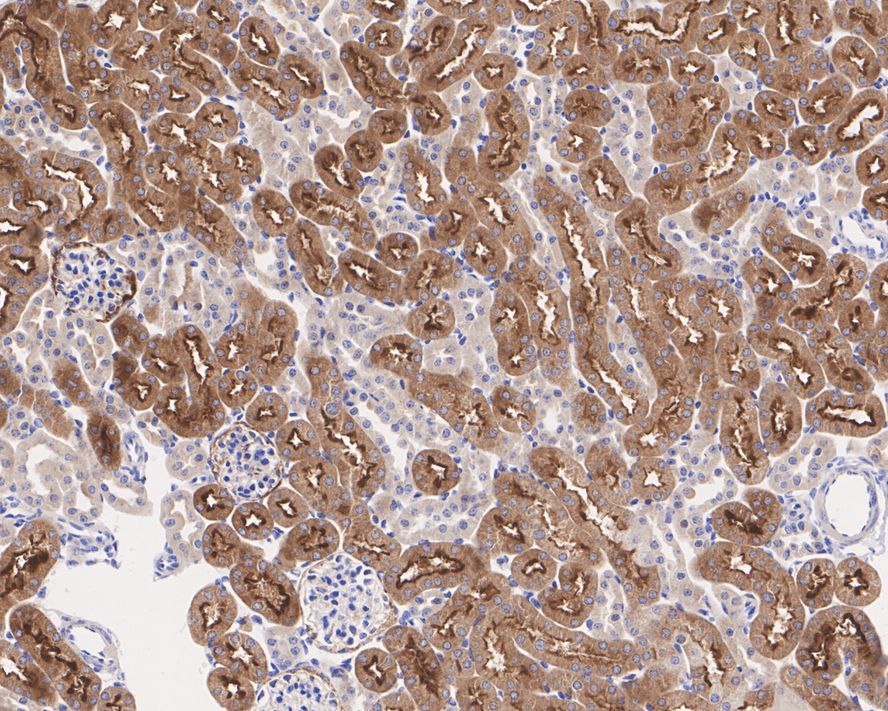

Fig4:
Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-Meckelin antibody (HA722366) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722366) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|

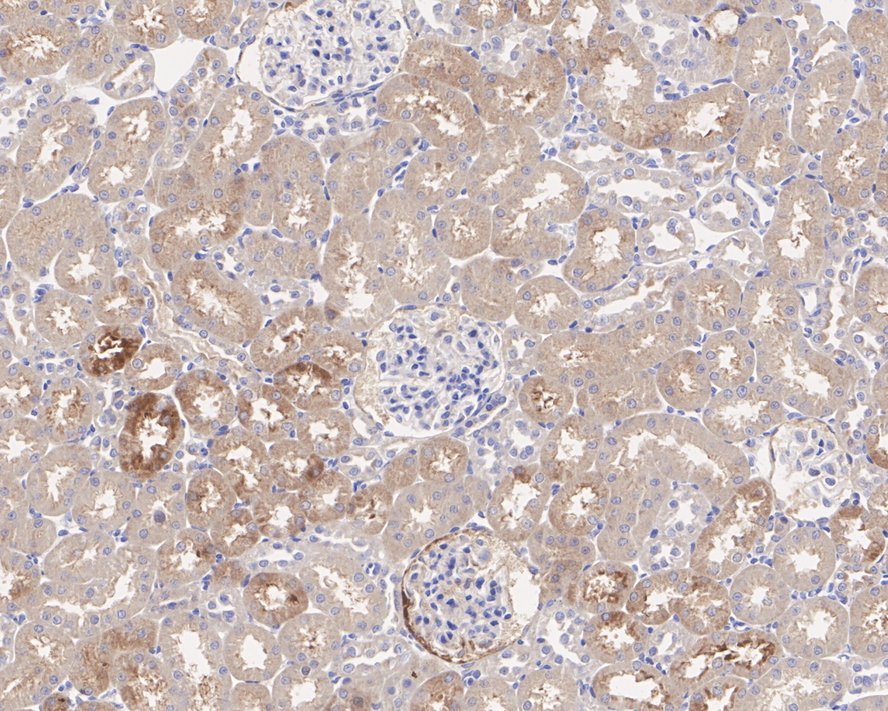

Fig5:
Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-Meckelin antibody (HA722366) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722366) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
