GRAF Recombinant Rabbit Monoclonal Antibody [JE62-23]
cat.: HA722409
| Product Type: | Recombinant Rabbit monoclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human, Mouse, Rat |
| Applications: | WB, IHC-P |
| Clonality: | Monoclonal |
| Clone number: | JE62-23 |
| Form: | Liquid |
| Storage condition: | Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles. |
| Storage buffer: | 1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide. |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 92 kDa |
| Isotype: | IgG |
| Immunogen: | Synthetic peptide within Human GRAF aa 750-814. |
| Positive control: | Caco-2 cell lysate, Jurkat cell lysate, HepG2 cell lysate, MCF7 cell lysate, NIH/3T3 cell lysate, mouse brain tissue lysate, rat brain tissue lysate, human heart tissue, human brain tissue, mouse brain tissue, rat brain tissue. |
| Subcellular location: | Cell junction, focal adhesion, Cytoplasm, cytoskeleton; Endosome membrane. |
| Recommended Dilutions:
WB IHC-P |
1:1,000 1:200-1:1,000 |
| Uniprot #: | SwissProt: Q9UNA1 Human | Q6ZQ82 Mouse Entrez Gene: 307459 Rat |
| Alternative names: | arhgap26 FLJ42530 GRAF GRAF1 GTPase regulator associated with focal adhesion kinase GTPase regulator associated with focal adhesion kinase pp125(FAK) KIAA0621 oligophrenin 1 like protein Oligophrenin-1-like protein oligophrenin1like protein OPHN1L OPHN1L1 RHG26_HUMAN Rho GTPase activating protein 26 Rho GTPase activating protein26 Rho GTPase-activating protein 26 Rho-type GTPase-activating protein 26 |
Images
|

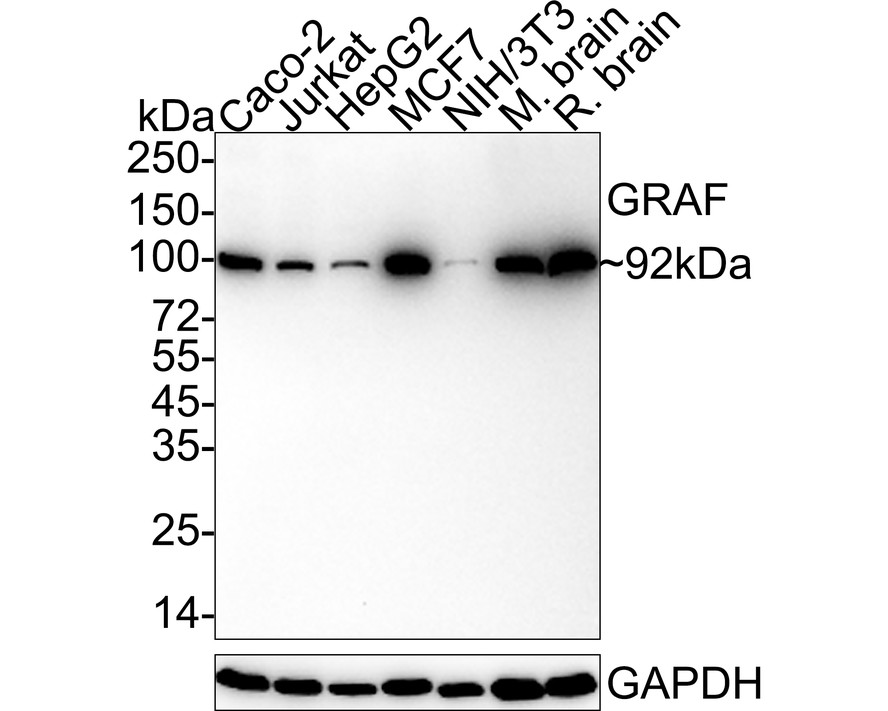

Fig1:
Western blot analysis of GRAF on different lysates with Rabbit anti-GRAF antibody (HA722409) at 1/1,000 dilution. Lane 1: Caco-2 cell lysate (15 µg/Lane) Lane 2: Jurkat cell lysate (15 µg/Lane) Lane 3: HepG2 cell lysate (15 µg/Lane) Lane 4: MCF7 cell lysate (15 µg/Lane) Lane 5: NIH/3T3 cell lysate (15 µg/Lane) Lane 6: Mouse brain tissue lysate (30 µg/Lane) Lane 7: Rat brain tissue lysate (30 µg/Lane) Predicted band size: 92 kDa Observed band size: 92 kDa Exposure time: 3 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722409) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|
Fig2:
Immunohistochemical analysis of paraffin-embedded human heart tissue with Rabbit anti-GRAF antibody (HA722409) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722409) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig3:
Immunohistochemical analysis of paraffin-embedded human brain tissue with Rabbit anti-GRAF antibody (HA722409) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722409) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig4:
Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-GRAF antibody (HA722409) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722409) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig5:
Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-GRAF antibody (HA722409) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722409) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
