Mannose Receptor(CD206) Recombinant Rabbit Monoclonal Antibody [PSH07-76]
cat.: HA722892
Product Type: Recombinant Rabbit monoclonal IgG, primary antibodies
Species reactivity: Mouse, Rat
Applications: WB, IHC-P, IF-Tissue, IHC-Fr, IF-Cell, IP, mIHC
Clonality: Monoclonal
Clone number: PSH07-76
Form: Liquid
Storage condition: Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.
Storage buffer: PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Concentration: 1ug/ul
Purification: Protein A affinity purified.
Molecular weight: Predicted band size: 165 kDa
Isotype: IgG
Immunogen: Recombinant protein within mouse Mannose Receptor(CD206) aa 1-1,409.
Positive control: RAW264.7 treated with 20ng/mL mIL-4 and 10ng/mL mIL-13 for 24 hours cell lysate, Mouse lung tissue lysate, Mouse spleen tissue lysate, Rat brain tissue lysate, Rat lung tissue lysate, Rat liver tissue lysate, mouse spleen tissue, mouse liver tissue, rat liver tissue, mouse osteosarcoma tissue.
Subcellular location: Endosome membrane, Cell membrane.
Recommended Dilutions:
  WB
  IHC-P
  IF-Tissue
  IHC-Fr
  IF-Cell
  IP
  mIHC
1:1,000-1:2,000
1:1,000
1:500
1:500-1:1,000
1:50
1-2μg/sample
1:2,000
Uniprot #: SwissProt: Q61830 Mouse
Entrez Gene: 291327 Rat
Alternative names: bA541I19.1 C type lectin domain family 13 member D C-type lectin domain family 13 member D CD 206 CD206 CD206 antigen CLEC13D CLEC13DL Macrophage mannose receptor 1 Macrophage mannose receptor 1 like protein 1 Macrophage mannose receptor Mannose receptor C type 1 Mannose receptor C type 1 like 1 MMR MRC 1 MRC1 MRC1_HUMAN MRC1L1 OTTHUMP00000045206
Images
HA722892_1.jpg Fig1: Western blot analysis of Mannose Receptor(CD206) on different lysates with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/2,000 dilution.

Lane 1: RAW264.7 cell lysate
Lane 2: RAW264.7 treated with 20ng/mL mIL-4 and 10ng/mL mIL-13 for 24 hours cell lysate (Macrophage M2 polarization, positive)
Lane 3: RAW264.7 cell lysate
Lane 4: RAW264.7 treated with 0.1μg/mL LPS for 6 hours cell lysate (Macrophage M1 polarization, negative)

Lysates/proteins at 20 µg/Lane.

Predicted band size: 165 kDa
Observed band size: 200 kDa

Exposure time: 59 seconds; ECL: K1801;
4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722892) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
HA722892_2.jpg Fig2: Western blot analysis of Mannose Receptor(CD206) on different lysates with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/1,000 dilution.

Lane 1: Mouse lung tissue lysate (20 µg/Lane)
Lane 2: Mouse spleen tissue lysate (20 µg/Lane)
Lane 3: Rat brain tissue lysate (20 µg/Lane)
Lane 4: Rat lung tissue lysate (20 µg/Lane)
Lane 5: Rat liver tissue lysate (20 µg/Lane)

Predicted band size: 165 kDa
Observed band size: 200 kDa

Exposure time: 42 seconds; ECL: K1801;
4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722892) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
HA722892_3.jpg Fig3: Immunofluorescence analysis of frozen mouse spleen tissue with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/1,000 dilution.

The section was not undergone antigen retrieval.

The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (HA722892, green) at 1/1,000 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).
HA722892_4.jpg Fig4: Immunofluorescence analysis of frozen mouse liver tissue with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/500 dilution.

The section was not undergone antigen retrieval.

The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (HA722892, green) at 1/500 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).
HA722892_5.jpg Fig5: Immunohistochemical analysis of paraffin-embedded mouse spleen tissue with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/1,000 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722892) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
HA722892_6.jpg Fig6: Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/1,000 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722892) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

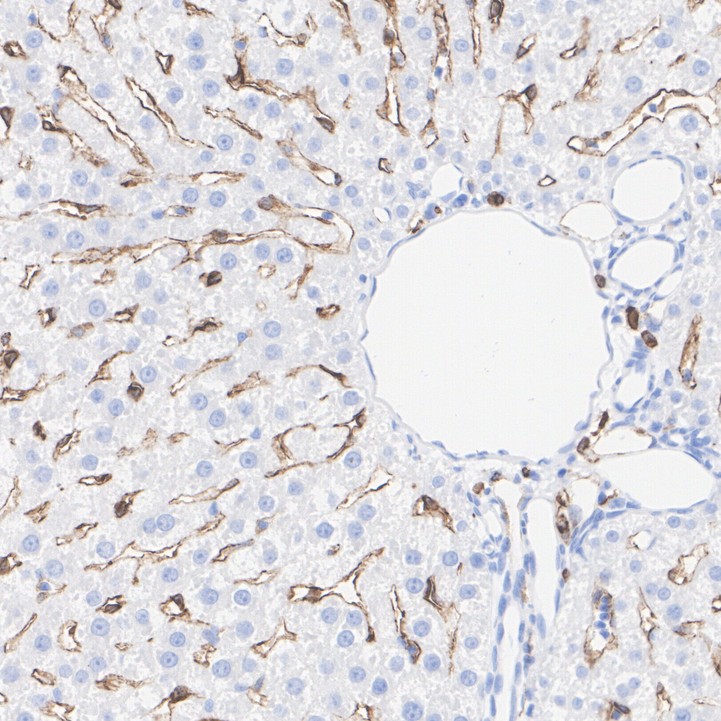

HA722892_7.jpg Fig7: Immunohistochemical analysis of paraffin-embedded rat liver tissue with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/1,000 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722892) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
HA722892_8.jpg Fig8: Immunocytochemistry analysis of RAW264.7 cells treated with 20ng/mL mIL-4 and 10ng/mL mIL-13 for 24 hours (Macrophage M2 polarization, positive) labeling Mannose Receptor(CD206) with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/50 dilution.

Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/50 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.
HA722892_9.jpg Fig9: Immunocytochemistry analysis of RAW264.7 cells treated with 0.1μg/mL LPS for 6 hours (Macrophage M1 polarization, negative) labeling Mannose Receptor(CD206) with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/50 dilution.

Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/50 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.
HA722892_10.jpg Fig10: Immunofluorescence analysis of paraffin-embedded mouse spleen tissue labeling Mannose Receptor(CD206) with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/500 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (HA722892, green) at 1/500 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).
HA722892_11.jpg Fig11: Immunofluorescence analysis of paraffin-embedded mouse liver tissue labeling Mannose Receptor(CD206) with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/500 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (HA722892, green) at 1/500 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).
HA722892_12.jpg Fig12: Mannose Receptor(CD206) was immunoprecipitated from 0.2 mg rat lung tissue lysate with HA722892 at 2 µg/25 µl agarose. Western blot was performed from the immunoprecipitate using HA722892 at 1/1,000 dilution. Anti-Rabbit IgG for IP Nano-secondary antibody (NBI01H) at 1/5,000 dilution was used for 1 hour at room temperature.

Lane 1: rat lung tissue lysate (input)
Lane 2: HA722892 IP in rat lung tissue lysate
Lane 3: Rabbit IgG instead of HA722892 in rat lung tissue lysate

Blocking/Dilution buffer: 5% NFDM/TBST
Exposure time: 1 minute; ECL: K1801
HA722892_13.jpg Fig13: mIHC analysis of mouse liver tissue (Formalin/PFA-fixed paraffin-embedded sections) with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/2,000 dilution. The immunostaining was performed with the IRISKit® HyperView mTSA Kit (MH900206). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins at 95℃. DAPI (blue) was used as a nuclear counter stain. Image acquisition was performed with Olympus VS200 Slide Scanner.
HA722892_14.jpg Fig14: mIHC analysis of mouse osteosarcoma tissue (Formalin/PFA-fixed paraffin-embedded sections) with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/2,000 dilution. The immunostaining was performed with the IRISKit® HyperView mTSA Kit (MH900206). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins at 95℃. DAPI (blue) was used as a nuclear counter stain. Image acquisition was performed with Olympus VS200 Slide Scanner.
HA722892_15.jpg Fig15: mIHC analysis of mouse spleen tissue (Formalin/PFA-fixed paraffin-embedded sections) with Rabbit anti-Mannose Receptor(CD206) antibody (HA722892) at 1/2,000 dilution. The immunostaining was performed with the IRISKit® HyperView mTSA Kit (MH900206). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins at 95℃. DAPI (blue) was used as a nuclear counter stain. Image acquisition was performed with Olympus VS200 Slide Scanner.
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
