NCAM1 / CD56 Recombinant Rabbit Monoclonal Antibody [PSH08-89]
cat.: HA723041
| Product Type: | Recombinant Rabbit monoclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human |
| Applications: | WB, IHC-P, IF-Tissue |
| Clonality: | Monoclonal |
| Clone number: | PSH08-89 |
| Form: | Liquid |
| Storage condition: | Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term. |
| Storage buffer: | PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide. |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 95 kDa |
| Isotype: | IgG |
| Immunogen: | Recombinant protein within human NCAM1 aa 1-739. |
| Positive control: | SH-SY5Y cell lysate, Human brain tissue lysate, human appendix tissue, human brain tissue, human glioma tissue, human lung cancer tissue. |
| Subcellular location: | Cell membrane, Secreted. |
| Recommended Dilutions:
WB IHC-P IF-Tissue |
1:2,000 1:1,000-1:10,000 1:500 |
| Uniprot #: | SwissProt: P13591 Human |
| Alternative names: | antigen MSK39 identified by monoclonal 5.1H11 antigen recognized by monoclonal 5.1H11 CD56 cell adhesion molecule, neural, 1 MSK 39 MSK39 N-CAM-1 NCAM 1 NCAM NCAM C NCAM-1 NCAM1 NCAM1_HUMAN NCAMC Neural cell adhesion molecule 1 Neural cell adhesion molecule NCAM OTTHUMP00000235666 |
Images
|

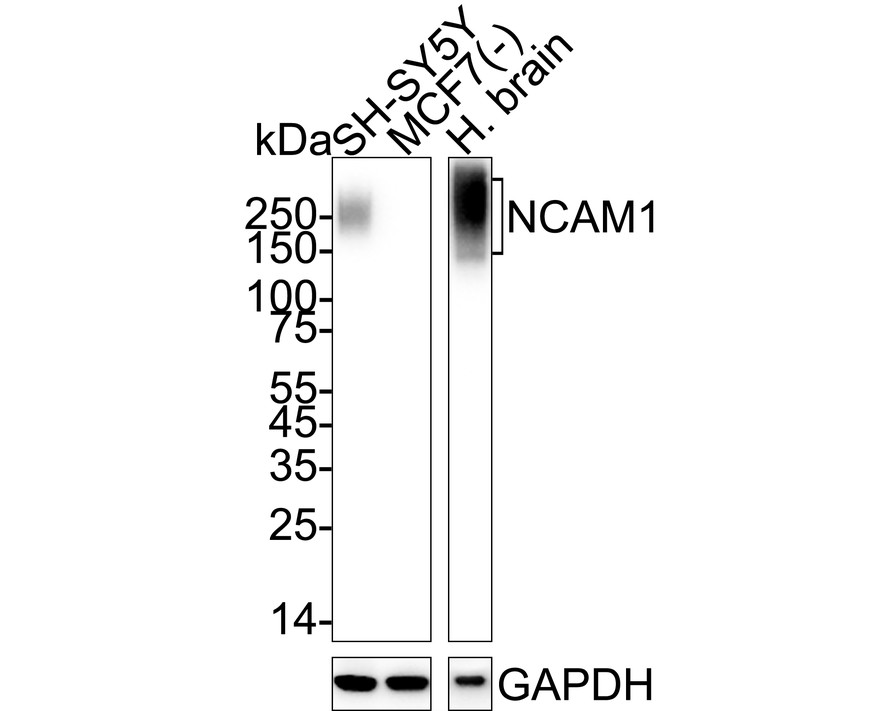

Fig1:
Western blot analysis of NCAM1 / CD56 on different lysates with Rabbit anti-NCAM1 / CD56 antibody (HA723041) at 1/2,000 dilution. Lane 1: SH-SY5Y cell lysate (20 µg/Lane) Lane 2: MCF7 cell lysate (negative)(20 µg/Lane) Lane 3: Human brain tissue lysate(20 µg/Lane) Predicted band size: 95 kDa Observed band size: 140-250 kDa Exposure time: 2 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA723041) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|

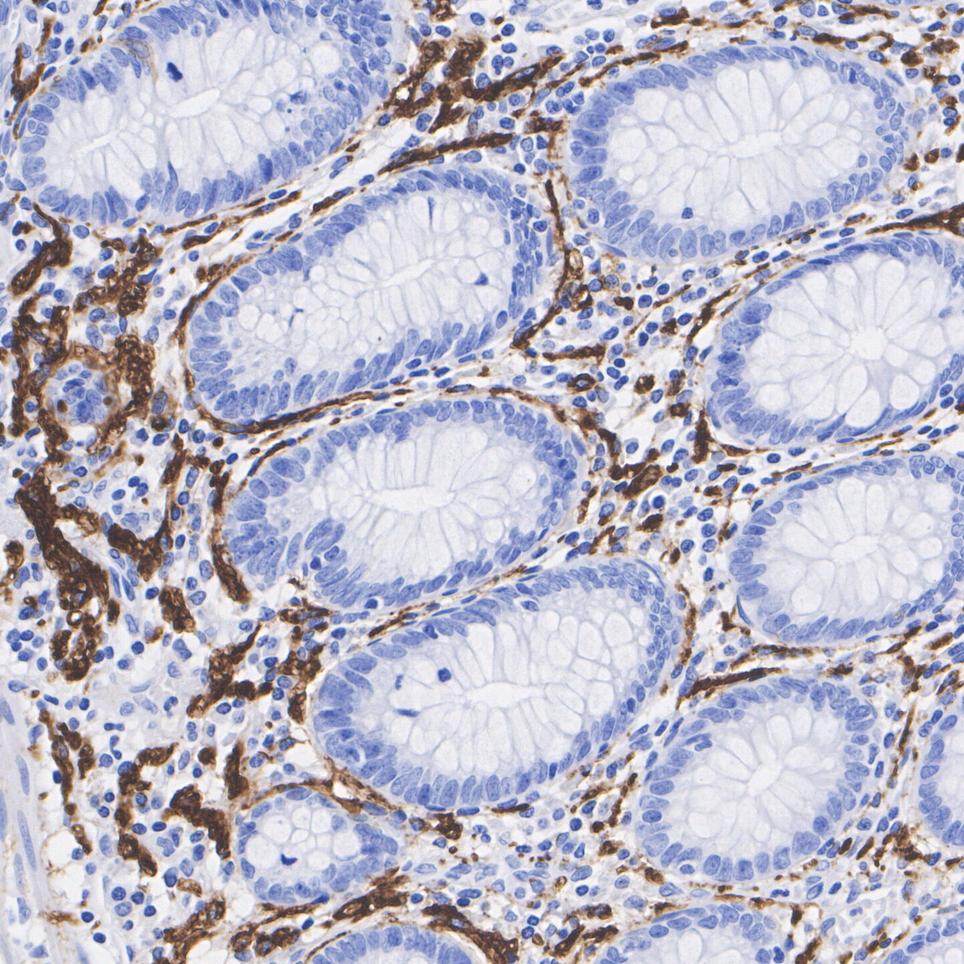

Fig2:
Immunohistochemical analysis of paraffin-embedded human appendix tissue with Rabbit anti-NCAM1 / CD56 antibody (HA723041) at 1/10,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA723041) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|

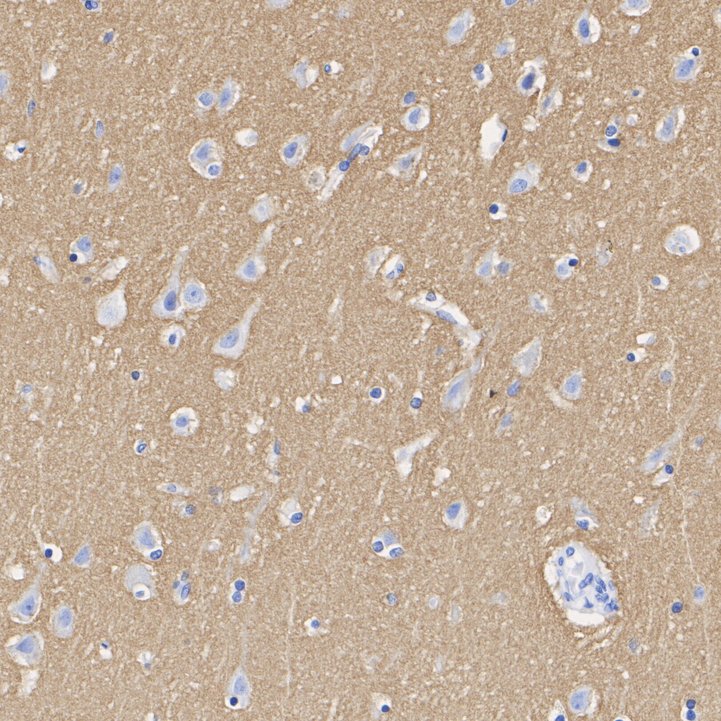

Fig3:
Immunohistochemical analysis of paraffin-embedded human brain tissue with Rabbit anti-NCAM1 / CD56 antibody (HA723041) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA723041) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|

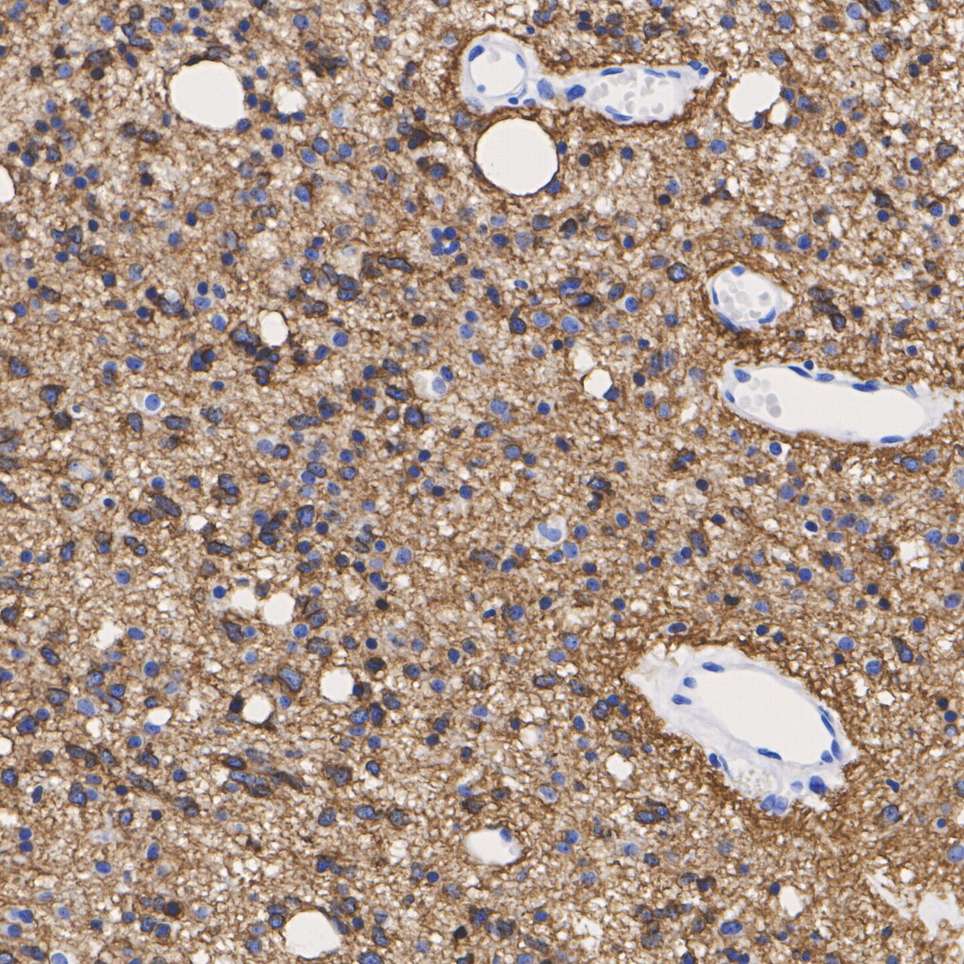

Fig4:
Immunohistochemical analysis of paraffin-embedded human glioma tissue with Rabbit anti-NCAM1 / CD56 antibody (HA723041) at 1/10,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA723041) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|

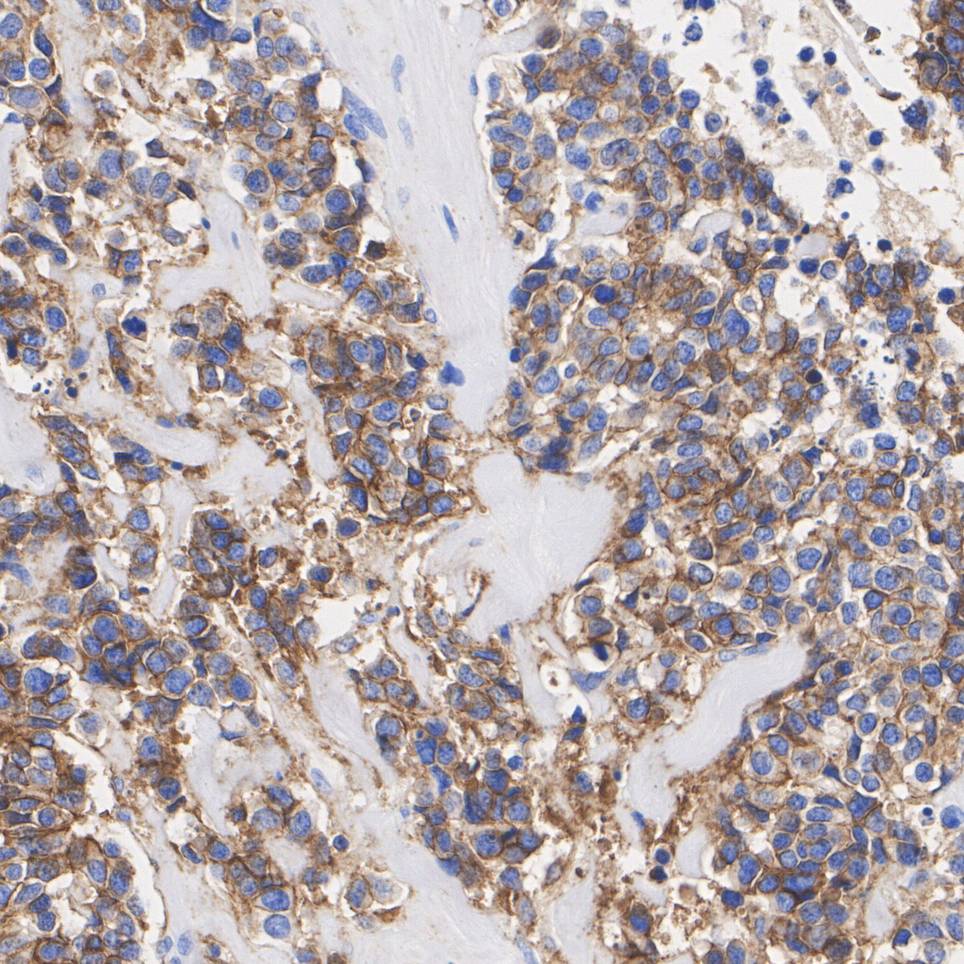

Fig5:
Immunohistochemical analysis of paraffin-embedded human lung cancer tissue with Rabbit anti-NCAM1 / CD56 antibody (HA723041) at 1/10,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA723041) at 1/10,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|

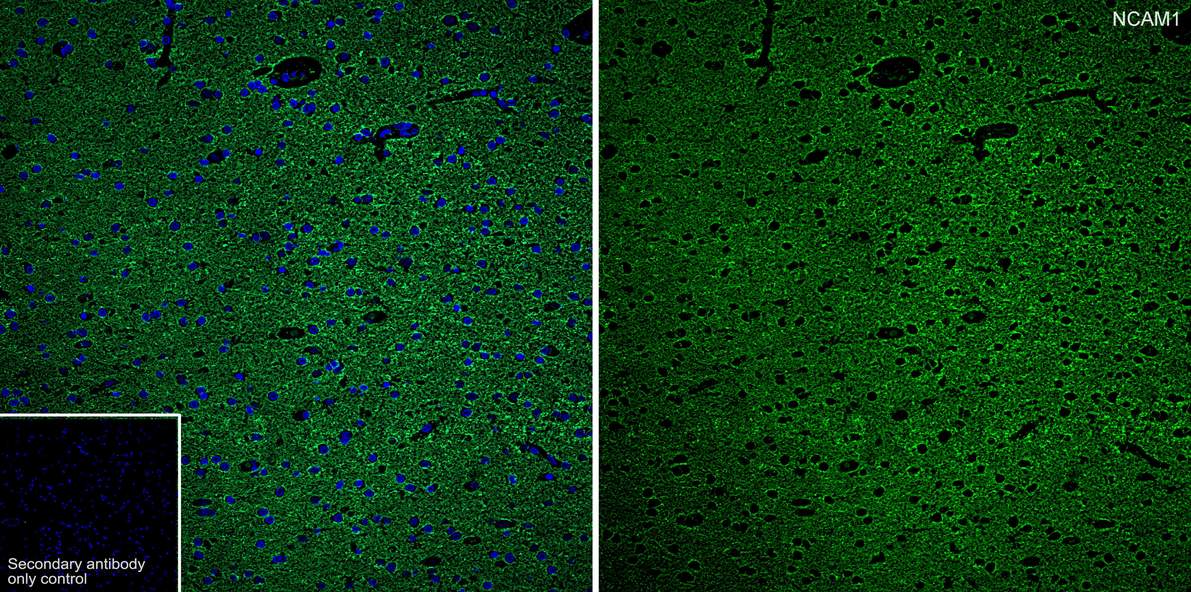

Fig6:
Application: IF-Tissue Species: Human Site: brain Sample: Paraffin-embedded section Antibody concentration: 1/500 |
|

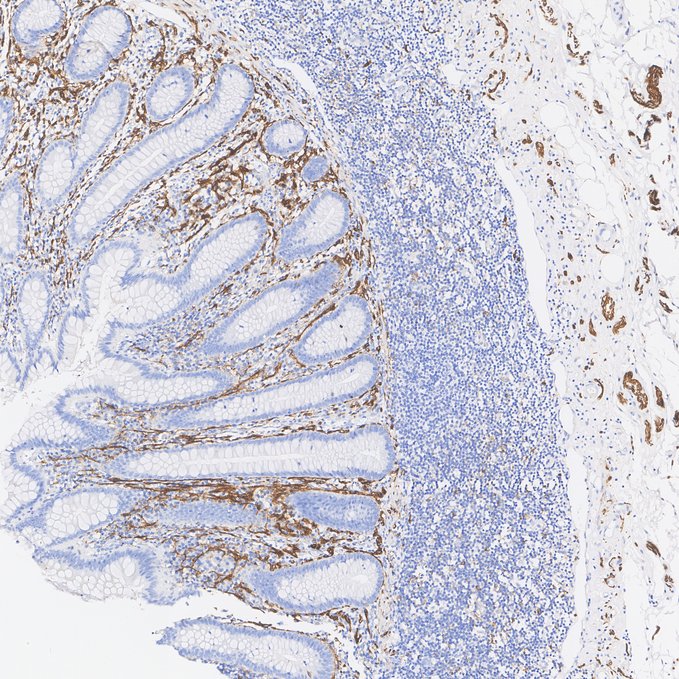

Fig7:
Immunohistochemical analysis of paraffin-embedded human appendix tissue with Rabbit anti-NCAM1 / CD56 antibody (HA723041) at 1/500 dilution. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins. The section was incubated with HA723041 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
