MEK4 / MKK4 Recombinant Rabbit Monoclonal Antibody [PSH11-99]
cat.: HA723412
| Product Type: | Recombinant Rabbit monoclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human, Mouse, Rat, Monkey |
| Applications: | WB, IHC-P, FC |
| Clonality: | Monoclonal |
| Clone number: | PSH11-99 |
| Form: | Liquid |
| Storage condition: | Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term. |
| Storage buffer: | PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide. |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 44 kDa |
| Isotype: | IgG |
| Immunogen: | Recombinant protein within human MEK4 / MKK4 aa 50-399. |
| Positive control: | 293T cell lysate, HeLa cell lysate, A431 cell lysate, COS-1 cell lysate, NIH/3T3 cell lysate, RAW264.7 cell lysate, C6 cell lysate, human brain tissue, human skeletal muscle tissue, 293T. |
| Subcellular location: | Cytoplasm, Nucleus. |
| Recommended Dilutions:
WB IHC-P FC |
1:2,000 1:200 1:1,000 |
| Uniprot #: | SwissProt: P45985 Human | P47809 Mouse Entrez Gene: 287398 Rat |
| Alternative names: | c Jun N terminal kinase kinase 1 C-JUN N-terminal kinase kinase 1 Dual specificity mitogen activated protein kinase kinase 4 Dual specificity mitogen-activated protein kinase kinase 4 JNK Activated Kinase 1 JNK activating kinase 1 JNK-activating kinase 1 JNKK JNKK1 MAP kinase kinase 4 Map2k4 MAPK ERK kinase 4 MAPK/ERK kinase 4 MAPKK 4 MAPKK4 MEK 4 MEK4 Mitogen activated protein kinase kinase 4 MKK 4 MKK4 MP2K4_HUMAN PRKMK4 SAPK ERK kinase 1 SAPK/ERK kinase 1 SAPKK 1 SAPKK1 SEK1 SERK1 SKK1 Stress activated protein kinase kinase 1 |
Images
|
Fig1:
Western blot analysis of MEK4 / MKK4 on different lysates with Rabbit anti-MEK4 / MKK4 antibody (HA723412) at 1/2,000 dilution. Lane 1: 293T cell lysate Lane 2: HeLa cell lysate Lane 3: A431 cell lysate Lane 4: COS-1 cell lysate Lane 5: NIH/3T3 cell lysate Lane 6: RAW264.7 cell lysate Lane 7: C6 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 44 kDa Observed band size: 46 kDa Exposure time: 59 seconds; ECL: K1802; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA723412) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|
Fig2:
Immunohistochemical analysis of paraffin-embedded human brain tissue with Rabbit anti-MEK4 / MKK4 antibody (HA723412) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA723412) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig3:
Immunohistochemical analysis of paraffin-embedded human skeletal muscle tissue with Rabbit anti-MEK4 / MKK4 antibody (HA723412) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA723412) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|

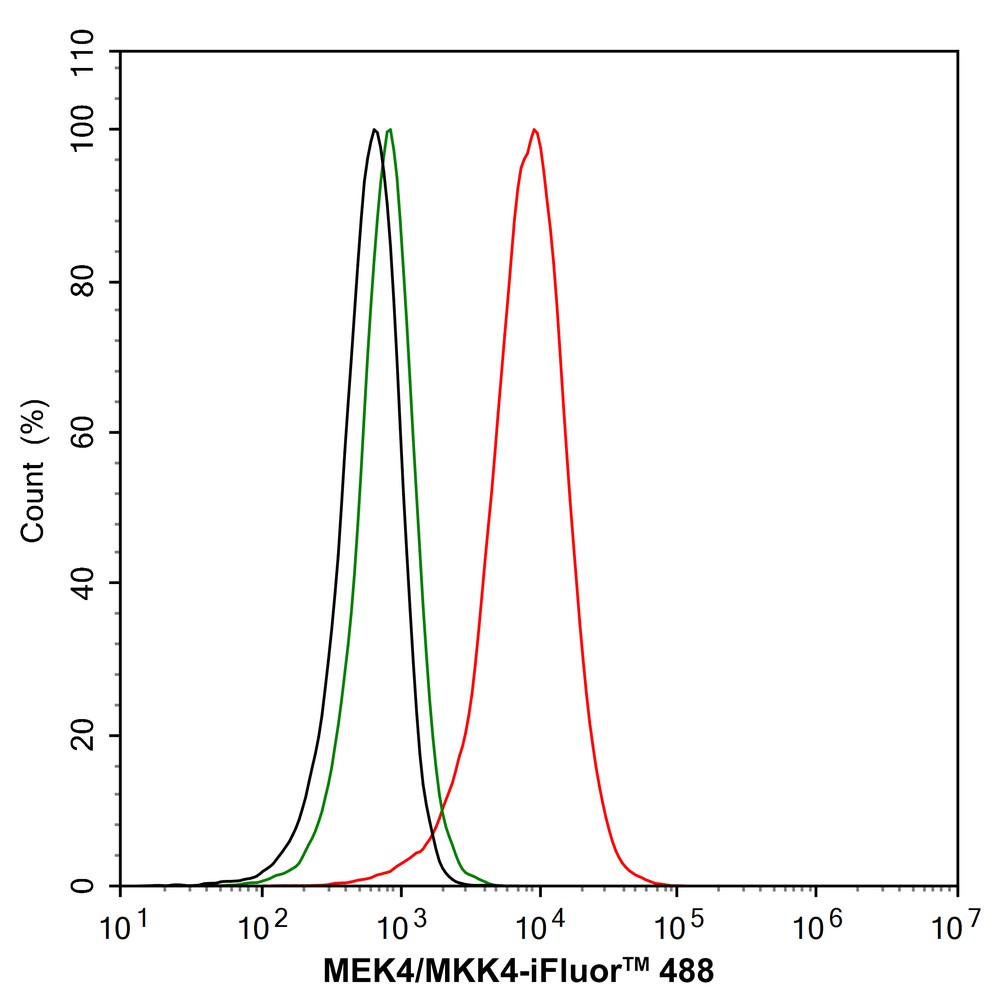

Fig4:
Flow cytometric analysis of 293T cells labeling MEK4 / MKK4. Cells were fixed and permeabilized. Then stained with the primary antibody (HA723412, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black). |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
