PD-L1 Recombinant Rabbit Multiclonal Antibody [PSH13-23]
cat.: HA723510
| Product Type: | Recombinant Rabbit multiclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human, Mouse |
| Applications: | WB |
| Clone number: | PSH13-23 |
| Form: | Liquid |
| Storage condition: | Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term. |
| Storage buffer: | PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide. |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 33 kDa |
| Isotype: | IgG |
| Immunogen: | Synthetic peptide within human PD-L1 aa 260-290 (Cytoplasmic). |
| Positive control: | MDA-MB-231 cell lysate, U-87 MG cell lysate, RAW264.7 cell lysate, RAW264.7 treated with 10μg/mL LPS for 8 hours cell lysate, J774A.1 cell lysate, J774A.1 treated with 1μg/mL LPS for 24 hours cell lysate, Mouse spleen tissue lysate, Mouse lung tissue lysate. |
| Subcellular location: | Cell membrane, Early endosome membrane, Recycling endosome membrane, Nucleus. |
| Recommended Dilutions:
WB |
1:2,000 |
| Uniprot #: | SwissProt: Q9NZQ7 Human | Q9EP73 Mouse |
| Alternative names: | B7 H B7 H1 B7 homolog 1 B7-H1 B7H B7H1 CD 274 CD-274 CD274 CD274 antigen CD274 molecule MGC142294 MGC142296 OTTHUMP00000021029 PD L1 PD-L1 PD1L1_HUMAN PDCD1 ligand 1 PDCD1L1 PDCD1LG1 PDL 1 PDL1 Programmed cell death 1 ligand 1 Programmed death ligand 1 RGD1566211 |
Images
|

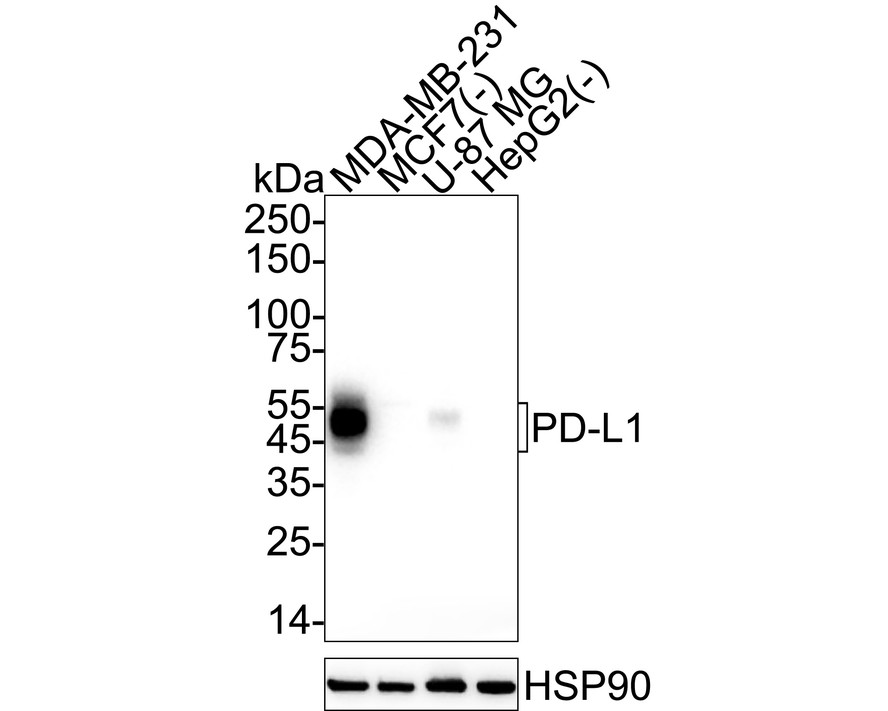

Fig1:
Western blot analysis of PD-L1 on different lysates with Rabbit anti-PD-L1 antibody (HA723510) at 1/2,000 dilution. Lane 1: MDA-MB-231 cell lysate Lane 2: MCF7 cell lysate (negative) Lane 3: U-87 MG cell lysate Lane 4: HepG2 cell lysate (negative) Lysates/proteins at 20 µg/Lane. Predicted band size: 33 kDa Observed band size: 45-55 kDa Exposure time: 20 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA723510) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|

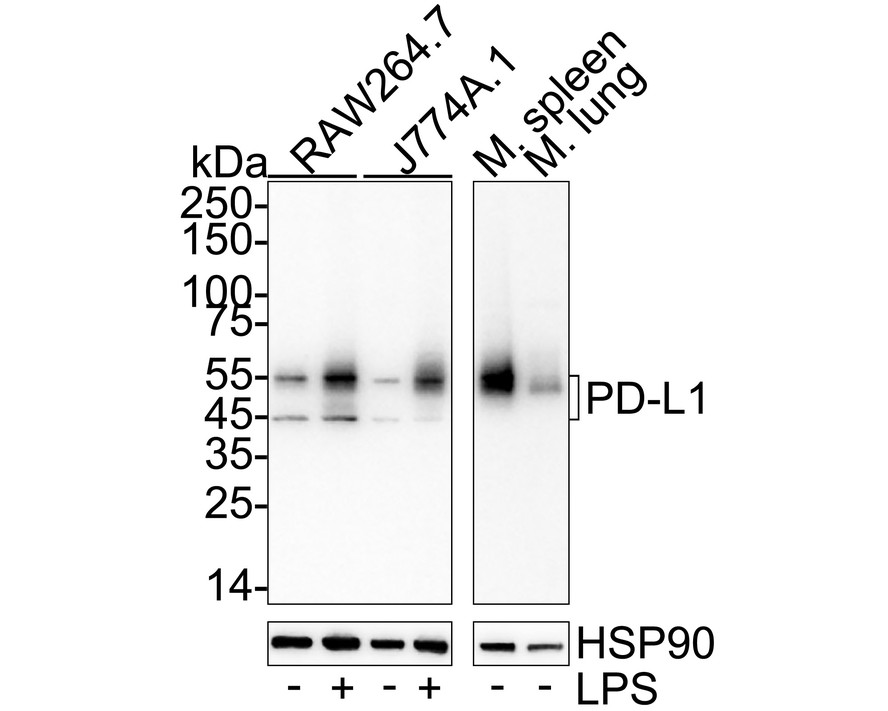

Fig2:
Western blot analysis of PD-L1 on different lysates with Rabbit anti-PD-L1 antibody (HA723510) at 1/2,000 dilution. Lane 1: RAW264.7 cell lysate Lane 2: RAW264.7 treated with 10μg/mL LPS for 8 hours cell lysate Lane 3: J774A.1 cell lysate Lane 4: J774A.1 treated with 1μg/mL LPS for 24 hours cell lysate Lane 5: Mouse spleen tissue lysate Lane 6: Mouse lung tissue lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 33 kDa Observed band size: 45-55 kDa Exposure time: 59 seconds; ECL: K1802; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA723510) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
