CHCHD2 Recombinant Rabbit Monoclonal Antibody [PSH13-87]
cat.: HA723580
| Product Type: | Recombinant Rabbit monoclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human, Mouse, Rat |
| Applications: | WB, IF-Cell, FC, IP |
| Clonality: | Monoclonal |
| Clone number: | PSH13-87 |
| Form: | Liquid |
| Storage condition: | Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles. |
| Storage buffer: | PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide. |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 16 kDa |
| Isotype: | IgG |
| Immunogen: | Recombinant protein within human CHCHD2 aa 1-151. |
| Positive control: | A431 cell lysate, HeLa cell lysate, HepG2 cell lysate, K-562 cell lysate, Jurkat cell lysate, HEK-293 cell lysate, LNCaP cell lysate, Neuro-2a cell lysate, PC-12 cell lysate, Mouse kidney tissue lysate, A431. |
| Subcellular location: | Nucleus, Mitochondrion, Mitochondrion intermembrane space. |
| Recommended Dilutions:
WB IF-Cell FC IP |
1:5,000 1:100 1:1,000 1-2μg/sample |
| Uniprot #: | SwissProt: Q9Y6H1 Human | Q9D1L0 Mouse Entrez Gene: 100910788 Rat |
| Alternative names: | 16.7kD protein Aging Associated Gene 10 Protein Aging-associated gene 10 protein C7orf17 CHCH2_HUMAN CHCHD 2 CHCHD2 Coiled Coil Helix Coiled Coil Helix Domain Containing 2 Coiled coil helix coiled coil helix domain containing protein 2, mitochondrial Coiled-coil-helix-coiled-coil-helix domain-containing protein 2, mitochondrial HCV NS2 trans regulated protein HCV NS2 trans-regulated protein NS2TP |
Images
|

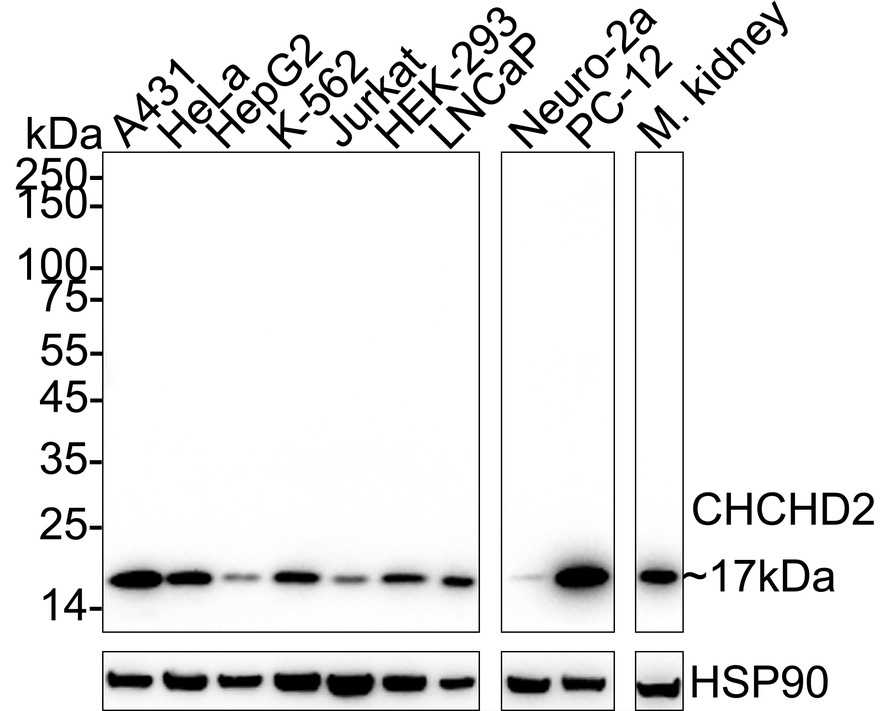

Fig1:
Western blot analysis of CHCHD2 on different lysates with Rabbit anti-CHCHD2 antibody (HA723580) at 1/5,000 dilution. Lane 1: A431 cell lysate (20 µg/Lane) Lane 2: HeLa cell lysate (20 µg/Lane) Lane 3: HepG2 cell lysate (20 µg/Lane) Lane 4: K-562 cell lysate (20 µg/Lane) Lane 5: Jurkat cell lysate (20 µg/Lane) Lane 6: HEK-293 cell lysate (20 µg/Lane) Lane 7: LNCaP cell lysate (20 µg/Lane) Lane 8: Neuro-2a cell lysate (20 µg/Lane) Lane 9: PC-12 cell lysate (20 µg/Lane) Lane 10: Mouse kidney tissue lysate (40 µg/Lane) Predicted band size: 16 kDa Observed band size: 17 kDa Exposure time: 3 minutes; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA723580) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|

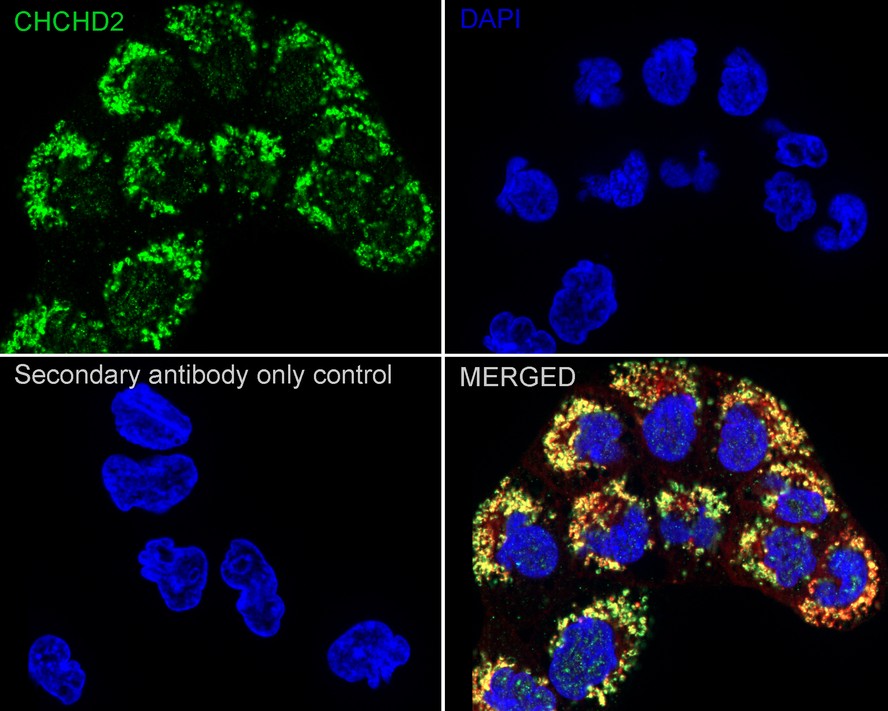

Fig2:
Immunocytochemistry analysis of A431 cells labeling CHCHD2 with Rabbit anti-CHCHD2 antibody (HA723580) at 1/100 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-CHCHD2 antibody (HA723580) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Counterstained with Mitotracker. Nuclear DNA was labelled in blue with DAPI. |
|

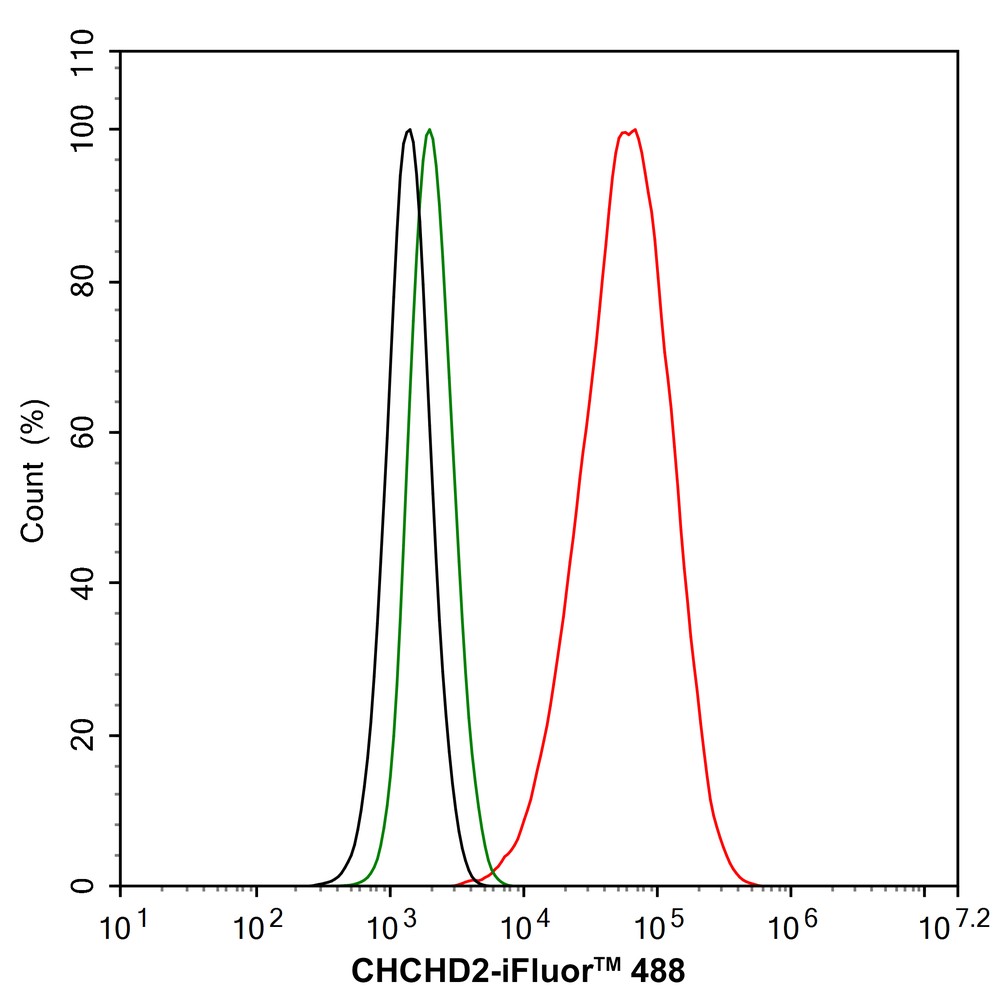

Fig3:
Flow cytometric analysis of A431 cells labeling CHCHD2. Cells were fixed and permeabilized. Then stained with the primary antibody (HA723580, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black). |
|

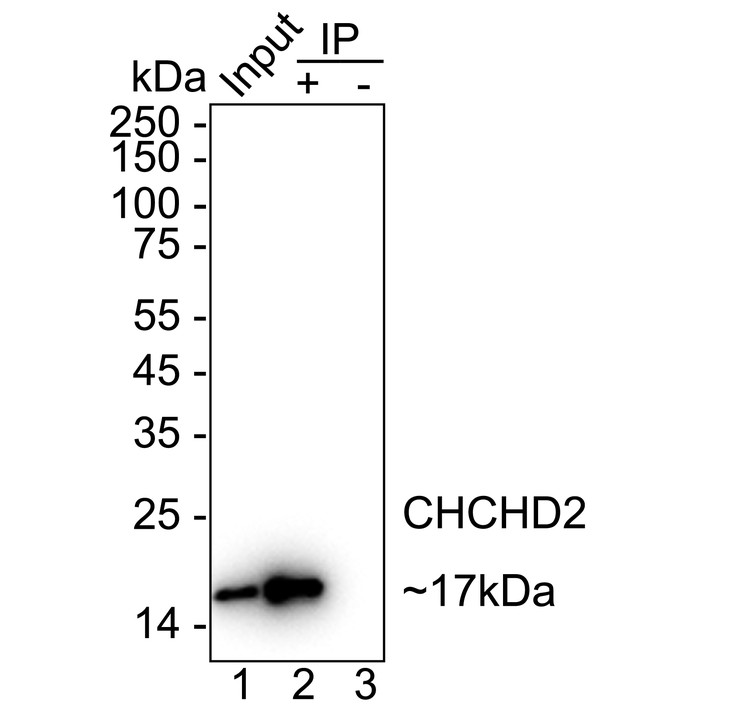

Fig4:
CHCHD2 was immunoprecipitated from 0.2 mg A431 cell lysate with HA723580 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using HA723580 at 1/5,000 dilution. HRP Conjugated Anti-Rabbit IgG for IP Nano-secondary antibody at 1/5,000 dilution was used for 1 hour at room temperature. Lane 1: A431 cell lysate (input) Lane 2: HA723580 IP in A431 cell lysate Lane 3: Rabbit IgG instead of HA723580 in A431 cell lysate Blocking/Dilution buffer: 5% NFDM/TBST Exposure time: 6 seconds; ECL: K1801 |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
