HA724006

TYK2 Recombinant Rabbit Monoclonal Antibody [PSH18-53]

cat.: HA724006

Product Type:	Recombinant Rabbit monoclonal IgG, primary antibodies
Species reactivity:	Human, Mouse, Rat, Monkey
Applications:	WB, IHC-P
Clonality:	Monoclonal
Clone number:	PSH18-53

Form:	Liquid
Storage condition:	Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.
Storage buffer:	PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Concentration:	1ug/ul
Purification:	Protein A affinity purified.
Molecular weight:	Predicted band size: 134 kDa
Isotype:	IgG
Immunogen:	Recombinant protein within human TYK2 aa 832-1,187.
Positive control:	HeLa cell lysate, HepG2 cell lysate, Neuro-2a cell lysate, PC-12 cell lysate, COS-1 cell lysate, mouse lung tissue lysate, rat lung tissue lysate, human kidney tissue, human lung tissue, mouse kidney tissue, mouse lung tissue, rat kidney tissue, rat lung tissue.
Subcellular location:	Cytoskeleton. Nucleus. Cytosol. Plasma membrane.
Recommended Dilutions: WB IHC-P	1:5,000 1:200-1:1,000
Uniprot #:	SwissProt: P29597 Human \| Q9R117 Mouse \| D3ZD03 Rat \| A0A5F7ZPU9 Monkey
Alternative names:	JTK 1 JTK1 Non receptor tyrosine protein kinase 2 Non receptor tyrosine protein kinase TYK2 Non-receptor tyrosine-protein kinase TYK2 OTTHUMP00000232745 OTTHUMP00000232746 OTTHUMP00000232748 Protein Tyrosine Kinase 2 TYK 2 Tyk2 TYK2_HUMAN Tyrosine kinase 2

Images

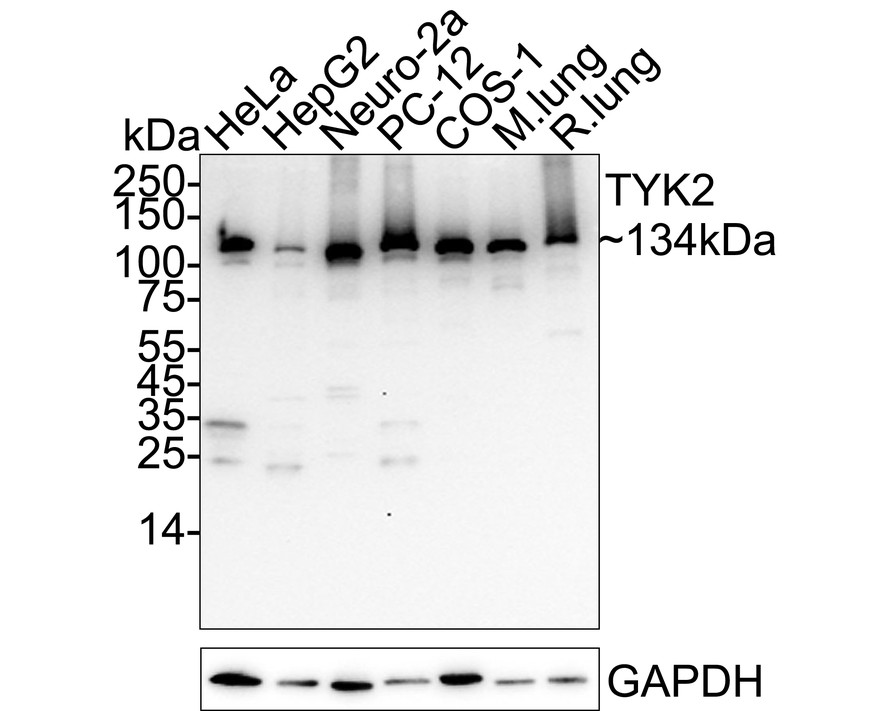

Fig1: Western blot analysis of TYK2 on different lysates with Rabbit anti-TYK2 antibody (HA724006) at 1/5,000 dilution.

Lane 1: HeLa cell lysate (20 µg/Lane)
Lane 2: HepG2 cell lysate (20 µg/Lane)
Lane 3: Neuro-2a cell lysate (20 µg/Lane)
Lane 4: PC-12 cell lysate (20 µg/Lane)
Lane 5: COS-1 cell lysate (20 µg/Lane)
Lane 6: Mouse lung tissue lysate (no heat) (40 µg/Lane)
Lane 7: Rat lung tissue lysate (40 µg/Lane)

Notice: no heat means the lysate is not boiled.

Predicted band size: 134 kDa
Observed band size: 134 kDa

Exposure time: 59 seconds; ECL: K1801;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA724006) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

Fig2: Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-TYK2 antibody (HA724006) at 1/200 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA724006) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

	Fig3: Immunohistochemical analysis of paraffin-embedded human lung tissue with Rabbit anti-TYK2 antibody (HA724006) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA724006) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
	Fig4: Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-TYK2 antibody (HA724006) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA724006) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
	Fig5: Immunohistochemical analysis of paraffin-embedded mouse lung tissue with Rabbit anti-TYK2 antibody (HA724006) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA724006) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Fig6: Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-TYK2 antibody (HA724006) at 1/1,000 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA724006) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Fig7: Immunohistochemical analysis of paraffin-embedded rat lung tissue with Rabbit anti-TYK2 antibody (HA724006) at 1/200 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA724006) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
