beta COP Recombinant Rabbit Monoclonal Antibody [PSH19-01]
cat.: HA724037
| Product Type: | Recombinant Rabbit monoclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human, Mouse, Rat, Monkey |
| Applications: | WB, IF-Cell, FC |
| Clonality: | Monoclonal |
| Clone number: | PSH19-01 |
| Form: | Liquid |
| Storage condition: | Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term. |
| Storage buffer: | 1*PBS (pH7.4), 0.1% BSA, 40% Glycerol, 0.2% Proclean 950. |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 107 kDa |
| Isotype: | IgG |
| Immunogen: | Synthetic peptide within human beta COP aa 571-620. |
| Positive control: | HeLa cell lysate, HCT 116 cell lysate, 293T cell lysate, NIH/3T3 cell lysate, C6 cell lysate, COS-1 cell lysate, Mouse liver tissue lysate, HeLa, NIH/3T3, C6. |
| Subcellular location: | Cytoplasm, Golgi apparatus membrane, Cytoplasmic vesicle, COPI-coated vesicle membrane, Cell membrane, Endoplasmic reticulum-Golgi intermediate compartment. |
| Recommended Dilutions:
WB IF-Cell FC |
1:5,000 1:250-1:2,000 1:1,000 |
| Uniprot #: | SwissProt: P53618 Human | Q9JIF7 Mouse | P23514 Rat |
| Alternative names: | Beta-coat protein Beta-COP betacop Coatomer beta subunit Coatomer protein complex subunit beta 1 Coatomer protein complex subunit beta Coatomer subunit beta COPB COPB_HUMAN Copb1 DKFZp761K102 FLJ10341 |
Images
|

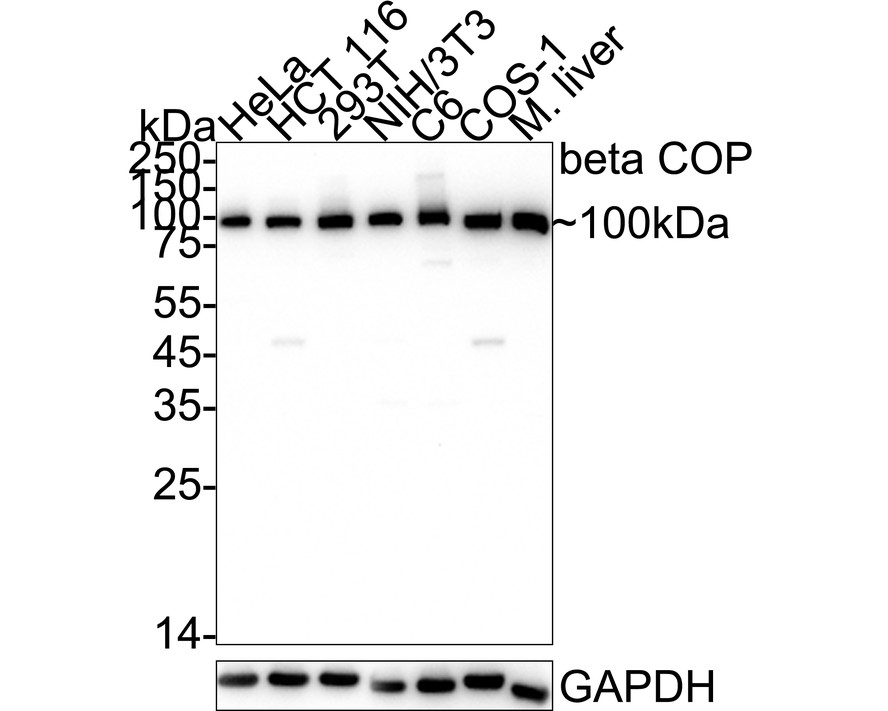

Fig1:
Western blot analysis of beta COP on different lysates with Rabbit anti-beta COP antibody (HA724037) at 1/5,000 dilution. Lane 1: HeLa cell lysate (20 µg/Lane) Lane 2: HCT 116 cell lysate (20 µg/Lane) Lane 3: 293T cell lysate (20 µg/Lane) Lane 4: NIH/3T3 cell lysate (20 µg/Lane) Lane 5: C6 cell lysate (20 µg/Lane) Lane 6: COS-1 cell lysate (20 µg/Lane) Lane 7: Mouse liver tissue lysate (30 µg/Lane) Predicted band size: 107 kDa Observed band size: 100 kDa Exposure time: 1 minute; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA724037) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|
Fig2:
Immunocytochemistry analysis of HeLa cells labeling beta COP with Rabbit anti-beta COP antibody (HA724037) at 1/250 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-beta COP antibody (HA724037) at 1/250 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution. |
|
Fig3:
Immunocytochemistry analysis of NIH/3T3 cells labeling beta COP with Rabbit anti-beta COP antibody (HA724037) at 1/2,000 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-beta COP antibody (HA724037) at 1/2,000 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution. |
|
Fig4:
Immunocytochemistry analysis of C6 cells labeling beta COP with Rabbit anti-beta COP antibody (HA724037) at 1/2,000 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-beta COP antibody (HA724037) at 1/2,000 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI. Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution. |
|

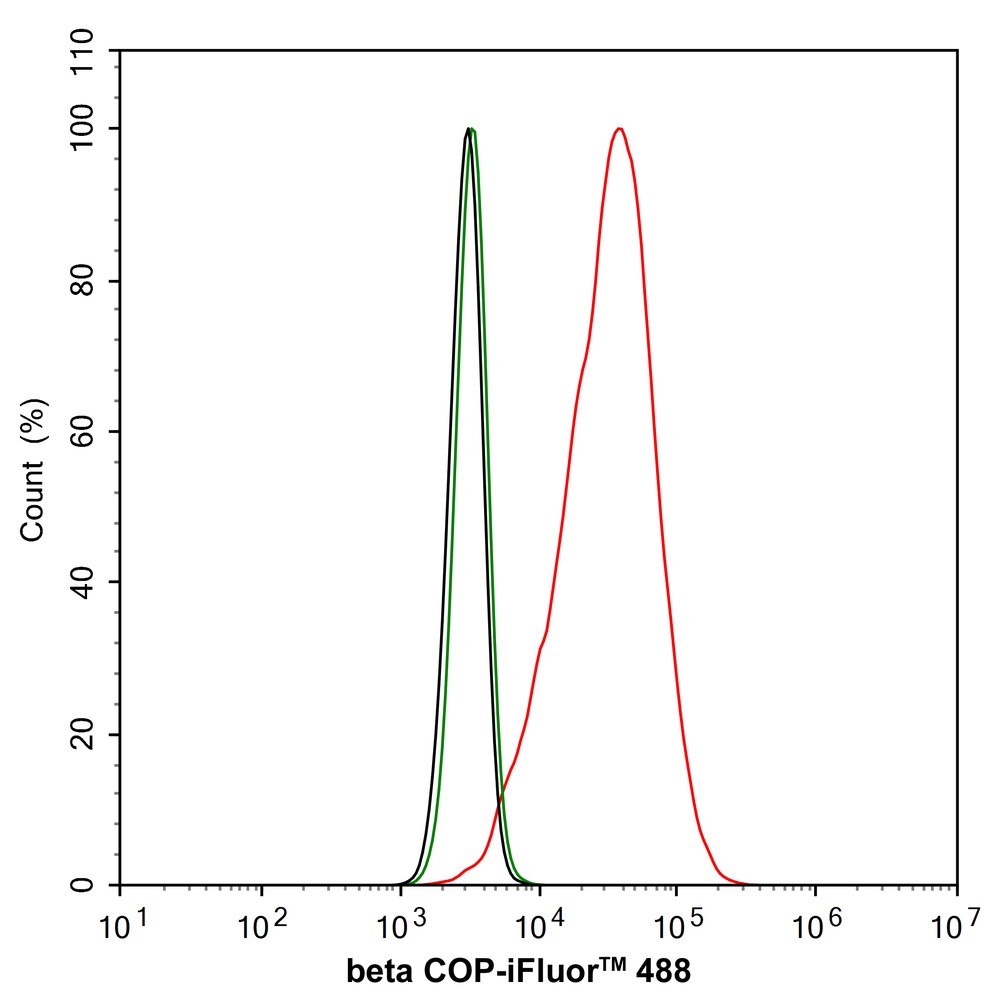

Fig5:
Flow cytometric analysis of HeLa cells labeling beta COP. Cells were fixed and permeabilized. Then stained with the primary antibody (HA724037, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black). |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
