TMEM106B Recombinant Rabbit Monoclonal Antibody [PSH19-19]
cat.: HA724053
| Product Type: | Recombinant Rabbit monoclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human, Mouse, Rat |
| Applications: | WB, IHC-P, IP |
| Clonality: | Monoclonal |
| Clone number: | PSH19-19 |
| Form: | Liquid |
| Storage condition: | Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term. |
| Storage buffer: | 1*PBS (pH7.4), 0.1% BSA, 40% Glycerol, 0.2% Proclean 950. |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 31 kDa |
| Isotype: | IgG |
| Immunogen: | Synthetic peptide within human TMEM106B aa 47-96. |
| Positive control: | PANC-1 cell lysate, A549 cell lysate, IMR-32 cell lysate, NIH/3T3 cell lysate, 3T3-L1 cell lysate, PC-12 cell lysate, C6 cell lysate, Mouse brain tissue lysate, Rat brain tissue lysate, human brain tissue, human testis tissue, mouse brain tissue, mouse testis tissue, rat brain tissue, rat testis tissue. |
| Subcellular location: | Late endosome membrane, Lysosome membrane, Cell membrane. |
| Recommended Dilutions:
WB IHC-P IP |
1:5,000 1:200 1-2μg/sample |
| Uniprot #: | SwissProt: Q9NUM4 Human | Q80X71 Mouse | Q6AYA5 Rat |
| Alternative names: | Transmembrane protein 106B TMEM106B |
Images
|
Fig1:

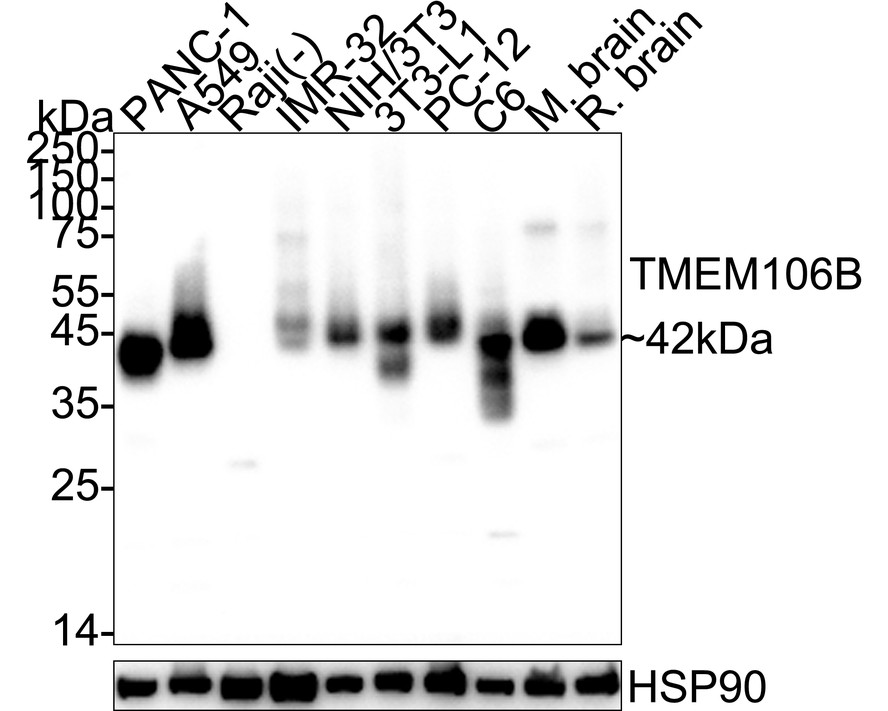

Western blot analysis of TMEM106B on different lysates with Rabbit anti-TMEM106B antibody (HA724053) at 1/5,000 dilution. Lane 1: PANC-1 cell lysate (20 µg/Lane) Lane 2: A549 cell lysate (20 µg/Lane) Lane 3: Raji cell lysate (negative) (20 µg/Lane) Lane 4: IMR-32 cell lysate (20 µg/Lane) Lane 5: NIH/3T3 cell lysate (20 µg/Lane) Lane 6: 3T3-L1 cell lysate (20 µg/Lane) Lane 7: PC-12 cell lysate (20 µg/Lane) Lane 8: C6 cell lysate (20 µg/Lane) Lane 9: Mouse brain tissue lysate (40 µg/Lane) Lane 10: Rat brain tissue lysate (40 µg/Lane) Predicted band size: 31 kDa Observed band size: 42 kDa Exposure time: 25 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA724053) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|
Fig2:
Immunohistochemical analysis of paraffin-embedded human brain tissue with Rabbit anti-TMEM106B antibody (HA724053) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA724053) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig3:
Immunohistochemical analysis of paraffin-embedded human testis tissue with Rabbit anti-TMEM106B antibody (HA724053) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA724053) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig4:
Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-TMEM106B antibody (HA724053) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA724053) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig5:
Immunohistochemical analysis of paraffin-embedded mouse testis tissue with Rabbit anti-TMEM106B antibody (HA724053) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA724053) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig6:
Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-TMEM106B antibody (HA724053) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA724053) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig7:
Immunohistochemical analysis of paraffin-embedded rat testis tissue with Rabbit anti-TMEM106B antibody (HA724053) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA724053) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig8:

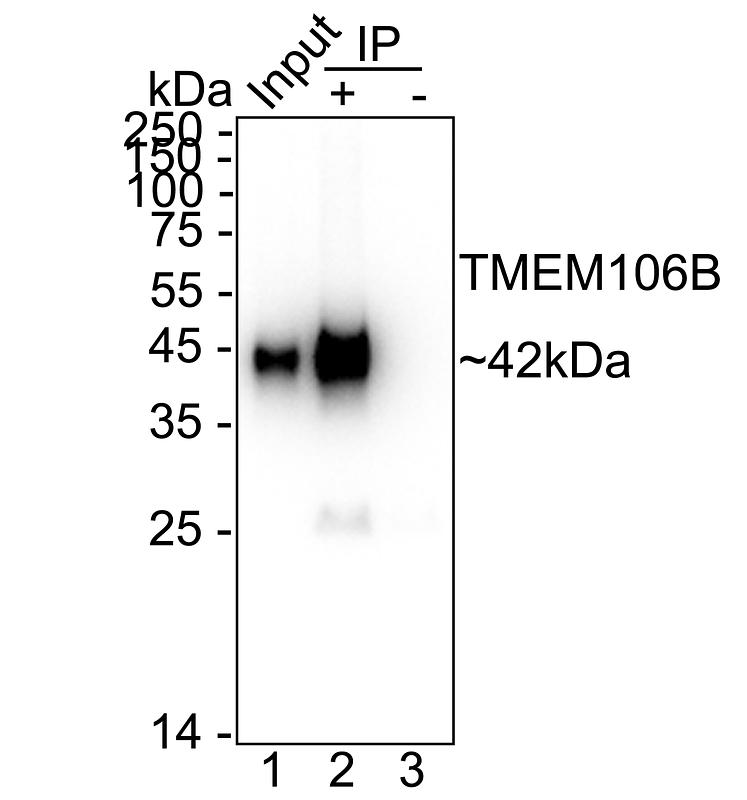

TMEM106B was immunoprecipitated from 0.2 mg PANC-1 cell lysate with HA724053 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using HA724053 at 1/5,000 dilution. HRP Conjugated Anti-Rabbit IgG for IP Nano-secondary antibody at 1/5,000 dilution was used for 1 hour at room temperature. Lane 1: PANC-1 cell lysate (input) Lane 2: HA724053 IP in PANC-1 cell lysate Lane 3: Rabbit IgG instead of HA724053 in PANC-1 cell lysate Blocking/Dilution buffer: primary antibody dilution (K1803) Exposure time: 6 seconds; ECL: K1801 |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
