PKC delta Recombinant Rabbit Monoclonal Antibody [JJ093-02]
cat.: HA750325
Product Type: Recombinant Rabbit monoclonal IgG, primary antibodies
Species reactivity: Human, Mouse, Rat
Applications: WB, IF-Cell, IF-Tissue, IHC-P
Clonality: Monoclonal
Clone number: JJ093-02
Form: Liquid
Storage condition: Store at 2-8℃. Avoid freeze.
Storage buffer: 1*PBS (pH7.4).
Concentration: 1ug/ul
Purification: Protein A affinity purified.
Molecular weight: Predicted band size: 78 kDa
Isotype: IgG
Immunogen: Recombinant protein within mouse PKC delta aa 525-671 / 676.
Positive control: HeLa cell lysate, Jurkat cell lysate, Mouse brain tissue lysate, Rat brain tissue lysate, RH-35, mouse brain tissue, rat brain tissue, human tonsil tissue, human liver tissue, human spleen tissue, human breast carcinoma tissue, mouse testis tissue, mouse liver tissue.
Subcellular location: Cytoplasm, Nucleus, Cell membrane.
Uniprot #: SwissProt: Q05655 Human | P28867 Mouse | P09215 Rat
Alternative names: CVID9 D14Ertd420e Kinase PKC delta KPCD KPCD_HUMAN MAY 1 MAY1 MGC49908 nPKC delta nPKC-delta PCKd PKC d PKC delta PKCD PKCdelta PRKC D PRKC delta Prkcd Protein Kinase C delta Protein kinase C delta type Protein kinase C delta VIII Protein Kinase Cdelta Tyrosine protein kinase PRKCD
Images

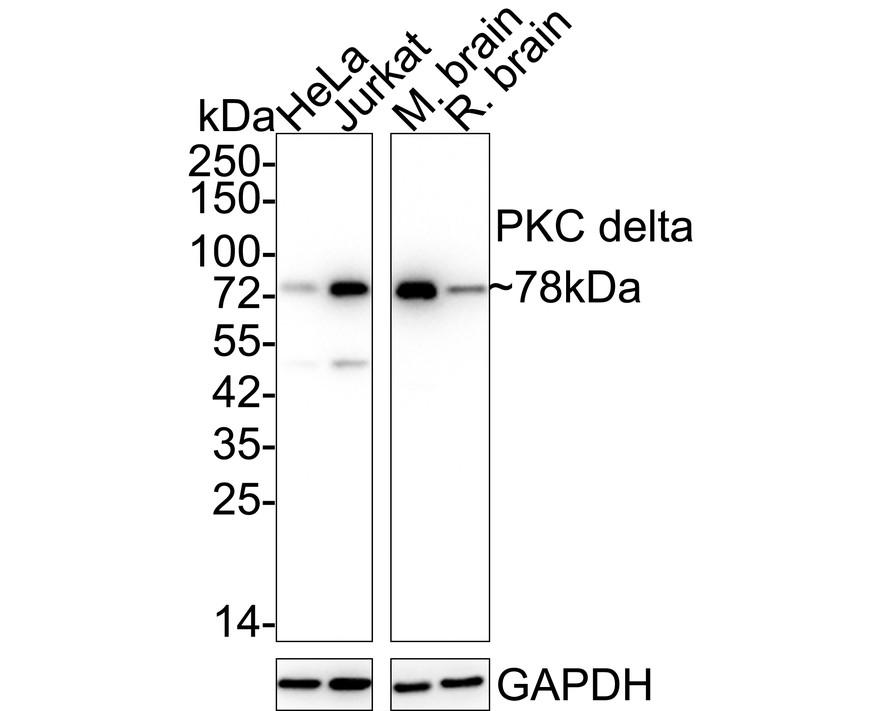

HA750325_1.jpg Fig1: This data was developed using HA750325, the same antibody clone in a different buffer formulation.
Western blot analysis of PKC delta on different lysates with Rabbit anti-PKC delta antibody (HA750325) at 1/5,000 dilution.

Lane 1: HeLa cell lysate (15 µg/Lane)
Lane 2: Jurkat cell lysate (15 µg/Lane)
Lane 3: Mouse brain tissue lysate (20 µg/Lane)
Lane 4: Rat brain tissue lysate (20 µg/Lane)

Predicted band size: 78 kDa
Observed band size: 78 kDa

Exposure time: 1 minute 40 seconds; ECL: K1801;
4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750325) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

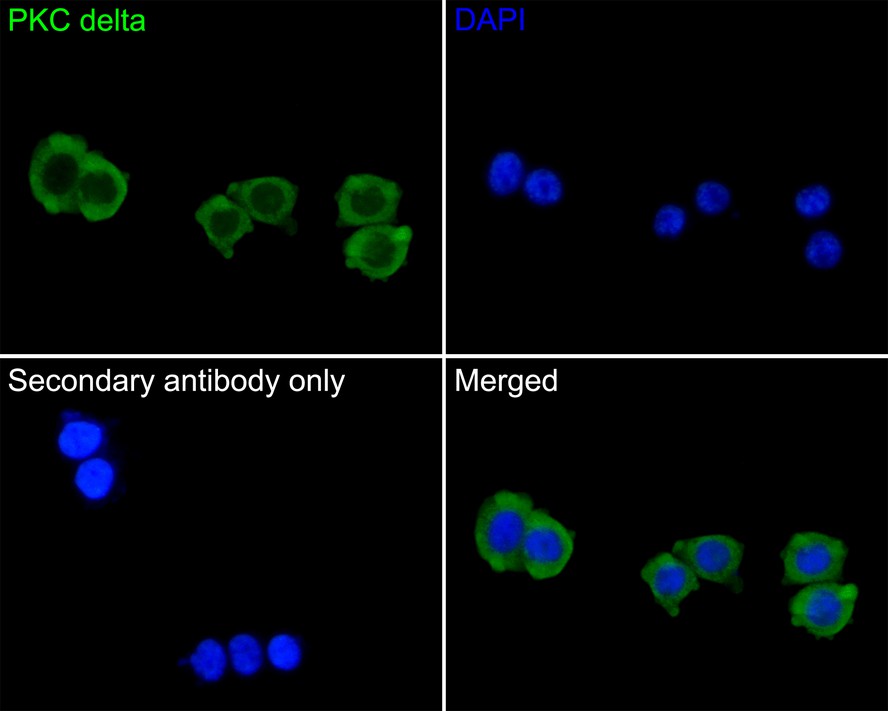

HA750325_2.jpg Fig2: This data was developed using HA750325, the same antibody clone in a different buffer formulation.
Immunocytochemistry analysis of RH-35 cells labeling PKC delta with Rabbit anti-PKC delta antibody (HA750325) at 1/50 dilution.

Cells were fixed in 4% paraformaldehyde for 10 minutes at 37 ℃, permeabilized with 0.05% Triton X-100 in PBS for 20 minutes, and then blocked with 2% negative goat serum for 30 minutes at room temperature. Cells were then incubated with Rabbit anti-PKC delta antibody (HA750325) at 1/50 dilution in 2% negative goat serum overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

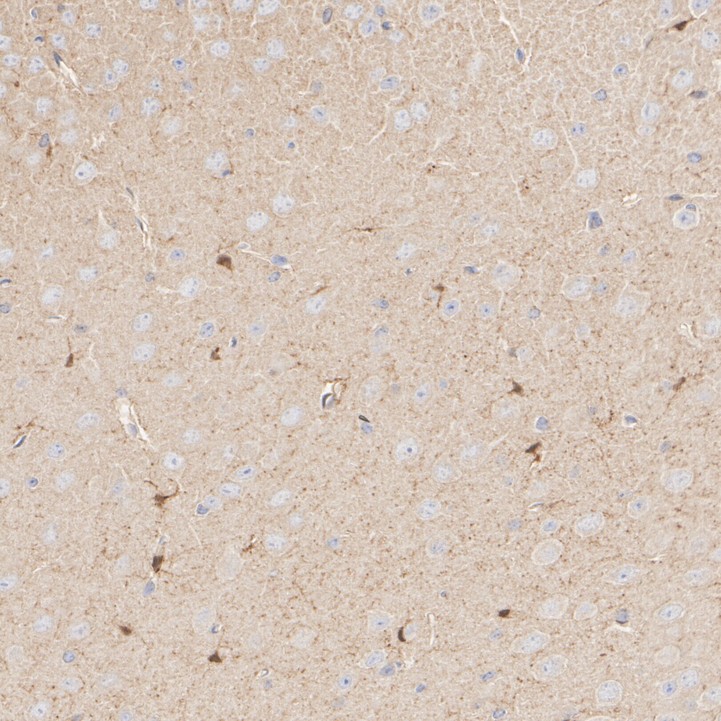

HA750325_3.jpg Fig3: This data was developed using HA750325, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-PKC delta antibody (HA750325) at 1/200 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750325) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

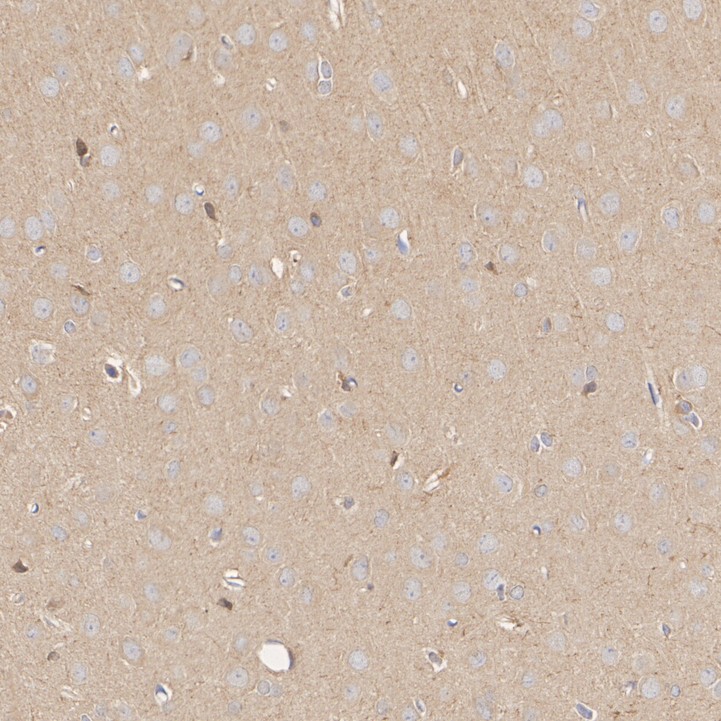

HA750325_4.jpg Fig4: This data was developed using HA750325, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-PKC delta antibody (HA750325) at 1/200 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750325) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

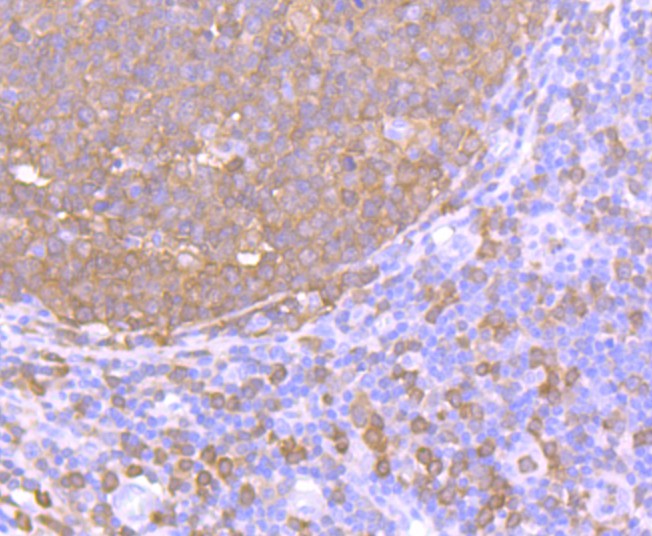

HA750325_5.jpg Fig5: This data was developed using HA750325, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded human tonsil tissue using anti-PKC delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750325, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
HA750325_6.jpg Fig6: This data was developed using HA750325, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded human liver tissue using anti-PKC delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750325, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

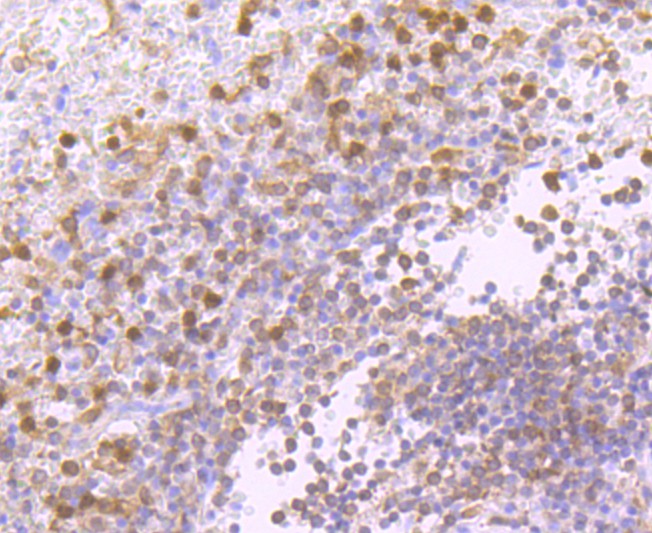

HA750325_7.jpg Fig7: This data was developed using HA750325, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded human spleen tissue using anti-PKC delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750325, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
HA750325_8.jpg Fig8: This data was developed using HA750325, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded human breast carcinoma tissue using anti-PKC delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750325, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
HA750325_9.jpg Fig9: This data was developed using HA750325, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded mouse testis tissue using anti-PKC delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750325, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

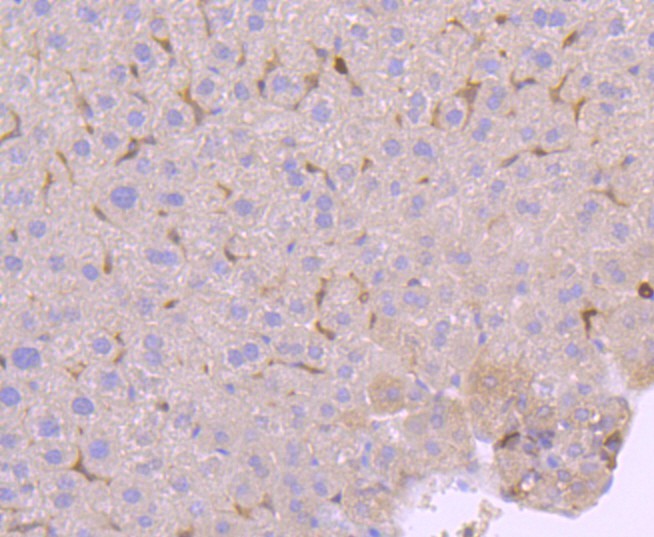

HA750325_10.jpg Fig10: This data was developed using HA750325, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded mouse liver tissue using anti-PKC delta antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750325, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
