PD-L1 Recombinant Rabbit Monoclonal Antibody [PSH04-80]
cat.: HA750974
| Product Type: | Recombinant Rabbit monoclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Mouse |
| Applications: | WB, IHC-P |
| Clonality: | Monoclonal |
| Clone number: | PSH04-80 |
| Form: | Liquid |
| Storage condition: | Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles. |
| Storage buffer: | 1*PBS (pH7.4). |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 33 kDa |
| Isotype: | IgG |
| Immunogen: | Recombinant protein within mouse PD-L1 aa 1-250 / 290. |
| Positive control: | RAW264.7 treated with 10μg/mL LPS for 8 hours cell lysate, J774A.1 treated with 1μg/mL LPS for 24 hours cell lysate, mouse spleen tissue lysate, mouse thymus tissue, mouse lung tissue. |
| Subcellular location: | Cell membrane, Early endosome membrane, Recycling endosome membrane. |
| Recommended Dilutions:
WB IHC-P |
1:2,000 1:200 |
| Uniprot #: | SwissProt: Q9EP73 Mouse |
| Alternative names: | B7 H B7 H1 B7 homolog 1 B7-H1 B7H B7H1 CD 274 CD-274 CD274 CD274 antigen CD274 molecule MGC142294 MGC142296 OTTHUMP00000021029 PD L1 PD-L1 PD1L1_HUMAN PDCD1 ligand 1 PDCD1L1 PDCD1LG1 PDL 1 PDL1 Programmed cell death 1 ligand 1 Programmed death ligand 1 RGD1566211 |
Images
|
Fig1:

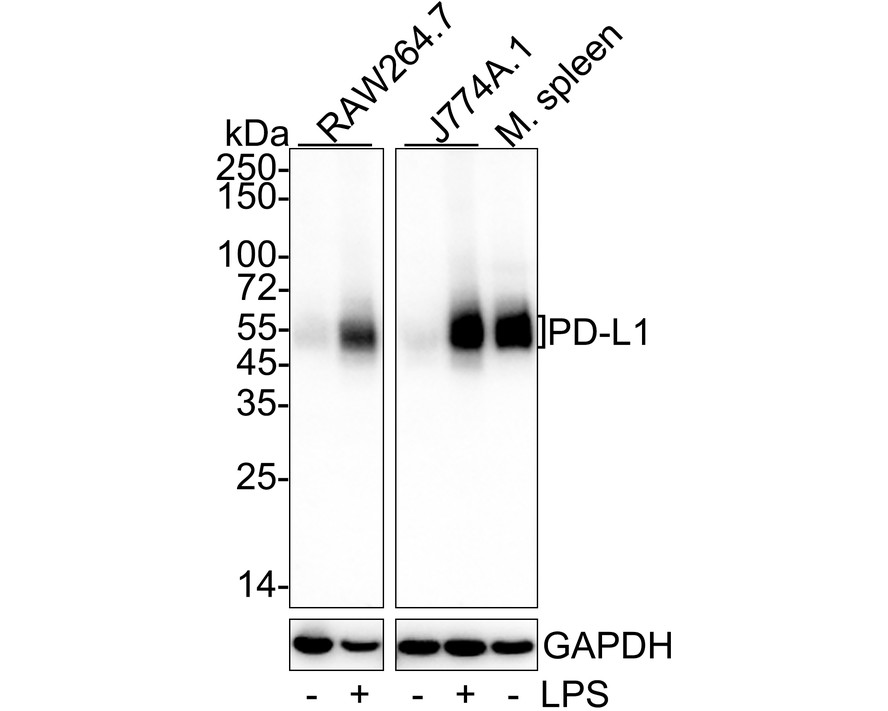

Western blot analysis of PD-L1 on different lysates with Rabbit anti-PD-L1 antibody (HA750974) at 1/2,000 dilution. Lane 1: RAW264.7 cell lysate Lane 2: RAW264.7 treated with 10μg/mL LPS for 8 hours cell lysate Lane 3: J774A.1 cell lysate Lane 4: J774A.1 treated with 1μg/mL LPS for 24 hours cell lysate Lane 5: Mouse spleen tissue lysate Lysates/proteins at 30 µg/Lane. Predicted band size: 33 kDa Observed band size: 45-60 kDa Exposure time: 46 seconds; ECL: K1802; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA750974) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|
Fig2:
Immunohistochemical analysis of paraffin-embedded mouse thymus tissue with Rabbit anti-PD-L1 antibody (HA750974) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750974) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig3:
Immunohistochemical analysis of paraffin-embedded mouse lung tissue with Rabbit anti-PD-L1 antibody (HA750974) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA750974) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
