CD20 Recombinant Rabbit Monoclonal Antibody [PSH08-12]
cat.: HA751207
Product Type: Recombinant Rabbit monoclonal IgG, primary antibodies
Species reactivity: Human
Applications: WB, IF-Cell, IHC-P, FC, IP
Clonality: Monoclonal
Clone number: PSH08-12
Form: Liquid
Storage condition: Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.
Storage buffer: 1*PBS (pH7.4).
Concentration: 1ug/ul
Purification: Protein A affinity purified.
Molecular weight: Predicted band size: 33 kDa
Isotype: IgG
Immunogen: Recombinant protein within human CD20 aa 121-209.
Positive control: Raji cell lysate, Ramos cell lysate, Daudi cell lysate, human spleen tissue, Raji.
Subcellular location: Cell membrane.
Recommended Dilutions:
  WB
  IF-Cell
  IHC-P
  FC
  IP
1:10,000
1:100
1:200
1:1,000
1-2μg/sample
Uniprot #: SwissProt: P11836 Human
Alternative names: APY ATOPY B lymphocyte antigen CD20 B Lymphocyte Cell Surface Antigen B1 B-lymphocyte antigen CD20 B-lymphocyte cell-surface antigen B1 B-lymphocyte surface antigen B1 B1 Bp 35 Bp35 CD 20 CD20 CD20 antigen CD20 receptor CD20_HUMAN CVID 5 CVID5 Fc epsilon receptor I beta chain Fc Fragment of IgE high affinity I receptor for beta polypeptide FCER1B High affinity immunoglobulin epsilon receptor subunit beta IgE Fc receptor subunit beta IGEL IGER IGHER LEU 16 Leu-16 LEU16 leukocyte surface antigen Leu 16 Leukocyte surface antigen Leu-16 Ly44 Membrane spanning 4 domains A1 Membrane spanning 4 domains subfamily A member 2 membrane-spanning 4-domains A1 Membrane-spanning 4-domains subfamily A member 1 MGC3969 MS4A1 MS4A2 S7
Images

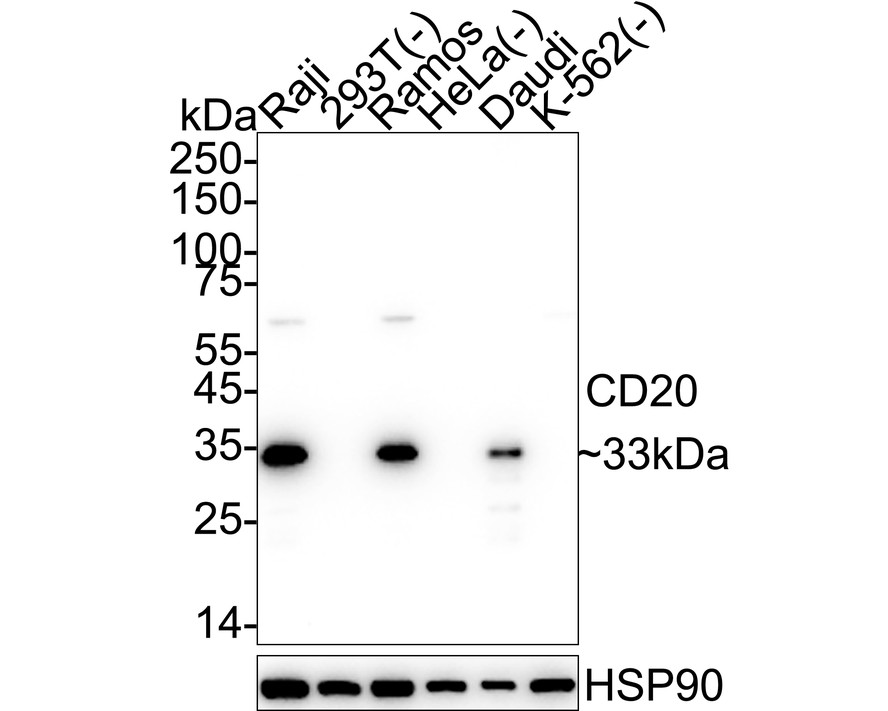

HA751207_1.jpg Fig1: Western blot analysis of CD20 on different lysates with Rabbit anti-CD20 antibody (HA751207) at 1/10,000 dilution.

Lane 1: Raji cell lysate
Lane 2: 293T cell lysate (negative)
Lane 3: Ramos cell lysate
Lane 4: HeLa cell lysate (negative)
Lane 5: Daudi cell lysate
Lane 6: K-562 cell lysate (negative)

Lysates/proteins at 20 µg/Lane.

Predicted band size: 33 kDa
Observed band size: 33 kDa

Exposure time: 30 seconds; ECL: K1801;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA751207) at 1/10,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
HA751207_2.jpg Fig2: Immunocytochemistry analysis of Raji (positive) and 293T (negative) labeling CD20 with Rabbit anti-CD20 antibody (HA751207) at 1/100 dilution.

Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-CD20 antibody (HA751207) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.
HA751207_3.jpg Fig3: Immunohistochemical analysis of paraffin-embedded human spleen tissue with Rabbit anti-CD20 antibody (HA751207) at 1/200 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751207) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

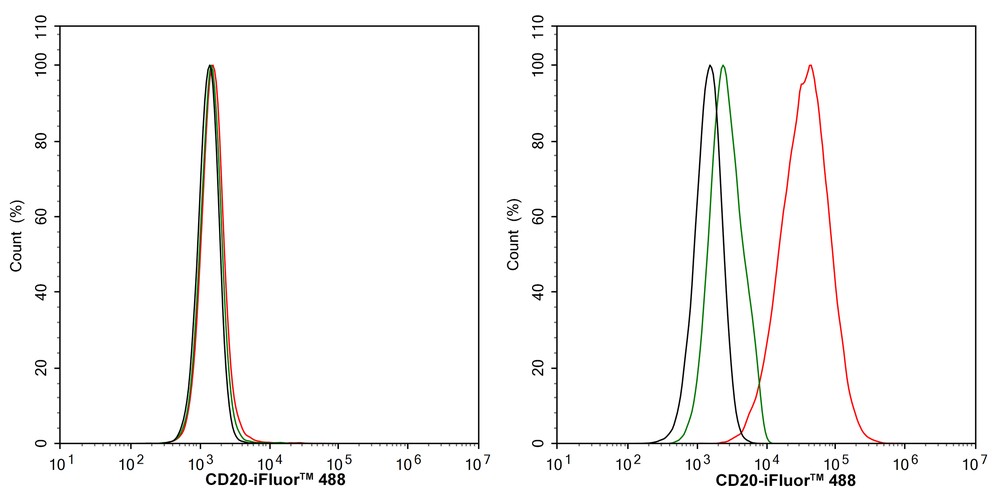

HA751207_4.jpg Fig4: Flow cytometric analysis of 293T (left, negative) and Raji (right, positive) cells labeling CD20.

Cells were washed twice with cold PBS and resuspend. Then stained with the primary antibody (HA751207, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

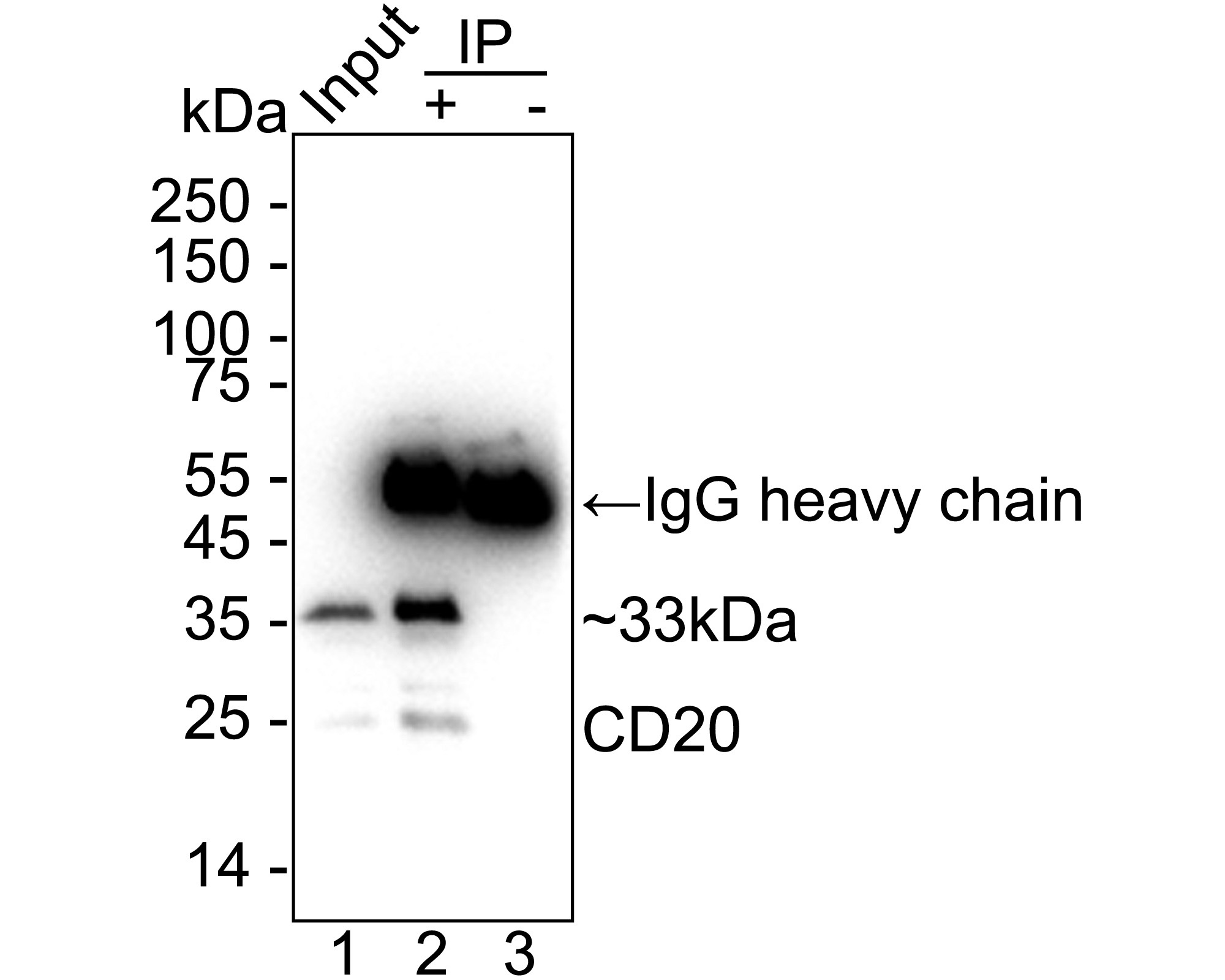

HA751207_5.jpg Fig5: CD20 was immunoprecipitated from 0.2 mg Raji cell lysate with HA751207 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using HA751207 at 1/1,000 dilution. Mouse anti Rabbit IgG heavy chain (Fc) secondary antibody (M1003-7) at 1/100,000 dilution was used for 1 hour at room temperature.

Lane 1: Raji cell lysate (input)
Lane 2: HA751207 IP in Raji cell lysate
Lane 3: Rabbit IgG instead of HA751207 in Raji cell lysate

Blocking/Dilution buffer: 5% NFDM/TBST
Exposure time: 30 seconds; ECL: K1801

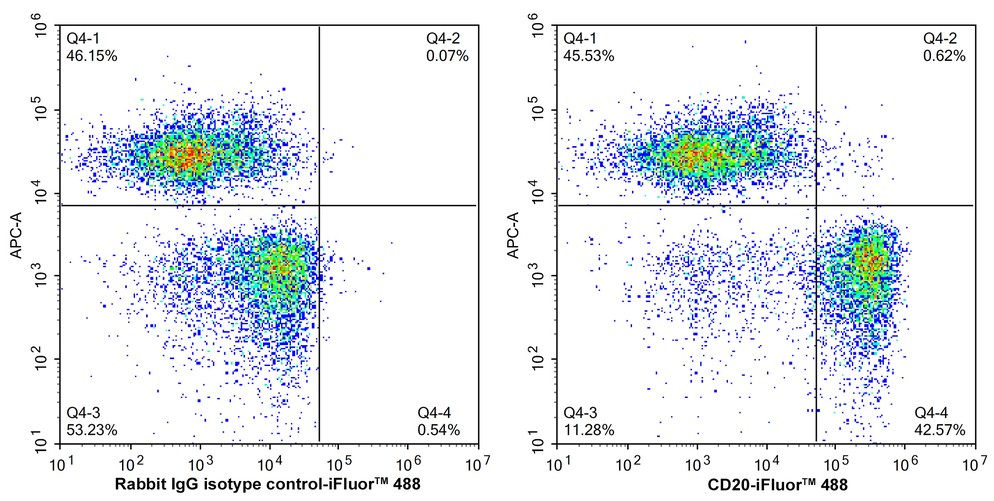

HA751207_6.jpg Fig6: Flow cytometric analysis of human PBMC labelling CD20 (HA751207).
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
