HA751373

Pin1 Recombinant Rabbit Monoclonal Antibody [PSH10-81]

cat.: HA751373

Product Type:	Recombinant Rabbit monoclonal IgG, primary antibodies
Species reactivity:	Human, Mouse, Rat
Applications:	WB, IF-Cell, IHC-P, IP
Clonality:	Monoclonal
Clone number:	PSH10-81

Form:	Liquid
Storage condition:	Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.
Storage buffer:	1*PBS (pH7.4).
Concentration:	1ug/ul
Purification:	Protein A affinity purified.
Molecular weight:	Predicted band size: 18 kDa
Isotype:	IgG
Immunogen:	Recombinant protein within human Pin1 aa 1-163.
Positive control:	HeLa cell lysate, MCF7 cell lysate, Huh7 cell lysate, NIH/3T3 cell lysate, C6 cell lysate, Mouse brain tissue lysate, Rat brain tissue lysate, HeLa, NIH/3T3, C6, mouse liver tissue, mouse pancreas tissue, rat liver tissue, rat pancreas tissue, human pancreas tissue.
Subcellular location:	Nucleus, Nucleus speckle, Cytoplasm.
Recommended Dilutions: WB IF-Cell IHC-P IP	1:2,000 1:100 1:50-1:1,000 1-2μg/sample
Uniprot #:	SwissProt: Q13526 Human \| Q9QUR7 Mouse Entrez Gene: 298696 Rat
Alternative names:	DOD DODO, Drosophila, homolog of FLJ40239 FLJ77628 MGC10717 NIMA interacting 1 Peptidyl prolyl cis trans isomerase NIMA interacting 1 Peptidyl prolyl cis/trans isomerase NIMA interacting Peptidyl-prolyl cis-trans isomerase NIMA-interacting 1 Peptidyl-prolyl cis-trans isomerase pin1 Peptidylprolyl cis/trans isomerase NIMA interacting 1 Pin 1 Pin1 PIN1_HUMAN PPIase Pin1 Prolyl isomerase Protein (peptidylprolyl cis/trans isomerase) NIMA interacting 1 Protein NIMA interacting 1 Rotamase Pin1 UBL 5 UBL5

Images

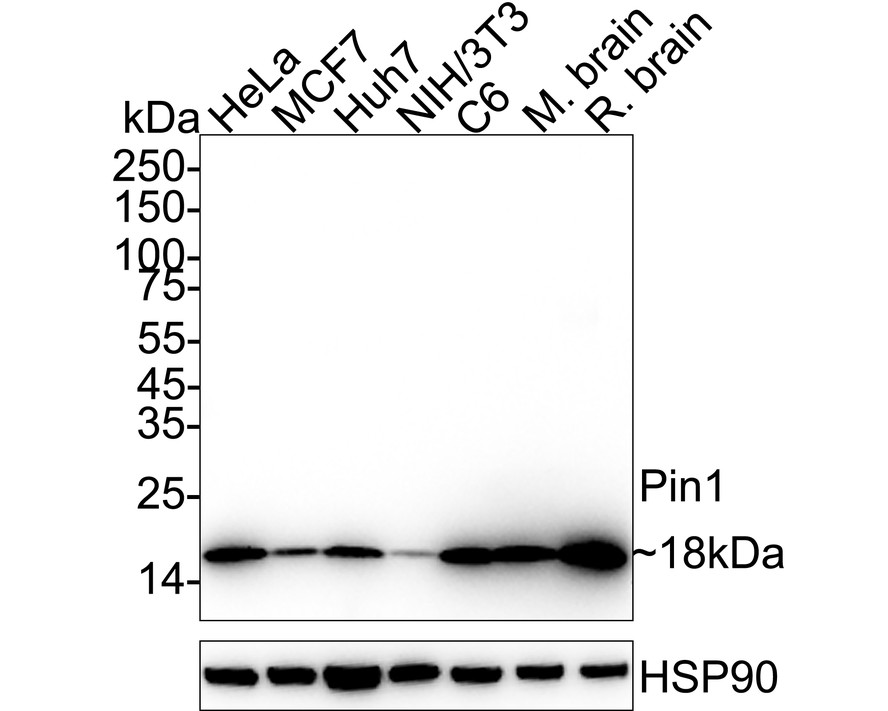

Fig1: Western blot analysis of Pin1 on different lysates with Rabbit anti-Pin1 antibody (HA751373) at 1/2,000 dilution.

Lane 1: HeLa cell lysate (20 µg/Lane)
Lane 2: MCF7 cell lysate (20 µg/Lane)
Lane 3: Huh7 cell lysate (20 µg/Lane)
Lane 4: NIH/3T3 cell lysate (20 µg/Lane)
Lane 5: C6 cell lysate (20 µg/Lane)
Lane 6: Mouse brain tissue lysate (40 µg/Lane)
Lane 7: Rat brain tissue lysate (40 µg/Lane)

Predicted band size: 18 kDa
Observed band size: 18 kDa

Exposure time: 1 minute; ECL: K1801;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA751373) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

Fig2: Immunocytochemistry analysis of HeLa cells labeling Pin1 with Rabbit anti-Pin1 antibody (HA751373) at 1/100 dilution.

Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Pin1 antibody (HA751373) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

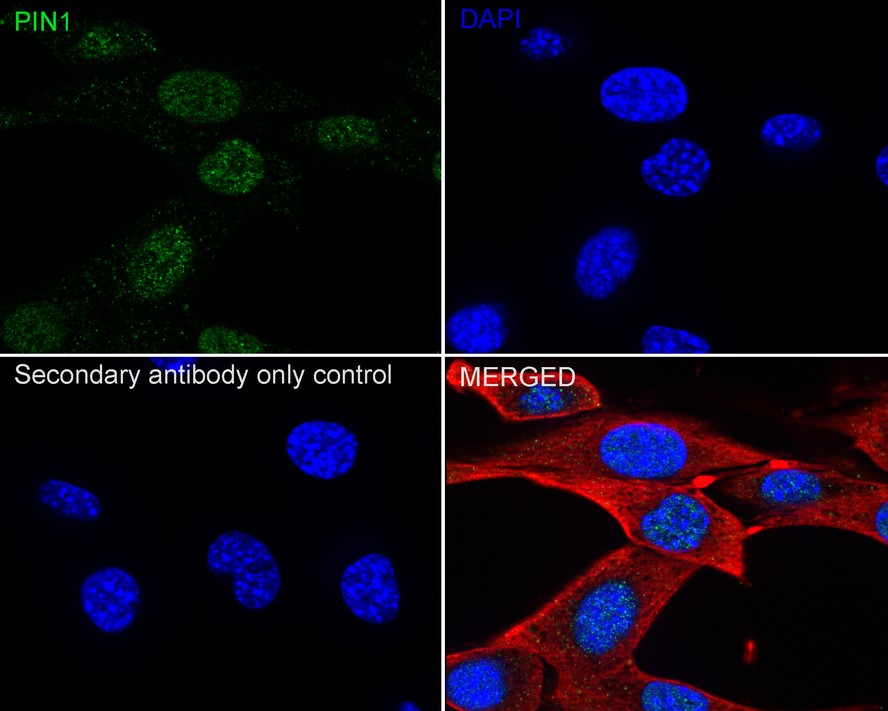

Fig3: Immunocytochemistry analysis of NIH/3T3 cells labeling Pin1 with Rabbit anti-Pin1 antibody (HA751373) at 1/100 dilution.

Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Pin1 antibody (HA751373) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

Fig4: Immunocytochemistry analysis of C6 cells labeling Pin1 with Rabbit anti-Pin1 antibody (HA751373) at 1/100 dilution.

Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-Pin1 antibody (HA751373) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

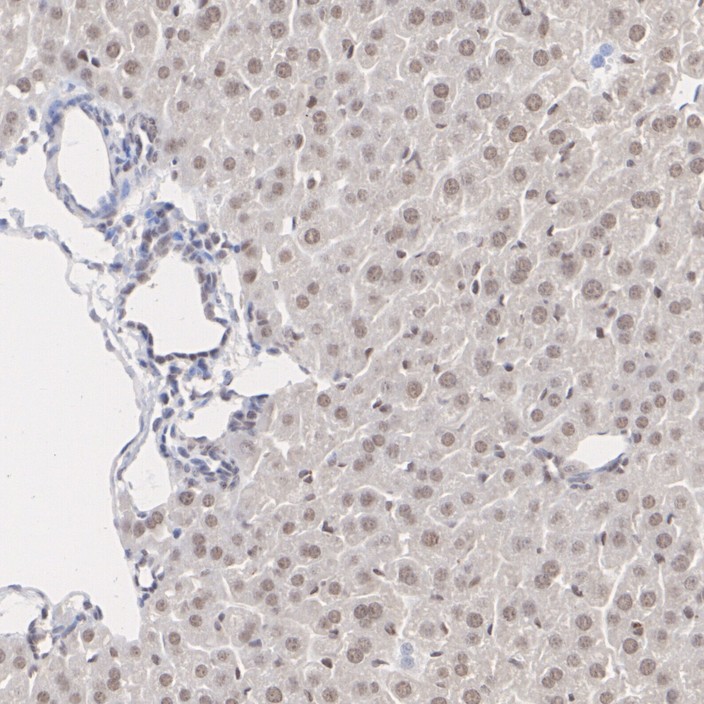

	Fig5: Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-Pin1 antibody (HA751373) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA751373) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

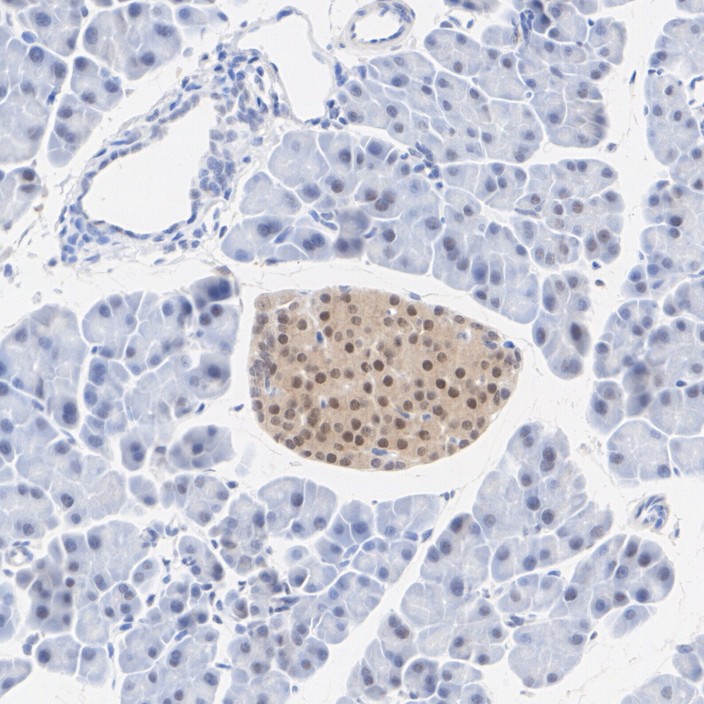

	Fig6: Immunohistochemical analysis of paraffin-embedded mouse pancreas tissue with Rabbit anti-Pin1 antibody (HA751373) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA751373) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

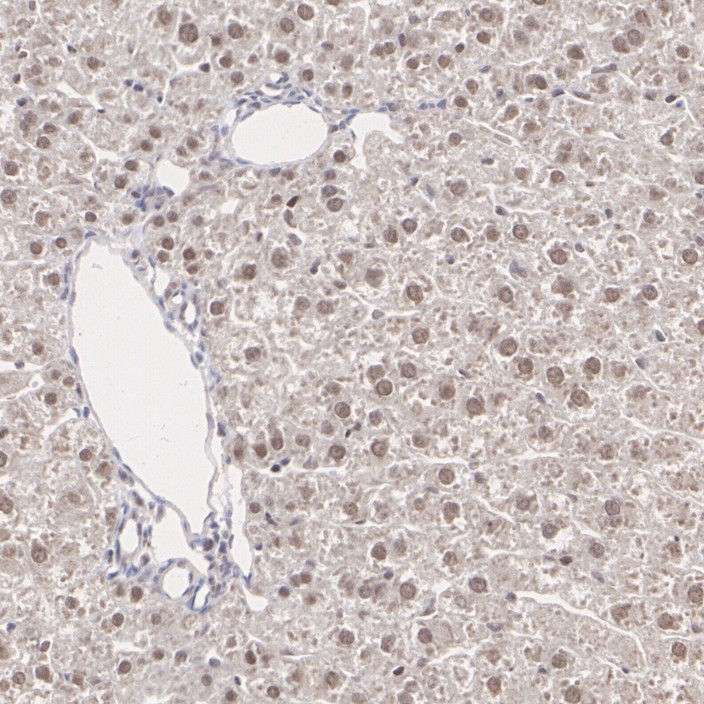

	Fig7: Immunohistochemical analysis of paraffin-embedded rat liver tissue with Rabbit anti-Pin1 antibody (HA751373) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA751373) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

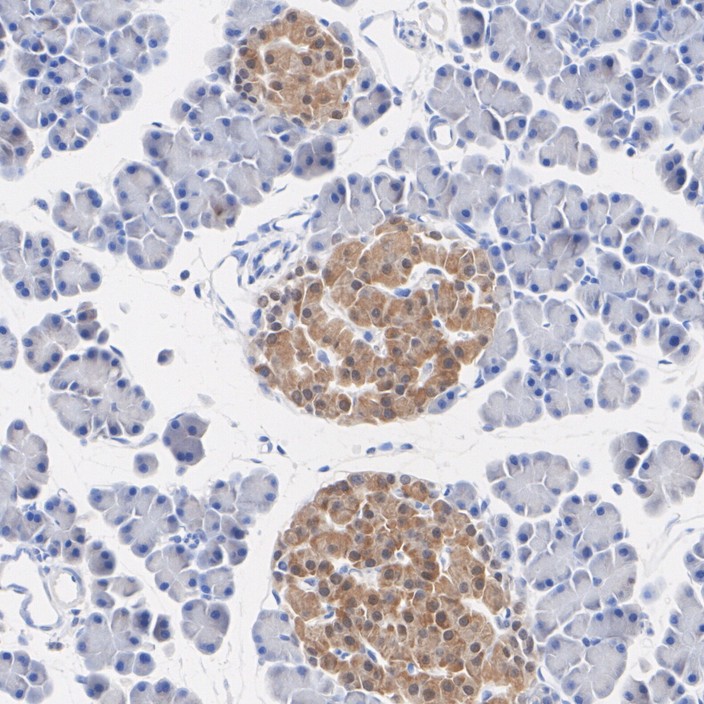

	Fig8: Immunohistochemical analysis of paraffin-embedded rat pancreas tissue with Rabbit anti-Pin1 antibody (HA751373) at 1/1,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA751373) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

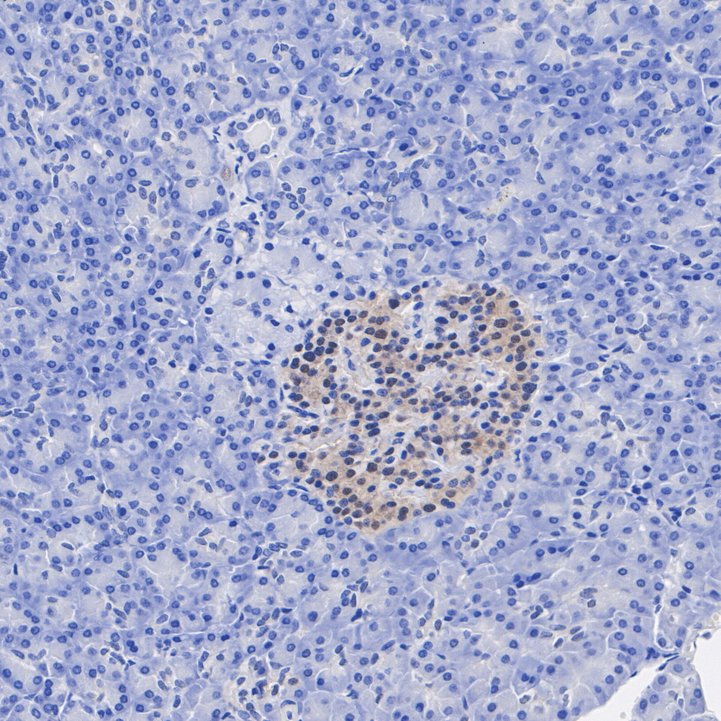

	Fig9: Immunohistochemical analysis of paraffin-embedded human pancreas tissue with Rabbit anti-Pin1 antibody (HA751373) at 1/50 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA751373) at 1/50 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

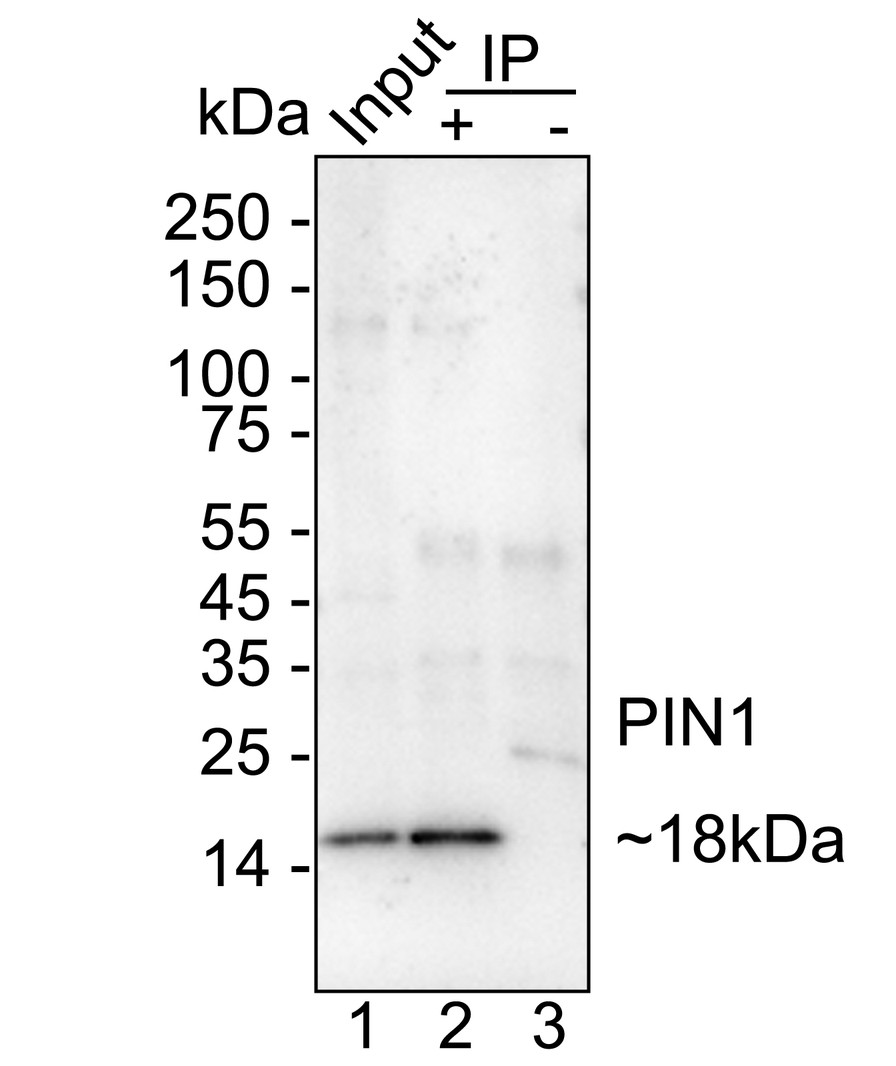

	Fig10: Pin1 was immunoprecipitated from 0.2 mg HeLa cell lysate with HA751373 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using HA751373 at 1/1,000 dilution. HRP Conjugated Anti-Rabbit IgG for IP Nano-secondary antibody at 1/5,000 dilution was used for 1 hour at room temperature. Lane 1: HeLa cell lysate (input) Lane 2: HA751373 IP in HeLa cell lysate Lane 3: Rabbit IgG instead of HA751373 in HeLa cell lysate Blocking/Dilution buffer: 5% NFDM/TBST Exposure time: 1 minute 7 seconds; ECL: K1802

Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
