ATPase Inhibitory Factor 1 / IF1 Recombinant Rabbit Monoclonal Antibody [PSH16-94]
cat.: HA751608
| Product Type: | Recombinant Rabbit monoclonal IgG, primary antibodies |
|---|---|
| Species reactivity: | Human, Monkey |
| Applications: | WB, IF-Cell, IHC-P, FC, IP |
| Clonality: | Monoclonal |
| Clone number: | PSH16-94 |
| Form: | Liquid |
| Storage condition: | Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles. |
| Storage buffer: | 1*PBS (pH7.4). |
| Concentration: | 1ug/ul |
| Purification: | Protein A affinity purified. |
| Molecular weight: | Predicted band size: 12 kDa |
| Isotype: | IgG |
| Immunogen: | Recombinant protein within human ATPase Inhibitory Factor 1 aa 1-106. |
| Positive control: | HeLa cell lysate, K-562 cell lysate, MCF7 cell lysate, HepG2 cell lysate, HT-29 cell lysate, COS-1 cell lysate, HeLa, human colon carcinoma tissue, human liver tissue, human heart tissue. |
| Subcellular location: | Mitochondrion. |
| Recommended Dilutions:
WB IF-Cell IHC-P FC IP |
1:5,000 1:1,000 1:5,000-1:20,000 1:1,000 1-2μg/sample |
| Uniprot #: | SwissProt: Q9UII2 Human |
| Alternative names: | ATIF1_HUMAN ATP synthase inhibitor protein ATPase inhibitor ATPase inhibitor mitochondrial ATPase inhibitor protein ATPase inhibitory factor 1 ATPI ATPIF 1 Atpif1 ATPIP IF(1) IF1 Inhibitor of F(1)F(o)-ATPase IP MGC1167 MGC8898 mitochondrial |
Images
|
Fig1:

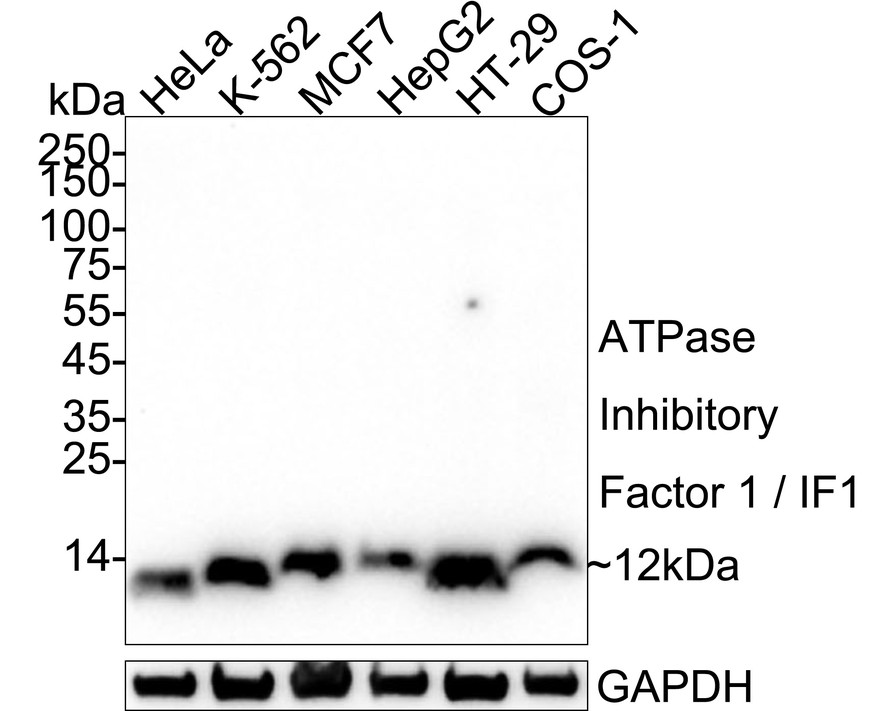

Western blot analysis of ATPase Inhibitory Factor 1 / IF1 on different lysates with Rabbit anti-ATPase Inhibitory Factor 1 / IF1 antibody (HA751608) at 1/5,000 dilution. Lane 1: HeLa cell lysate Lane 2: K-562 cell lysate Lane 3: MCF7 cell lysate Lane 4: HepG2 cell lysate Lane 5: HT-29 cell lysate Lane 6: COS-1 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 12 kDa Observed band size: 12 kDa Exposure time: 1 minute 50 seconds; ECL: K1801; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA751608) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|
Fig2:
Immunocytochemistry analysis of HeLa cells labeling ATPase Inhibitory Factor 1 / IF1 with Rabbit anti-ATPase Inhibitory Factor 1 / IF1 antibody (HA751608) at 1/1,000 dilution. Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-ATPase Inhibitory Factor 1 / IF1 antibody (HA751608) at 1/1,000 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Counterstained with Mitotracker. Nuclear DNA was labelled in blue with DAPI. |
|
Fig3:
Immunohistochemical analysis of paraffin-embedded human colon carcinoma tissue with Rabbit anti-ATPase Inhibitory Factor 1 / IF1 antibody (HA751608) at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751608) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig4:
Immunohistochemical analysis of paraffin-embedded human liver tissue with Rabbit anti-ATPase Inhibitory Factor 1 / IF1 antibody (HA751608) at 1/5,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751608) at 1/5,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig5:
Immunohistochemical analysis of paraffin-embedded human heart tissue with Rabbit anti-ATPase Inhibitory Factor 1 / IF1 antibody (HA751608) at 1/20,000 dilution. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA751608) at 1/20,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. |
|
Fig6:

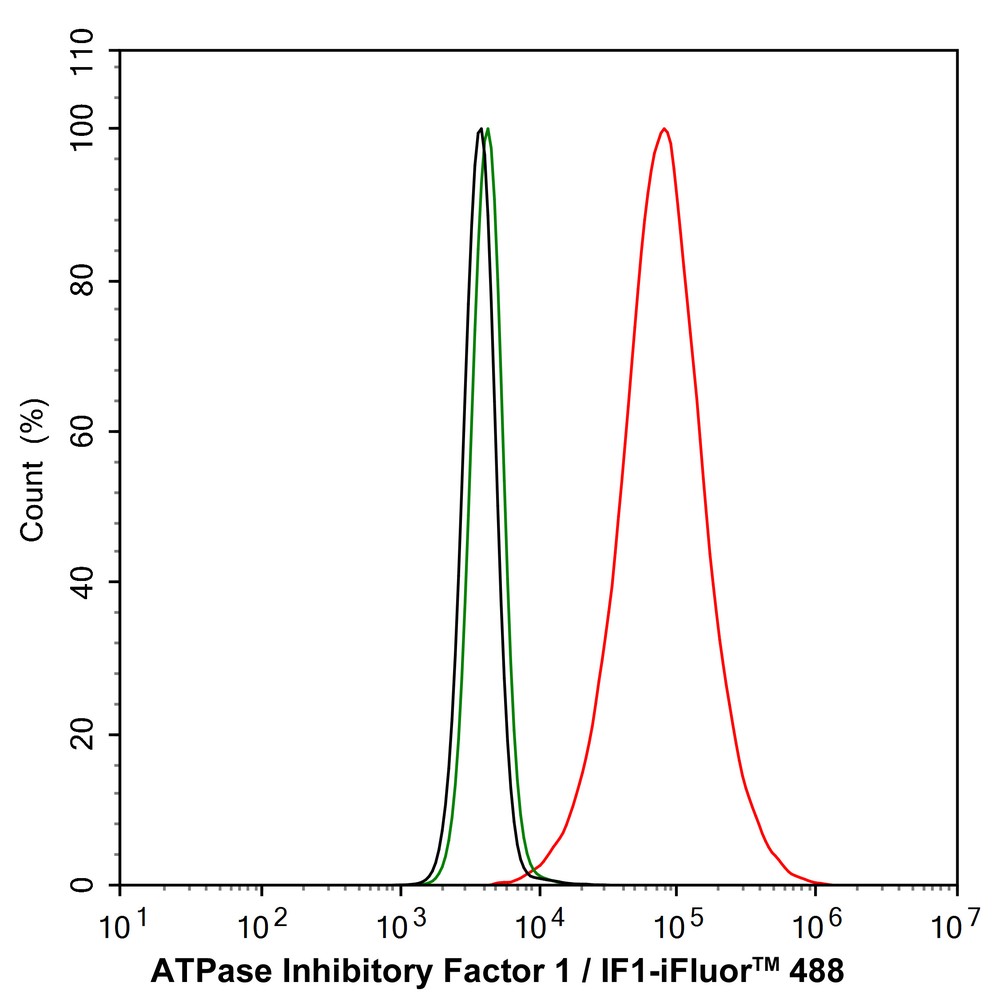

Flow cytometric analysis of HeLa cells labeling ATPase Inhibitory Factor 1 / IF1. Cells were fixed and permeabilized. Then stained with the primary antibody (HA751608, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black). |
|
Fig7:

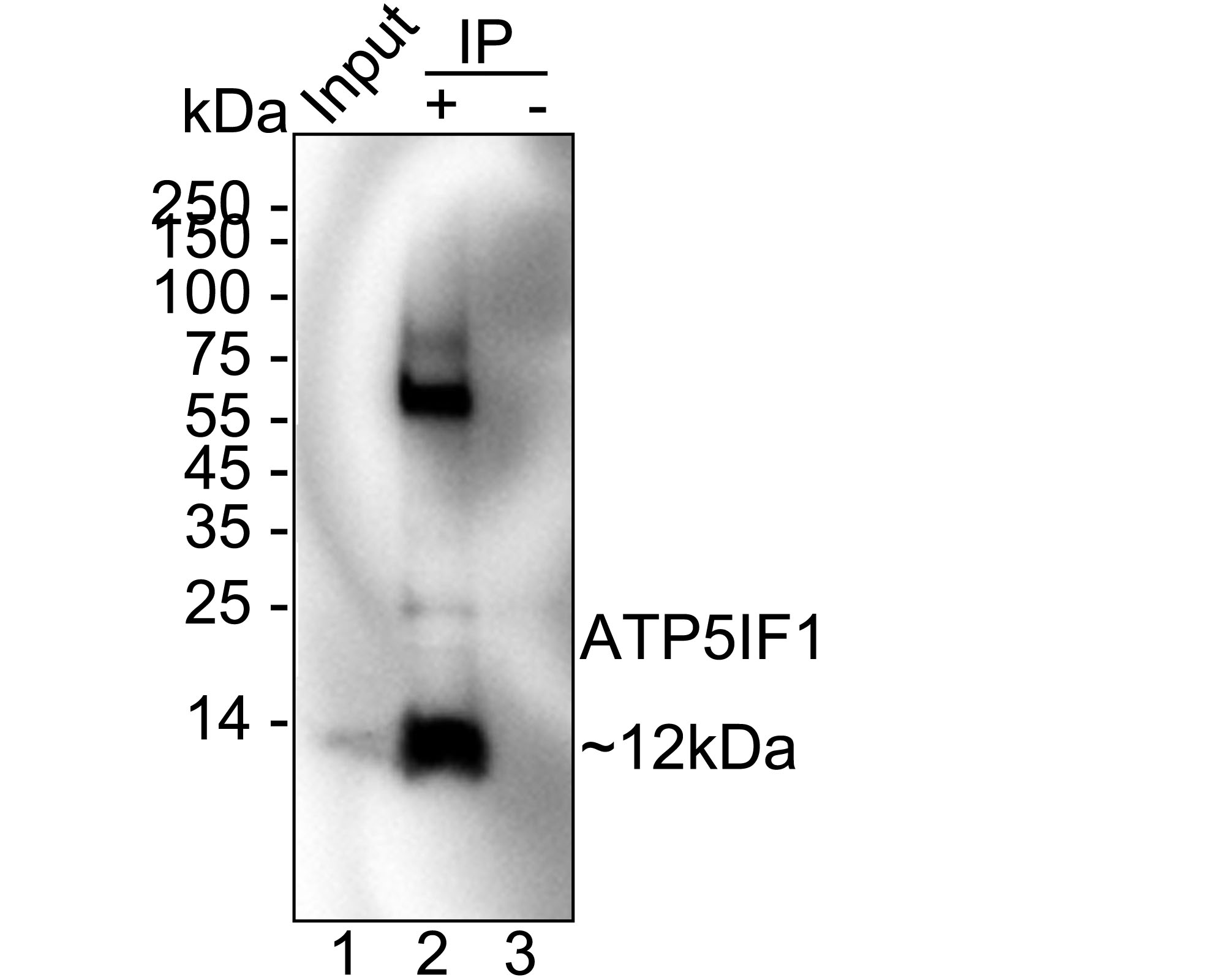

ATPase Inhibitory Factor 1 / IF1 was immunoprecipitated from 0.2 mg K-562 cell lysate with HA751608 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using HA751608 at 1/5,000 dilution. HRP Conjugated Anti-Rabbit IgG for IP Nano-secondary antibody at 1/5,000 dilution was used for 1 hour at room temperature. Lane 1: K-562 cell lysate (input) Lane 2: HA751608 IP in K-562 cell lysate Lane 3: Rabbit IgG instead of HA751608 in K-562 cell lysate Blocking/Dilution buffer: primary antibody dilution (K1803) Exposure time: 59 seconds; ECL: K1801 |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
