Cell Cycle Regulation Antibody Sampler Kit I
cat.: HAK21010
| Product Type: | Antibody Sampler Kit |
|---|---|
| Species reactivity: | Human |
| Applications: | WB, IHC-P, IF-Cell, IF-Tissue |
| Form: | Liquid |
| Storage condition: | Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles. |
| Storage buffer: | 1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide. |
| Uniprot #: | SwissProt: P24941 Human | P97377 Mouse | Q63699 Rat | P11802 Human | P30285 Mouse | P35426 Rat | Q00534 Human | P20248 Human | P51943 Mouse | P24385 Human | P25322 Mouse | P39948 Rat | P24864 Human | Q61457 Mouse | O96020 Human | Q9Z238 Mouse Entrez Gene: 362485 Rat Unigene: 13094 Rat |
Images
|
Fig1:

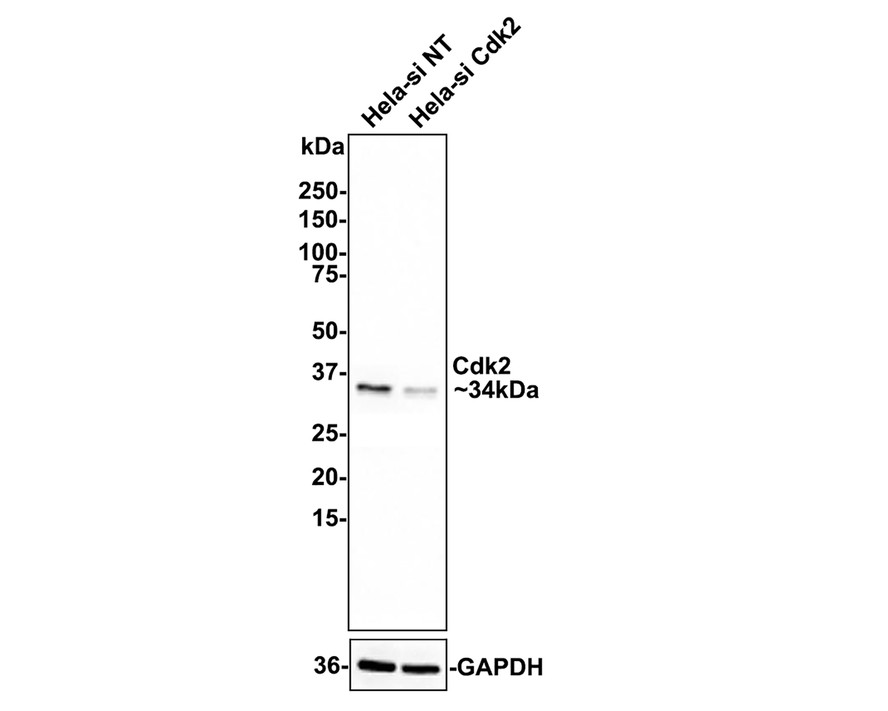

Western blot analysis of Cdk2 on different lysates with Rabbit anti-Cdk2 antibody (ET1602-6) at 1/1,000 dilution. Lane 1: Hela-si NT cell lysate Lane 2: Hela-si Cdk2 cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 34 kDa Observed band size: 34 kDa Exposure time: 1 minute; ECL: merk 4-20% SDS-PAGE gel. ET1602-6 was shown to specifically react with Cdk2 in Hela-si NT cells. Weakened band was observed when Hela-si Cdk2 sample was tested. Hela-si NT and Hela-si Cdk2 samples were subjected to SDS-PAGE. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM in TBST for 1 hour at room temperature. The primary antibody (ET1602-6, 1/1,000) and Loading control antibody (Rabbit anti-GAPDH, ET1601-4, 1/10,000) were used in 5% BSA at room temperature for 2 hours. Goat Anti-rabbit IgG-HRP Secondary Antibody (HA1001) at 1:100,000 dilution was used for 1 hour at room temperature. |
|
Fig2:

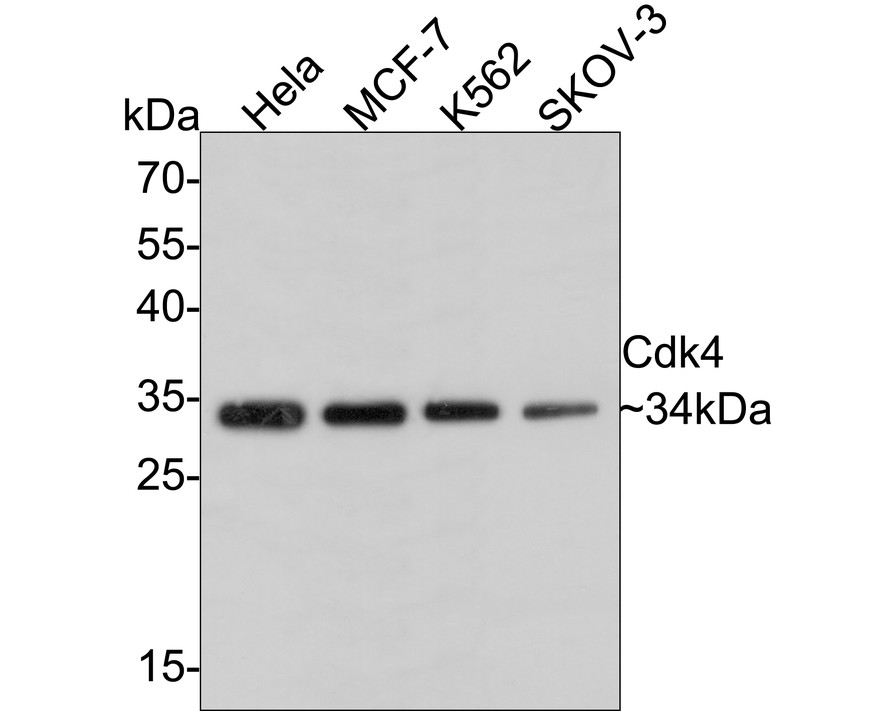

Western blot analysis of Cdk4 on different lysates with Rabbit anti-Cdk4 antibody (ET1612-23) at 1/1,000 dilution. Lane 1: Hela cell lysate Lane 2: MCF-7 cell lysate Lane 3: K562 cell lysate Lane 4: SKOV-3 cell lysate Lysates/proteins at 10 µg/Lane. Predicted band size: 34 kDa Observed band size: 34 kDa Exposure time: 2 minutes; 12% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1612-23) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature. |
|
Fig3:

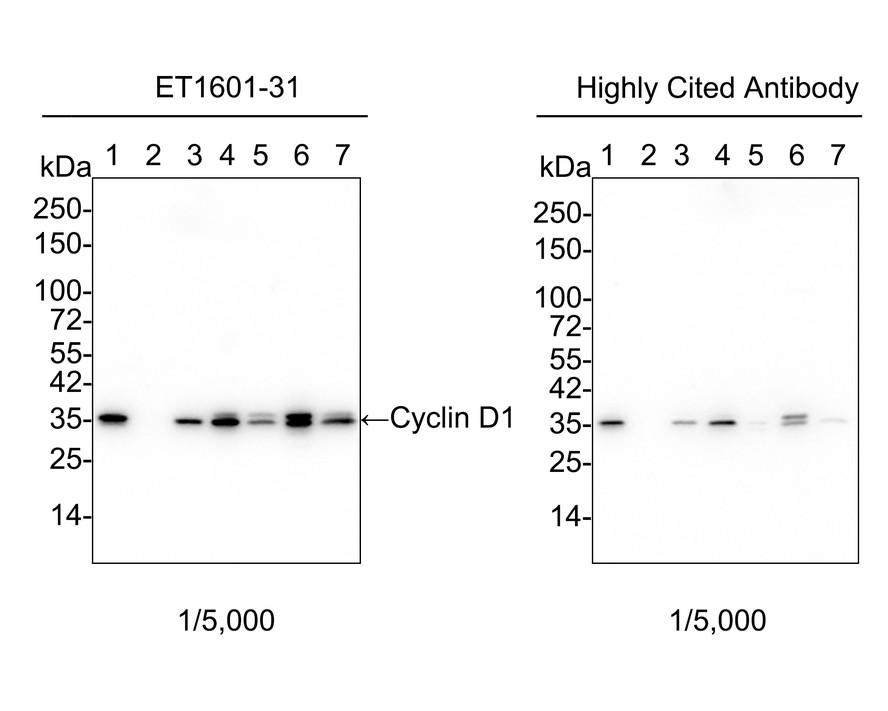

Western blot analysis of Cyclin D1 on different lysates with Rabbit anti-Cyclin D1 antibody (ET1601-31) at 1/5,000 dilution and competitor's antibody at 1/5,000 dilution. Lane 1: MCF7 cell lysate Lane 2: K-562 cell lysate (negative) Lane 3: A431 cell lysate Lane 4: Neuro-2a cell lysate Lane 5: NIH/3T3 cell lysate Lane 6: C6 cell lysate Lane 7: SH-SY5Y cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 34 kDa Observed band size: 35 kDa Exposure time: 20 seconds; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1601-31) at 1/5,000 dilution and competitor's antibody at 1/5,000 dilution were used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. |
|
Fig4:

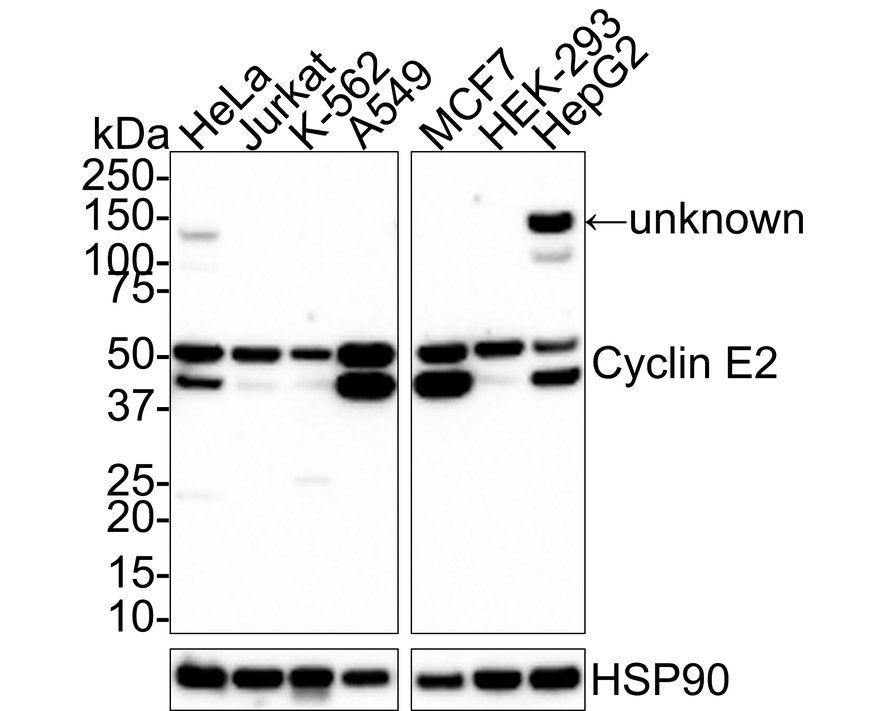

Western blot analysis of Cyclin E2 on different lysates with Mouse anti-Cyclin E2 antibody (M0407-15) at 1/1,000 dilution. Lane 1: HeLa cell lysate Lane 2: Jurkat cell lysate Lane 3: K-562 cell lysate Lane 4: A549 cell lysate Lane 5: MCF7 cell lysate Lane 6: HEK-293 cell lysate Lane 7: HepG2 cell lysate Lysates/proteins at 20 µg/Lane. Predicted band size: 47 kDa Observed band size: 51/47 kDa Exposure time: 2 minutes; 4-20% SDS-PAGE gel. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (M0407-15) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1:150,000 dilution was used for 1 hour at room temperature. |
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
