Ferroptosis Antibody Sampler Kit
cat.: HAK21028
Product Type: Antibody Sampler Kit
Species reactivity: Human
Applications: WB
Form: Liquid
Storage condition: Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.
Storage buffer: 1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Uniprot #: SwissProt: P36969 Human | O70325 Mouse | P36970 Rat | Q13772 Human | Q14145 Human | Q9Z2X8 Mouse | P57790 Rat | Q16236 Human | Q60795 Mouse | P08195 Human | Q9UPY5 Human | Q9WTR6 Mouse | P49281 Human | P02794 Human | P09528 Mouse | P19132 Rat
Entrez Gene: 27057 Mouse | 619385 Rat | 310392 Rat
Images

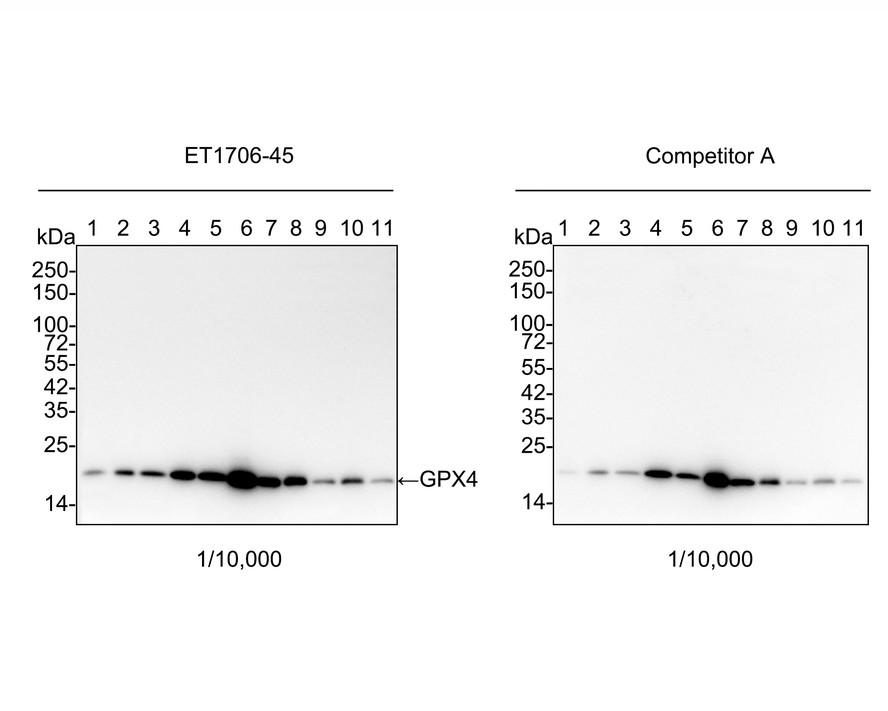

HAK21028_1.jpg Fig1: Western blot analysis of GPX4 on different lysates with Rabbit anti-GPX4 antibody (ET1706-45) at 1/10,000 dilution and competitor's antibody at 1/10,000 dilution.

Lane 1: HeLa cell lysate (20 µg/Lane)
Lane 2: A549 cell lysate (20 µg/Lane)
Lane 3: HepG2 cell lysate (20 µg/Lane)
Lane 4: U-937 cell lysate (20 µg/Lane)
Lane 5: HEK-293 cell lysate (20 µg/Lane)
Lane 6: Mouse testis tissue lysate (20 µg/Lane)
Lane 7: Rat testis tissue lysate (20 µg/Lane)
Lane 8: Mouse kidney tissue lysate (20 µg/Lane)
Lane 9: Rat kidney tissue lysate (20 µg/Lane)
Lane 10: Mouse brain tissue lysate (20 µg/Lane)
Lane 11: Rat brain tissue lysate (20 µg/Lane)

Predicted band size: 22 kDa
Observed band size: 20 kDa

Exposure time: 2 minutes;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1706-45) at 1/10,000 dilution and competitor's antibody at 1/10,000 dilution were used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:50,000 dilution was used for 1 hour at room temperature.

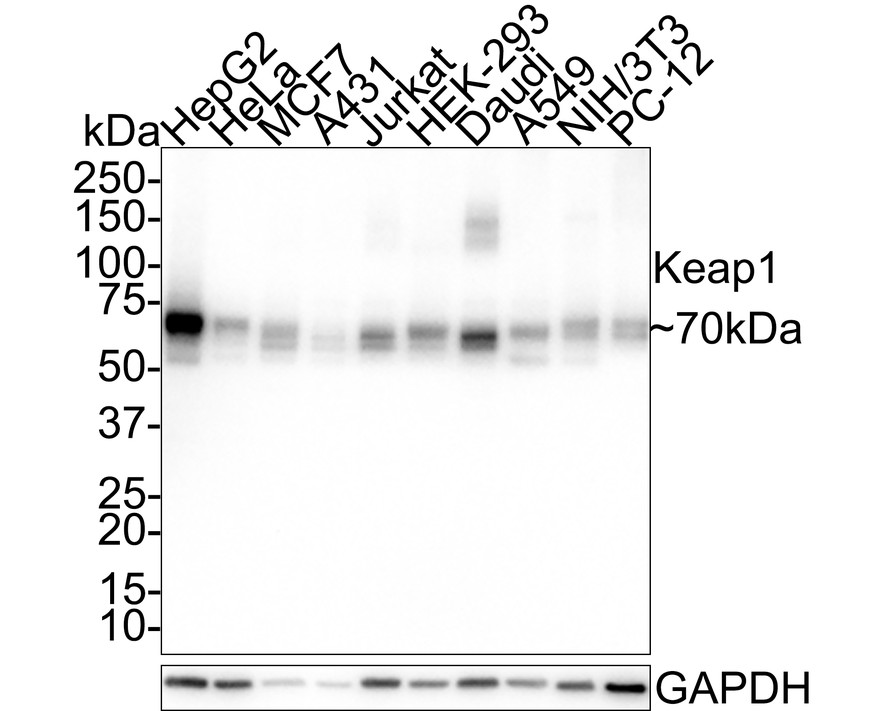

HAK21028_2.jpg Fig2: Western blot analysis of Keap1 on different lysates with Rabbit anti-Keap1 antibody (HA721525) at 1/1,000 dilution.

Lane 1: HepG2 cell lysate
Lane 2: HeLa cell lysate
Lane 3: MCF7 cell lysate
Lane 4: A431 cell lysate
Lane 5: Jurkat cell lysate
Lane 6: HEK-293 cell lysate
Lane 7: Daudi cell lysate
Lane 8: A549 cell lysate
Lane 9: NIH/3T3 cell lysate
Lane 10: PC-12 cell lysate

Lysates/proteins at 20 µg/Lane.

Predicted band size: 70 kDa
Observed band size: 70 kDa

Exposure time: 2 minutes;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721525) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:100,000 dilution was used for 1 hour at room temperature.

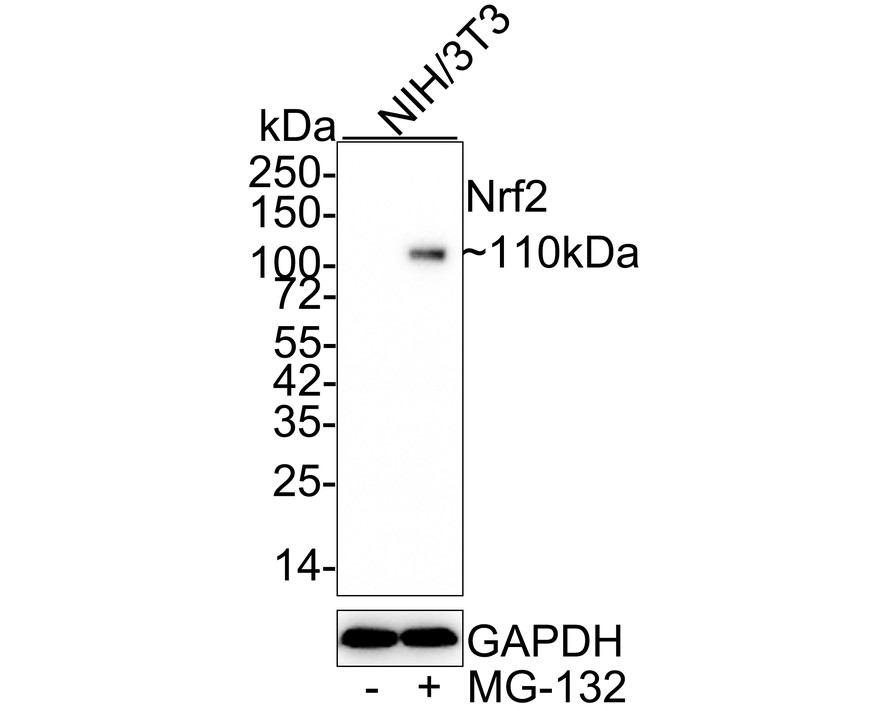

HAK21028_3.jpg Fig3: Western blot analysis of Nrf2 on different lysates with Rabbit anti-Nrf2 antibody (HA721432) at 1/1,000 dilution.

Lane 1: NIH/3T3 cell lysate
Lane 2: NIH/3T3 treated with 10μM MG-132 for 8 hours cell lysate

Lysates/proteins at 20 µg/Lane.

Predicted band size: 68 kDa
Observed band size: 110 kDa

Exposure time: 3 minutes;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721432) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

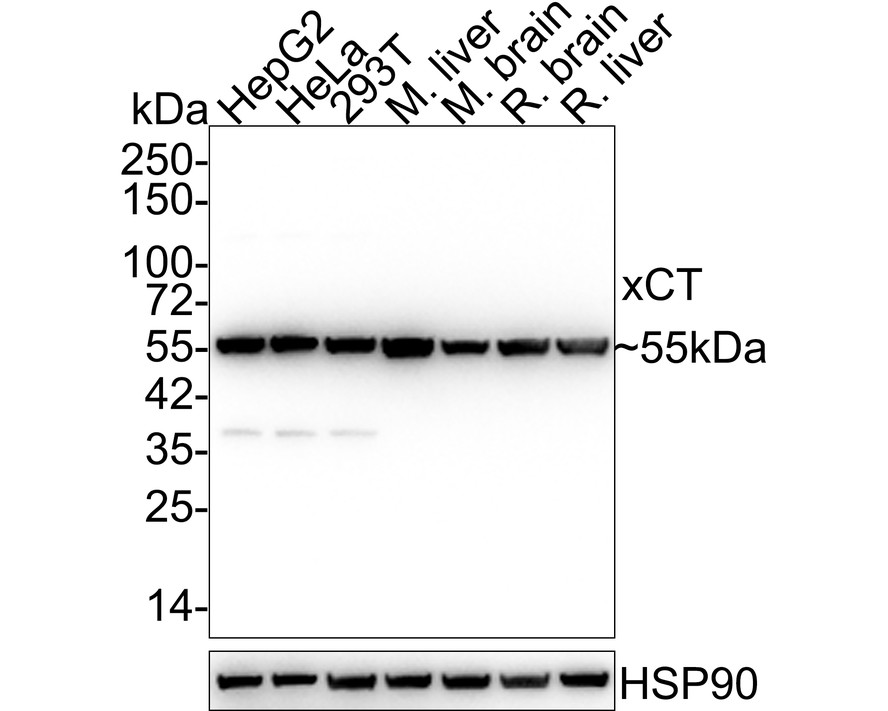

HAK21028_4.jpg Fig4: Western blot analysis of xCT on different lysates with Rabbit anti-xCT antibody (HA721868) at 1/1,000 dilution.

Lane 1: HepG2 cell lysate (20 µg/Lane)
Lane 2: HeLa cell lysate (20 µg/Lane)
Lane 3: 293T cell lysate (20 µg/Lane)
Lane 4: Mouse liver tissue lysate (40 µg/Lane)
Lane 5: Mouse brain tissue lysate (40 µg/Lane)
Lane 6: Rat brain tissue lysate (40 µg/Lane)
Lane 7: Rat liver tissue lysate (40 µg/Lane)

Predicted band size: 55 kDa
Observed band size: 55 kDa

Exposure time: 5 seconds;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721868) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
