HAK21066

Silent Synapses Antibody Sampler Kit

cat.: HAK21066

Product Type:	Antibody Sampler Kit
Species reactivity:	Human, Mouse, Rat
Applications:	WB

Form:	Liquid
Storage condition:	Store at +4℃ after thawing. Aliquot store at -20℃. Avoid repeated freeze / thaw cycles.
Storage buffer:	1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Uniprot #:	SwissProt: P42261 Human \| P23818 Mouse \| P19490 Rat \| P42261 Human \| P23818 Mouse \| P19490 Rat \| P42261 Human \| P23818 Mouse \| P19490 Rat \| P42262 Human \| P23819 Mouse \| P19491 Rat \| P78352 Human \| Q62108 Mouse \| P31016 Rat \| Q05586 Human \| P35438 Mouse \| P35439 Rat

Images

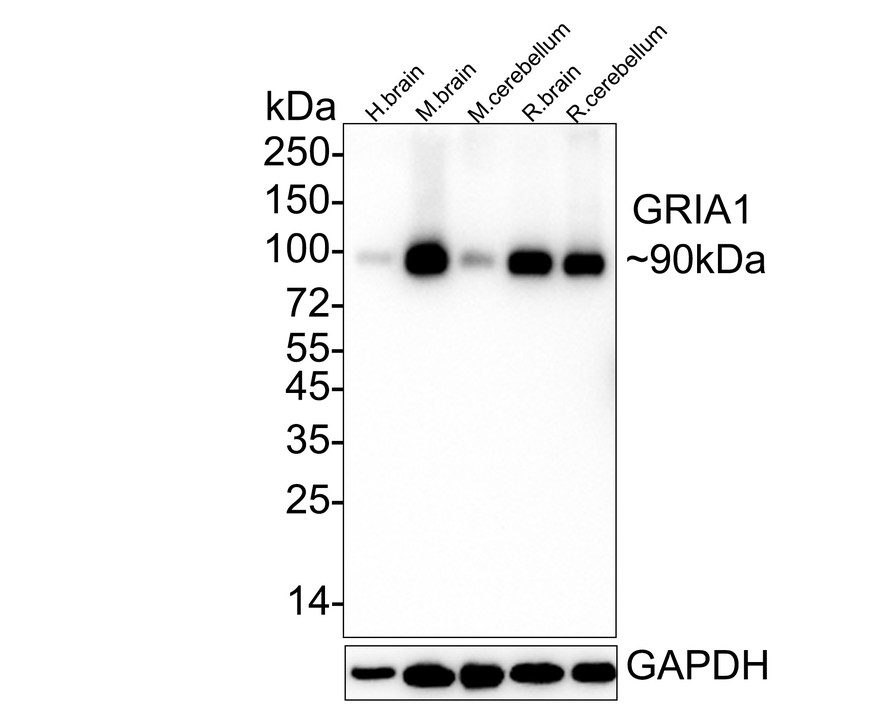

Fig1: Western blot analysis of Glutamate receptor 1 on different lysates with Rabbit anti-Glutamate receptor 1 antibody (ET1612-10) at 1/1,000 dilution.

Lane 1: Human brain tissue lysate (40 µg/Lane)
Lane 2: Mouse brain tissue lysate (40 µg/Lane)
Lane 3: Mouse cerebellum tissue lysate (40 µg/Lane)
Lane 4: Rat brain tissue lysate (40 µg/Lane)
Lane 5: Rat cerebellum tissue lysate (40 µg/Lane)

Predicted band size: 90 kDa
Observed band size: 90 kDa

Exposure time: 2 minutes
4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1612-10) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

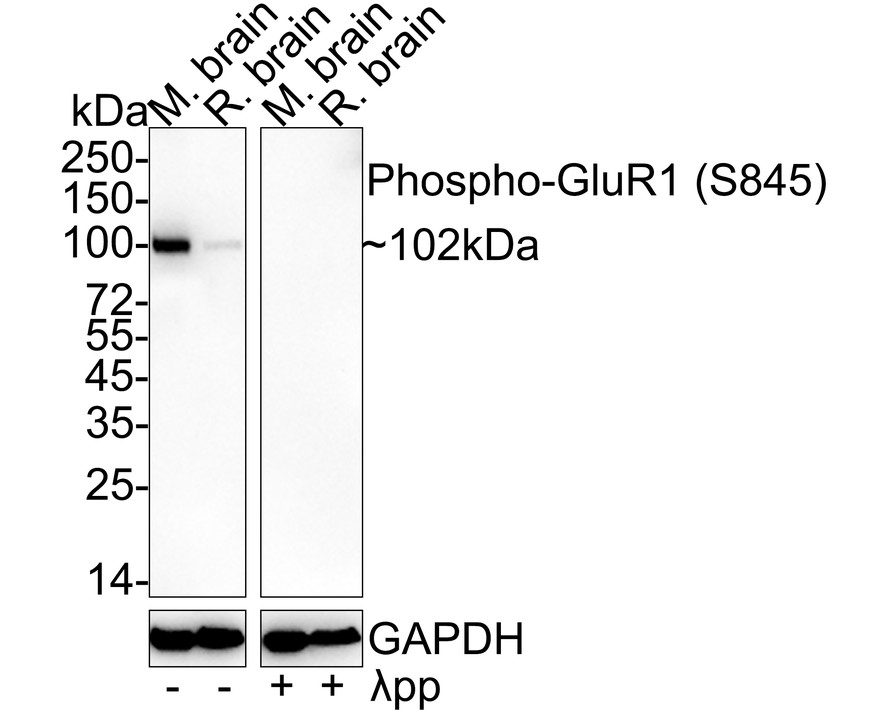

Fig2: Western blot analysis of Phospho-GluR1 (S845) on different lysates with Rabbit anti-Phospho-GluR1 (S845) antibody (ET1701-28) at 1/1,000 dilution.

Lane 1: Mouse brain tissue lysate (40 µg/Lane)
Lane 2: Rat brain tissue lysate (40 µg/Lane)
Lane 3: Mouse brain tissue lysate, the membrane treated with λpp for 1 hour (40 µg/Lane)
Lane 4: Rat brain tissue lysate, the membrane treated with λpp for 1 hour (40 µg/Lane)

Predicted band size: 102 kDa
Observed band size: 102 kDa

Exposure time: 3 minutes; ECL: K1801;
4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1701-28) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

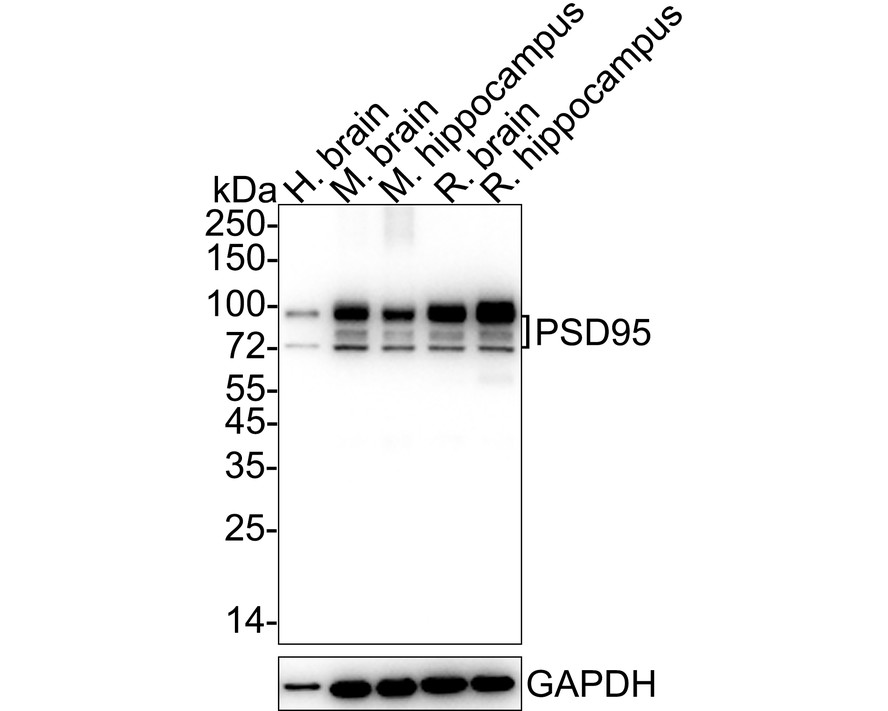

Fig3: Western blot analysis of PSD95 on different lysates with Rabbit anti-PSD95 antibody (ET1602-20) at 1/2,000 dilution.

Lane 1: Human brain tissue lysate (20 µg/Lane)
Lane 2: Mouse brain tissue lysate (20 µg/Lane)
Lane 3: Mouse hippocampus tissue lysate (20 µg/Lane)
Lane 4: Rat brain tissue lysate (20 µg/Lane)
Lane 5: Rat hippocampus tissue lysate (20 µg/Lane)

Predicted band size: 80 kDa
Observed band size: 75-100 kDa

Exposure time: 20 seconds; ECL: K1801;
4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1602-20) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

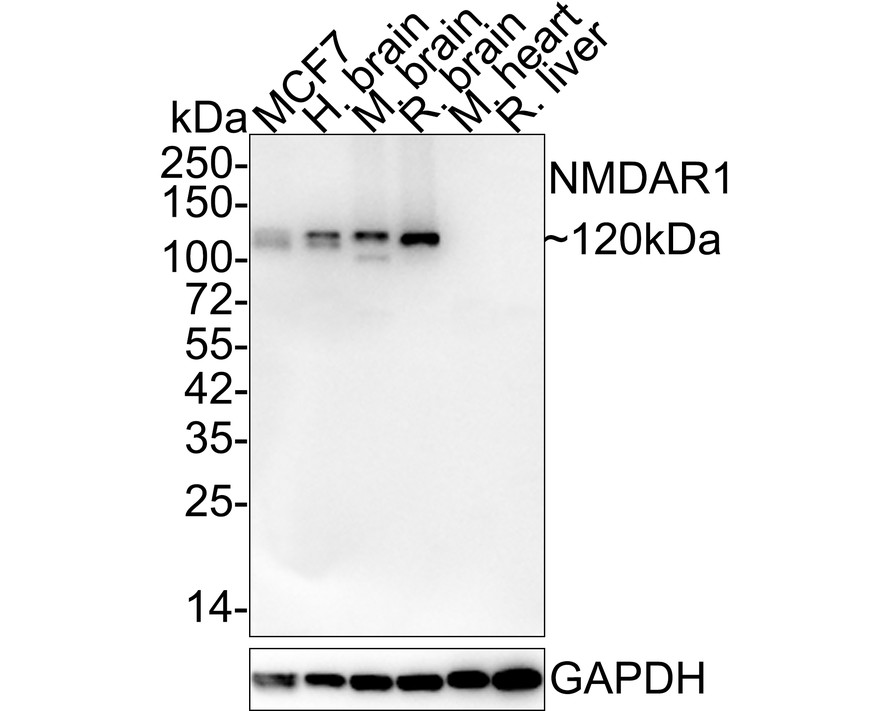

Fig4: Western blot analysis of NMDAR1 on different lysates with Rabbit anti-NMDAR1 antibody (ET1703-75) at 1/5,000 dilution.

Lane 1: MCF7 cell lysate (15 µg/Lane)
Lane 2: Human brain tissue lysate (20 µg/Lane)
Lane 3: Mouse brain tissue lysate (20 µg/Lane)
Lane 4: Rat brain tissue lysate (20 µg/Lane)
Lane 5: Mouse heart tissue lysate (negative) (20 µg/Lane)
Lane 6: Rat liver tissue lysate (negative) (20 µg/Lane)

Predicted band size: 105 kDa
Observed band size: 120 kDa

Exposure time: 1 minute 2 seconds;
4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1703-75) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

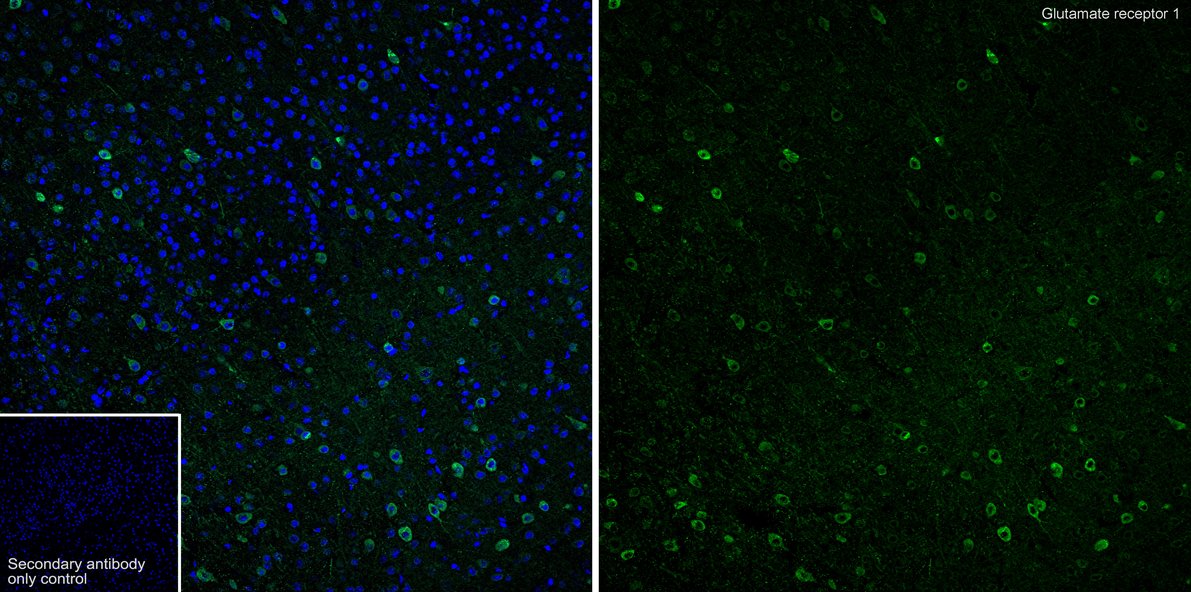

	Fig5: Immunofluorescence analysis of frozen mouse brain tissue with Rabbit anti-Glutamate receptor 1 antibody (ET1612-10) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for about 2 minutes in microwave oven. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (ET1612-10, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

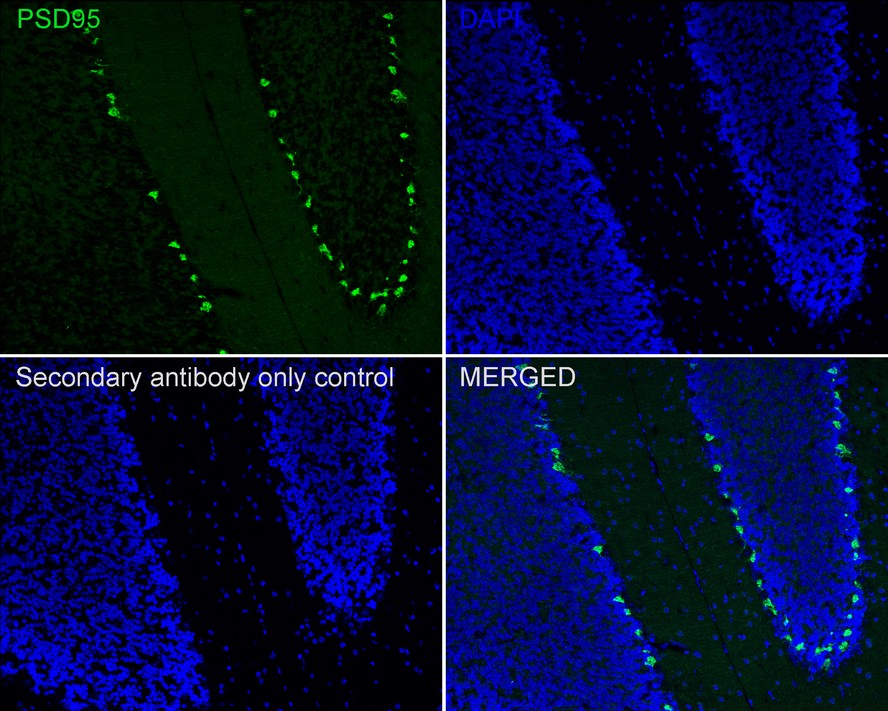

	Fig6: Immunofluorescence analysis of frozen mouse cerebellum tissue with Rabbit anti-PSD95 antibody (ET1602-20) at 1/500 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for about 2 minutes in microwave oven. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (ET1602-20, green) at 1/500 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

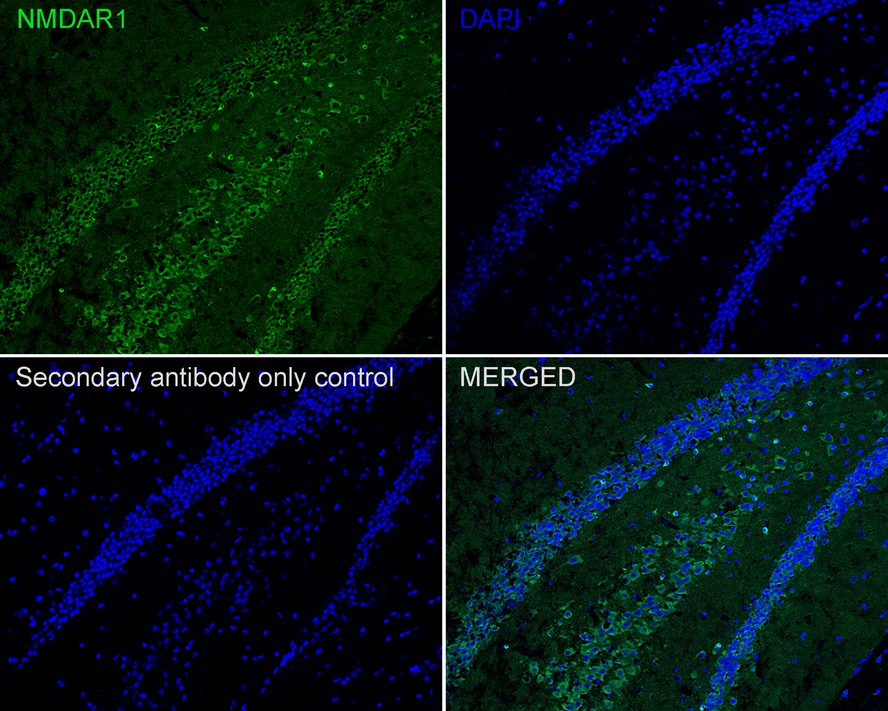

	Fig7: Immunofluorescence analysis of frozen mouse hippocampus tissue with Rabbit anti-NMDAR1 antibody (ET1703-75) at 1/200 dilution. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for about 2 minutes in microwave oven. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (ET1703-75, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

Note: All products are “FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE”.
